Bridge Record
Local Public Agency
County
Section
Structure Number
Station
Route
Marked Route
On Federal Aid Highway System
Yes
No
Year Built
Name of Feature Crossed
Built As
Total Length
Roadway Width
Sidewalk Width
Handrail Type
Type of Surface
Skew Angle
Minimum Vertical
Weight of Structural Steel
Type of Structure
Abutment Type
Pier Type
Drainage Area
Design High Water Elevation Design Year of High Water
Waterway Opening
Flood Frequency
Spans
Design
Number
Type
Length
Year
Elev.
CFS
Design Loading
Posted Load Limit
Date
Required Posting
Date Posting Removed
Date
Required Posting
Date Posting Removed
Routine Inspection
Date
By
Date
By
Date
By
Date
By
Date
By
-
-
-
-
-
-
-
-
-
-
-
-
-
Add Row
Printed 06/05/19
Page 1 of 2
BLR 06310 (Rev. 10/16/18)
Bridge Record
Local Public Agency
County
Section
Structure Number
Station
Route
Marked Route
On Federal Aid Highway System
Yes
No
Year Built
Name of Feature Crossed
Built As
Total Length
Roadway Width
Sidewalk Width
Handrail Type
Type of Surface
Skew Angle
Minimum Vertical
Weight of Structural Steel
Type of Structure
Abutment Type
Pier Type
Drainage Area
Design High Water Elevation Design Year of High Water
Waterway Opening
Flood Frequency
Spans
Design
Number
Type
Length
Year
Elev.
CFS
Design Loading
Posted Load Limit
Date
Required Posting
Date Posting Removed
Date
Required Posting
Date Posting Removed
Routine Inspection
Date
By
Date
By
Date
By
Date
By
Date
By
-
-
-
-
-
-
-
-
-
-
-
-
-
Add Row
Printed 06/05/19
Page 1 of 2
BLR 06310 (Rev. 10/16/18)
Paint
Cost
Num.
Cleaning
Painting
Year
Painted By
Gals
Kind
Paint
Labor
Coats
Method
Method
Comments
Repairs
Repair Types: Deck, Bearing, Expansion, Abutment, Approach, Pier, Stream, Slopewall or Other
Type
Description
Type
Description
Type
Description
Type
Description
Type
Description
Printed 06/05/19
Page 2 of 2
BLR 06310 (Rev. 10/16/18)

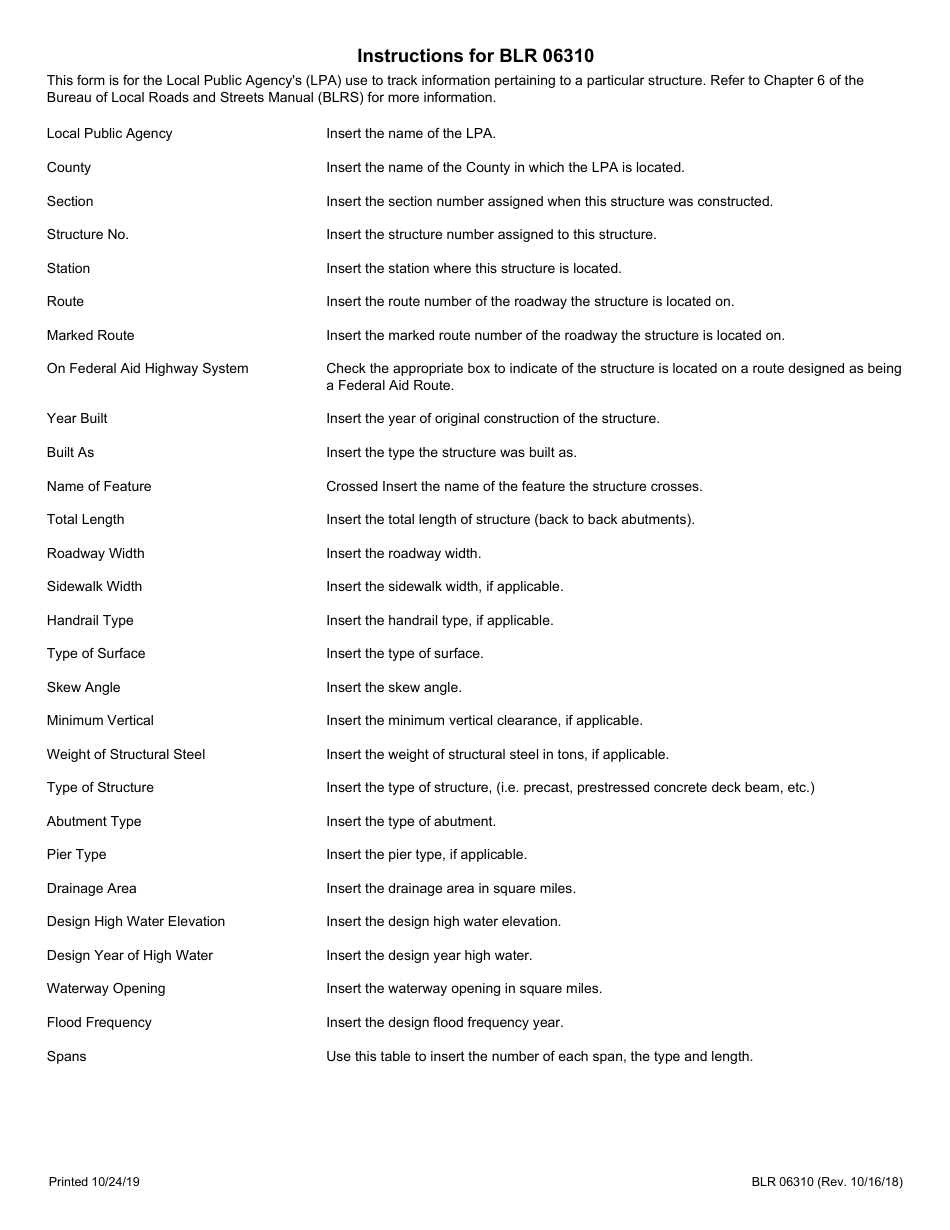

Instructions for BLR 06310
This form is for the Local Public Agency's (LPA) use to track information pertaining to a particular structure. Refer to Chapter 6 of the
Bureau of Local Roads and Streets Manual (BLRS) for more information.
Local Public Agency
Insert the name of the LPA.
County
Insert the name of the County in which the LPA is located.
Section
Insert the section number assigned when this structure was constructed.
Structure No.
Insert the structure number assigned to this structure.
Station
Insert the station where this structure is located.
Route
Insert the route number of the roadway the structure is located on.
Marked Route
Insert the marked route number of the roadway the structure is located on.
On Federal Aid Highway System
Check the appropriate box to indicate of the structure is located on a route designed as being
a Federal Aid Route.
Year Built
Insert the year of original construction of the structure.
Built As
Insert the type the structure was built as.
Name of Feature
Crossed Insert the name of the feature the structure crosses.
Total Length
Insert the total length of structure (back to back abutments).
Roadway Width
Insert the roadway width.
Sidewalk Width
Insert the sidewalk width, if applicable.
Handrail Type
Insert the handrail type, if applicable.
Type of Surface
Insert the type of surface.
Skew Angle
Insert the skew angle.
Minimum Vertical
Insert the minimum vertical clearance, if applicable.
Weight of Structural Steel
Insert the weight of structural steel in tons, if applicable.
Type of Structure
Insert the type of structure, (i.e. precast, prestressed concrete deck beam, etc.)
Abutment Type
Insert the type of abutment.
Pier Type
Insert the pier type, if applicable.
Drainage Area
Insert the drainage area in square miles.
Design High Water Elevation
Insert the design high water elevation.
Design Year of High Water
Insert the design year high water.
Waterway Opening
Insert the waterway opening in square miles.
Flood Frequency
Insert the design flood frequency year.
Spans
Use this table to insert the number of each span, the type and length.
Printed 06/05/19
BLR 06310 (Rev. 10/16/18)

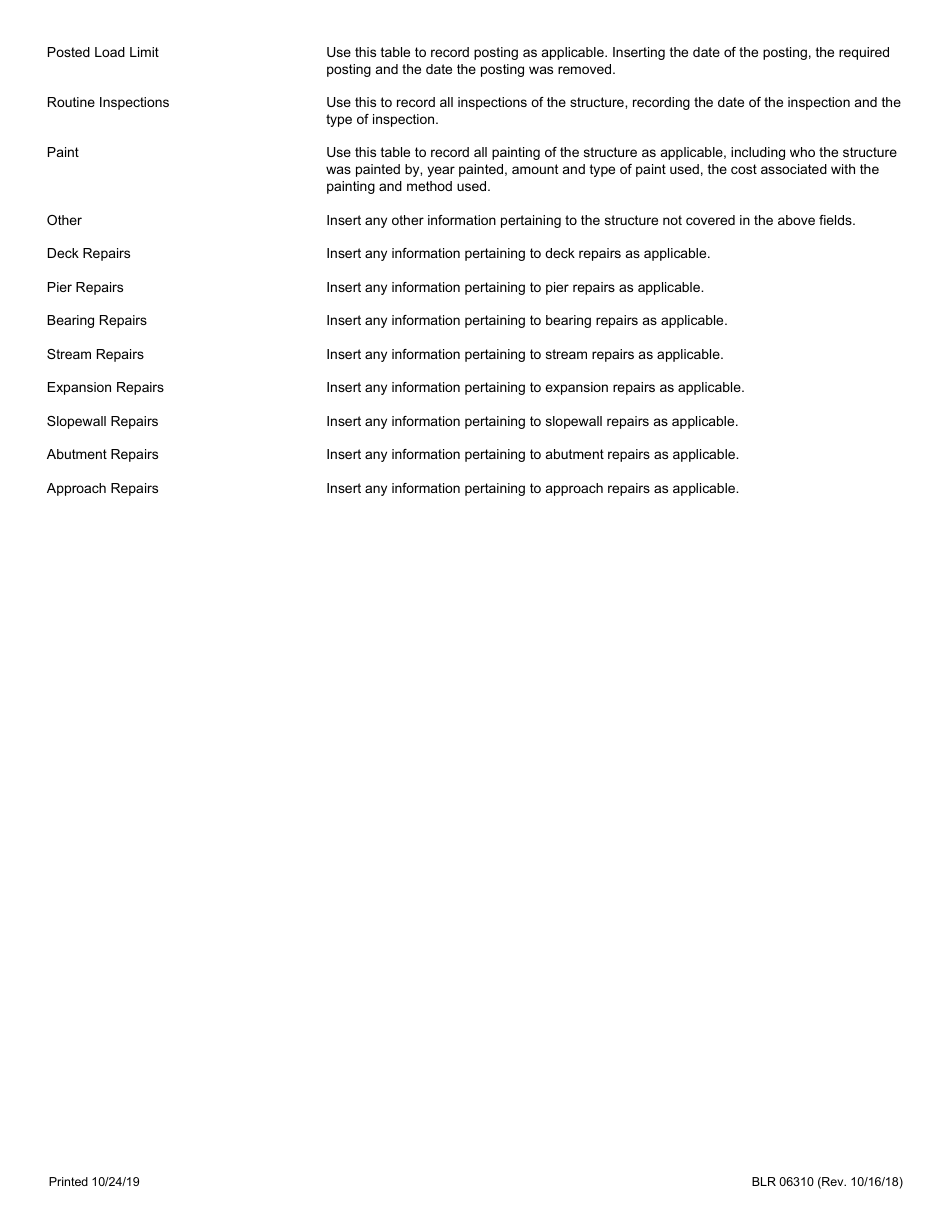

Posted Load Limit
Use this table to record posting as applicable. Inserting the date of the posting, the required
posting and the date the posting was removed.
Routine Inspections
Use this to record all inspections of the structure, recording the date of the inspection and the
type of inspection.
Paint
Use this table to record all painting of the structure as applicable, including who the structure
was painted by, year painted, amount and type of paint used, the cost associated with the
painting and method used.
Other
Insert any other information pertaining to the structure not covered in the above fields.
Deck Repairs
Insert any information pertaining to deck repairs as applicable.
Pier Repairs
Insert any information pertaining to pier repairs as applicable.
Bearing Repairs
Insert any information pertaining to bearing repairs as applicable.
Stream Repairs
Insert any information pertaining to stream repairs as applicable.
Expansion Repairs
Insert any information pertaining to expansion repairs as applicable.
Slopewall Repairs
Insert any information pertaining to slopewall repairs as applicable.
Abutment Repairs
Insert any information pertaining to abutment repairs as applicable.
Approach Repairs
Insert any information pertaining to approach repairs as applicable.
Printed 06/05/19
BLR 06310 (Rev. 10/16/18)
