APPROVAL AND REGISTRATION PROCEDURES FOR
INCINERATORS:
Before an incinerator may be constructed and operated in the State of Alabama, it must
first be approved by this Department. A unit can be approved by one of the following
methods:

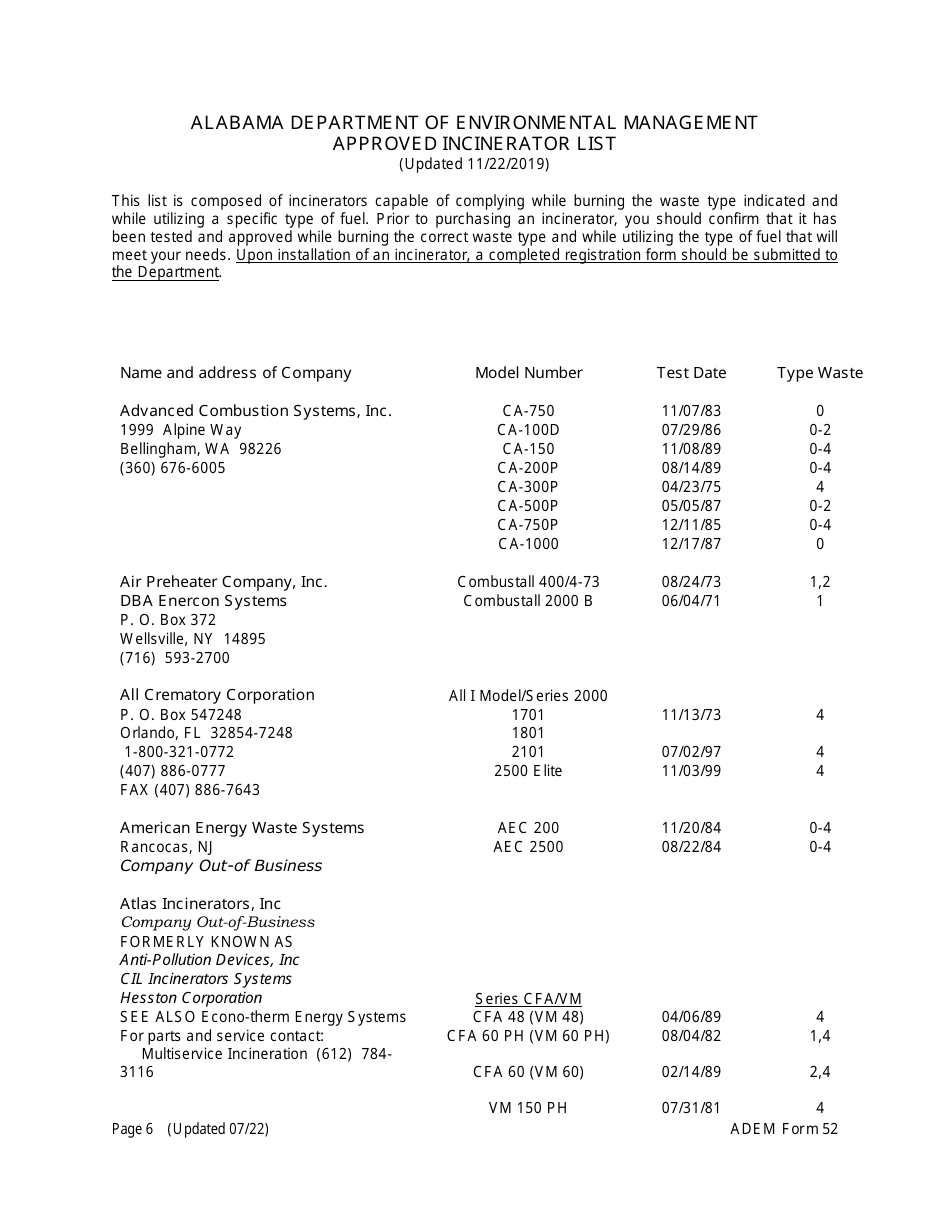

1. The incinerator model can be on the Department’s approved list (attached). By being
on this list, it has been proven that a particular model can comply with the applicable
regulations while burning a specific type of waste.
2. If the unit is not on the Department’s approved list, the manufacturer may provide the
Department with previously conducted Method 5 and 9 test results that indicate that
the unit is capable of complying with applicable regulations while burning a specific
type of waste. That unit can then be placed on the approved list and, therefore, can be
approved for installation.
3. If no Method 5 and 9 have been performed on a specific model, the unit can be
conditionally approved to be installed and operated with the understanding that
Method 5 and 9 tests will be conducted at the expense of either the manufacturer or
the facility installing the unit. If the results submitted are acceptable (indicating
compliance), the unit’s construction and operation will be approved and that model
will be placed on the Department’s approved list.
If the test does not prove
compliance, the unit must either be modified in some way in order to comply with
the emission limit and retested or it must not be operated.
Attached is the necessary registration form for incinerators required by this Department.
This form must be completed and submitted for approval to construct and operate an
incinerator.
ADDITIONAL INFORMATION CONTACT:
Air Division
Phone/Fax:
(334) 271-7861
Email:
airmail@adem.alabama.gov
Air Division Fax Number
(334) 279-3044
Attachments
APPROVAL AND REGISTRATION PROCEDURES FOR
INCINERATORS:
Before an incinerator may be constructed and operated in the State of Alabama, it must
first be approved by this Department. A unit can be approved by one of the following
methods:
1. The incinerator model can be on the Department’s approved list (attached). By being
on this list, it has been proven that a particular model can comply with the applicable
regulations while burning a specific type of waste.
2. If the unit is not on the Department’s approved list, the manufacturer may provide the
Department with previously conducted Method 5 and 9 test results that indicate that
the unit is capable of complying with applicable regulations while burning a specific
type of waste. That unit can then be placed on the approved list and, therefore, can be
approved for installation.
3. If no Method 5 and 9 have been performed on a specific model, the unit can be
conditionally approved to be installed and operated with the understanding that
Method 5 and 9 tests will be conducted at the expense of either the manufacturer or
the facility installing the unit. If the results submitted are acceptable (indicating
compliance), the unit’s construction and operation will be approved and that model
will be placed on the Department’s approved list.
If the test does not prove
compliance, the unit must either be modified in some way in order to comply with
the emission limit and retested or it must not be operated.
Attached is the necessary registration form for incinerators required by this Department.
This form must be completed and submitted for approval to construct and operate an
incinerator.
ADDITIONAL INFORMATION CONTACT:
Air Division
Phone/Fax:
(334) 271-7861
Email:
airmail@adem.alabama.gov
Air Division Fax Number
(334) 279-3044
Attachments
ALABAMA DEPARTMENT OF ENVIRONMENTAL MANAGEMENT
AIR DIVISION
P.O. BOX 301463
MONTGOMERY, AL 36130-1463
Registration Form for the Construction, Installation, or Modification of an Incinerator
FACILITY INFORMATION
Please Type or Print in Ink
(1) Name of Facility:______________________________________________________________
(2) Establishment Type (check one): _____ Agriculture
_____ Industry
_____ Medical
_____ Restaurant
_____ Store
_____ Other (specify) ___________________________
(3) Name of Incinerator Owner: ____________________________________________________
(4) Mailing Address to which Environmental Correspondence is to be Sent:
Name of Contact:_______________________________________________________________
Street Address or P.O. Box: _______________________________________________________
City: _________________________ State:_________________ Zip Code:________________
Telephone Number: (____)___________________ Email Address:_______________________
(5) Physical Address of Incinerator:
Street Address: _________________________________________________________________
City: _________________________ State:_________________ Zip Code:________________
County:_______________________
(6) Name of Person Submitting Registration Form:_____________________________________
Title:_____________________________ Telephone Number: (____)_____________________
Signature:______________________________________ Date:__________________________
(7) Check one:
_____ Existing Incinerator
Date Installed: ___________________
_____ New Incinerator
Date to be Installed: ______________
(8) Incinerator Manufacturer Information:
Name of Incinerator Manufacturer:__________________________________________________
Incinerator Model/Number:________________________________________________________
Name of Local Representative:_____________________________________________________
Street Address or P.O. Box: _______________________________________________________
City: _________________________ State:_________________ Zip Code:________________
Telephone Number: (____)_______________ Website/Email: ___________________________
Page 2 (Updated 08/21)
ADEM Form 52

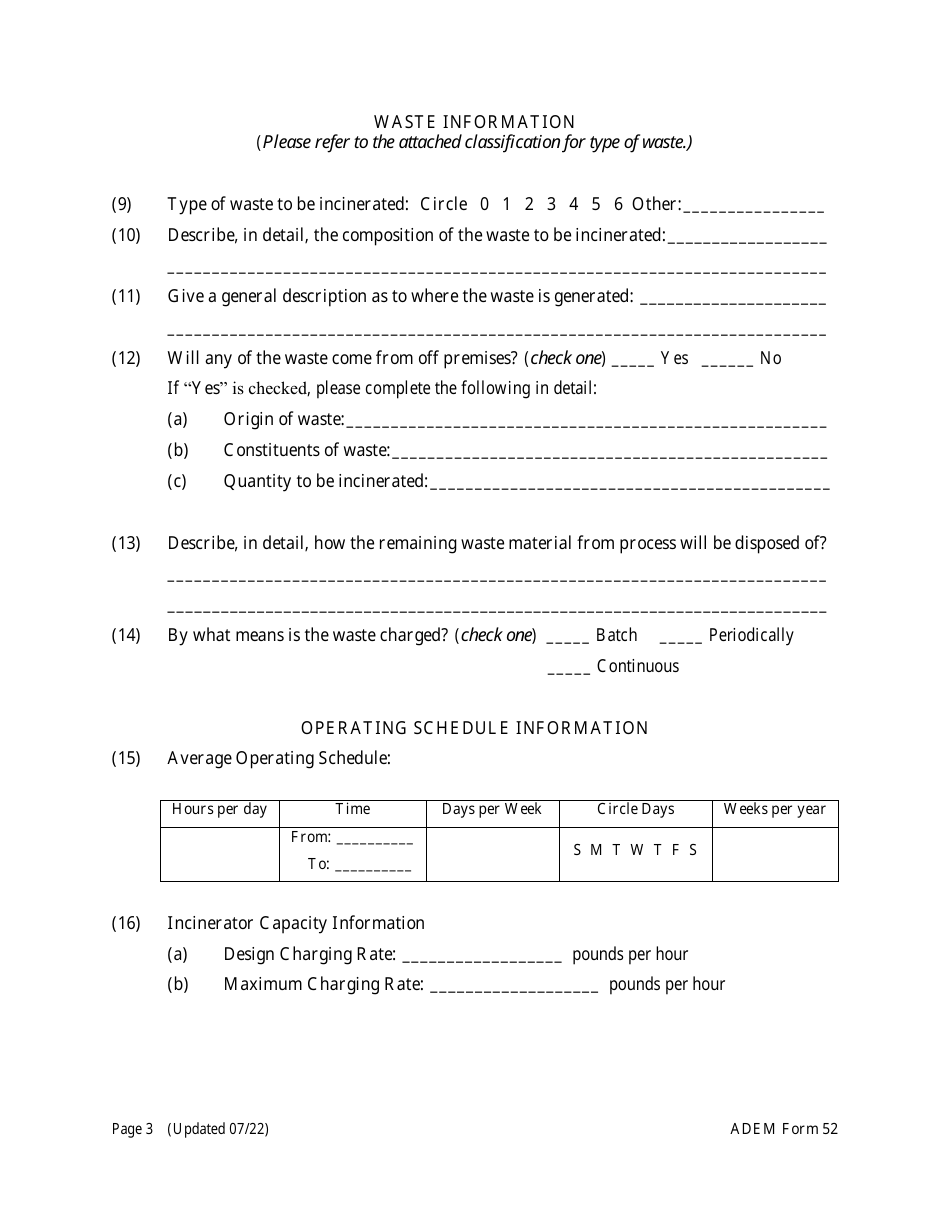

WASTE INFORMATION
(Please refer to the attached classification for type of waste.)
(9)
Type of waste to be incinerated: Circle 0 1 2 3 4 5 6 Other:________________
(10)
Describe, in detail, the composition of the waste to be incinerated:__________________
__________________________________________________________________________
(11)
Give a general description as to where the waste is generated: _____________________
__________________________________________________________________________
(12)
Will any of the waste come from off premises? (check one) _____ Yes ______ No
If “Yes” is checked, please complete the following in detail:
(a)
Origin of waste:______________________________________________________
(b)
Constituents of waste:_________________________________________________
(c)
Quantity to be incinerated:_____________________________________________
(13)
Describe, in detail, how the remaining waste material from process will be disposed of?
__________________________________________________________________________
__________________________________________________________________________
(14)
By what means is the waste charged? (check one) _____ Batch
_____ Periodically
_____ Continuous
OPERATING SCHEDULE INFORMATION
(15)
Average Operating Schedule:
Hours per day
Time
Days per Week
Circle Days
Weeks per year
From: __________
S M T W T F S
To: __________
(16)
Incinerator Capacity Information
(a)
Design Charging Rate: __________________ pounds per hour
(b)
Maximum Charging Rate: ___________________ pounds per hour
Page 3 (Updated 08/21)
ADEM Form 52

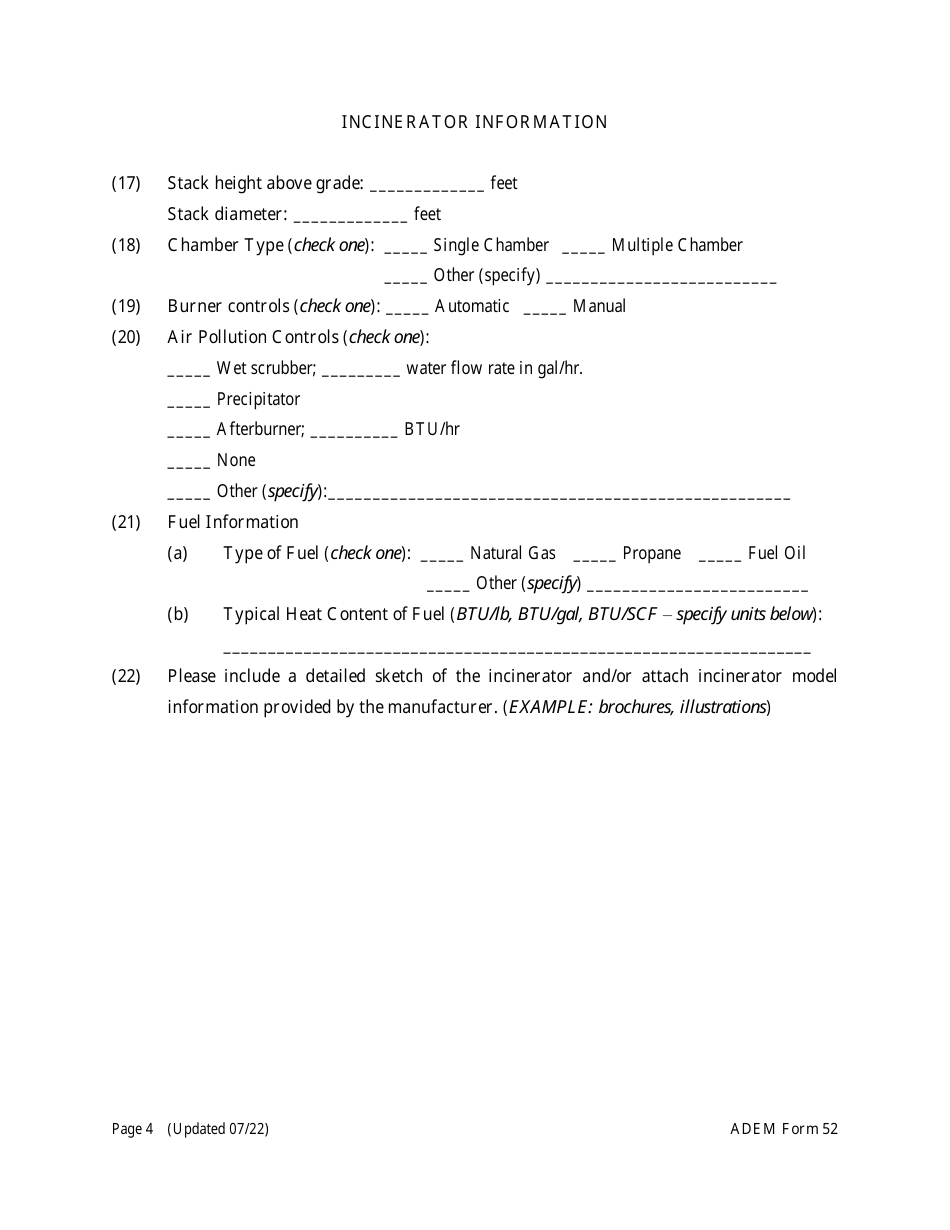

INCINERATOR INFORMATION
(17)
Stack height above grade: _____________ feet
Stack diameter: _____________ feet
(18)
Chamber Type (check one): _____ Single Chamber _____ Multiple Chamber
_____ Other (specify) __________________________
(19)
Burner controls (check one): _____ Automatic _____ Manual
(20)
Air Pollution Controls (check one):
_____ Wet scrubber; _________ water flow rate in gal/hr.
_____ Precipitator
_____ Afterburner; __________ BTU/hr
_____ None
_____ Other (specify):____________________________________________________
(21)
Fuel Information
(a)
Type of Fuel (check one): _____ Natural Gas _____ Propane _____ Fuel Oil
_____ Other (specify) _________________________
Typical Heat Content of Fuel (BTU/lb, BTU/gal, BTU/SCF – specify units below):
(b)
__________________________________________________________________
(22)
Please include a detailed sketch of the incinerator and/or attach incinerator model
information provided by the manufacturer. (EXAMPLE: brochures, illustrations)
Page 4 (Updated 08/21)
ADEM Form 52

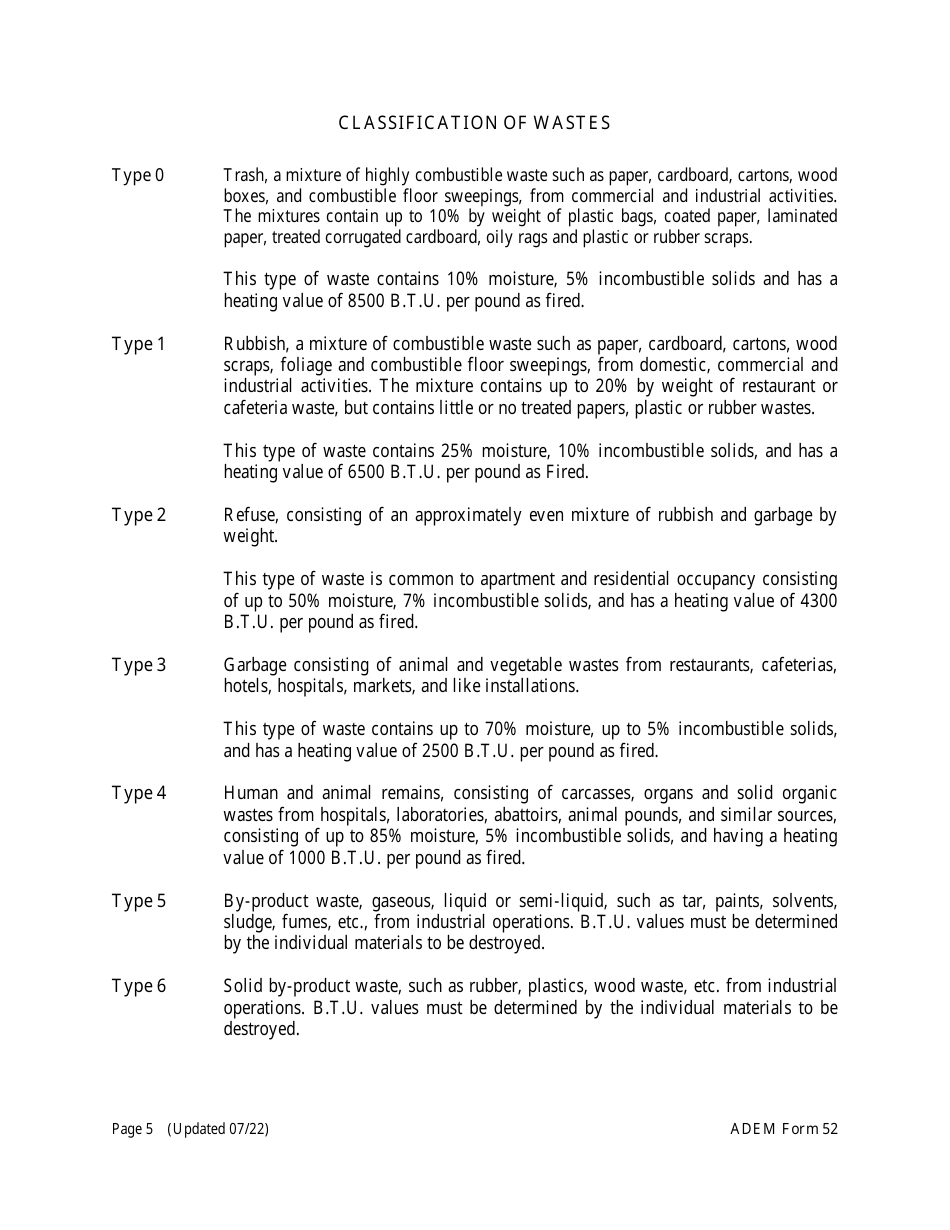

CLASSIFICATION OF WASTES
Type 0
Trash, a mixture of highly combustible waste such as paper, cardboard, cartons, wood
boxes, and combustible floor sweepings, from commercial and industrial activities.
The mixtures contain up to 10% by weight of plastic bags, coated paper, laminated
paper, treated corrugated cardboard, oily rags and plastic or rubber scraps.
This type of waste contains 10% moisture, 5% incombustible solids and has a
heating value of 8500 B.T.U. per pound as fired.
Type 1
Rubbish, a mixture of combustible waste such as paper, cardboard, cartons, wood
scraps, foliage and combustible floor sweepings, from domestic, commercial and
industrial activities. The mixture contains up to 20% by weight of restaurant or
cafeteria waste, but contains little or no treated papers, plastic or rubber wastes.
This type of waste contains 25% moisture, 10% incombustible solids, and has a
heating value of 6500 B.T.U. per pound as Fired.
Type 2
Refuse, consisting of an approximately even mixture of rubbish and garbage by
weight.
This type of waste is common to apartment and residential occupancy consisting
of up to 50% moisture, 7% incombustible solids, and has a heating value of 4300
B.T.U. per pound as fired.
Type 3
Garbage consisting of animal and vegetable wastes from restaurants, cafeterias,
hotels, hospitals, markets, and like installations.
This type of waste contains up to 70% moisture, up to 5% incombustible solids,
and has a heating value of 2500 B.T.U. per pound as fired.
Type 4
Human and animal remains, consisting of carcasses, organs and solid organic
wastes from hospitals, laboratories, abattoirs, animal pounds, and similar sources,
consisting of up to 85% moisture, 5% incombustible solids, and having a heating
value of 1000 B.T.U. per pound as fired.
Type 5
By-product waste, gaseous, liquid or semi-liquid, such as tar, paints, solvents,
sludge, fumes, etc., from industrial operations. B.T.U. values must be determined
by the individual materials to be destroyed.
Type 6
Solid by-product waste, such as rubber, plastics, wood waste, etc. from industrial
operations. B.T.U. values must be determined by the individual materials to be
destroyed.
Page 5 (Updated 08/21)
ADEM Form 52
Page of 13
