SLUDGE ANNUAL AGRONOMIC LOADING RATE WORKSHEET
(To be completed prior to each application)
Permit No: _______________
Field____________________
Crop
Calendar Year
*Yield Goal
Site _____________________
Total crop nitrogen requirement
1.
(From the Plant Nutrient Element Management of Agricultural Soils in South Carolina by
Clemson University 2007)
lb/acre
1
(not to exceed 240 lbs/acre)
Nitrogen provided from other sources either added to or mineralized in the soil
2.
Nitrogen contributions from previous years activities
a.
N from previous legume crop
1.
(Clemson University 2007 Guide- Part IV.2.a ”….When a non-legume crop follows a legume crop,
lb/acre
the nitrogen fertilizer recommendation is reduced by 25 pounds nitrogen per acre…..”)
Estimate of mineralized organic N from previous sludge applications
2.
(Calculating Mineralized Organic Nitrogen from Previous Sludge Application Worksheet)
lb/acre
Estimate of available residual N from historical manure applications
3.
(Manure Application Supplemental Worksheet.)
lb/acre
Sum of (a.1. + a.2. + a.3.)
2a
lb/acre
(Use greater of 2b or 2c below)
Nitrogen contributions from current year’s activities
b.
Estimate of available N from current manure application
1.
(Manure Application Supplemental Worksheet.)
lb/acre
N from chemical fertilizers
2.
lb/acre
N from other sources (e.g. food processing waste)
3.
lb/acre
PAN from current calendar year’s sludge application (if applicable)
4.
__________________
lb/acre
Sum of (b.1. + b.2. + b.3. + b.4.)
2b
lb/acre
(OR)
Current Available Nitrogen in Soil (from soil test results)
c.
2c
________________
lb/acre

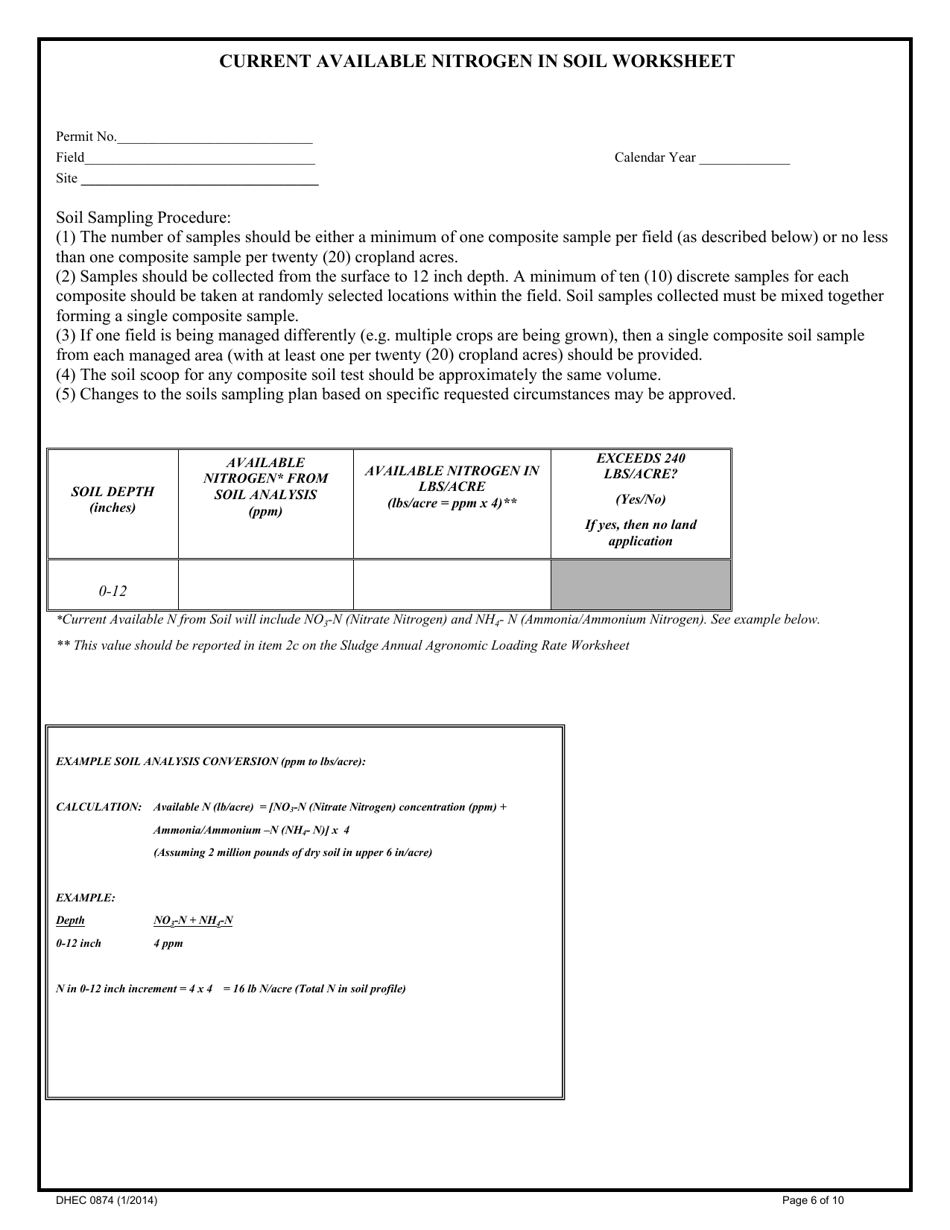

(Current Available Nitrogen in Soil Worksheet).
If current available nitrogen in soil is greater than 240 lbs PAN/acre, then no land application can occur.)
Plant available nitrogen from other sources [2a + (Greater of 2b or 2c)]
2
lb/acre
Adjusted crop nitrogen requirement (Subtract 2 from 1)
3.
3
lb/acre
Total plant available nitrogen (PAN) from sludge (based on sludge analysis)
4.
(______k
x ______ NH
N lb/ton) +______ NO
-N lb/ton +
vol (Vol. Factor Table)
3-
3
lb/ton
____ k
x (_____TKN lb/ton – _____ NH
-N lb/ton) =
4
PAN
min (Min. Factor Table)
3
Calculate the agronomic loading rate for sludge application (Divide 3 by 4
5.
)
5
dry tons/acre
Calculate amount of sludge to be applied
6.
___________ lbs PAN/ton
x ____________dry tons/acre
(not to exceed 240 lbs PAN/acre)
(item 4)
(item 5) = ____________ lbs PAN/acre
dry tons/acre (item 5)
% solids x 100
=
wet tons/acre
wet tons/acre
x
2,000 lb/ton
8.5 lbs/gallon
=
gallons/acre
6
wet tons/acre or
gallons/acre
*
See Application Requirements to Meet Agronomic Rate on following page.
DHEC 0874 (1/2014)
Page 1 of 10
SLUDGE ANNUAL AGRONOMIC LOADING RATE WORKSHEET
(To be completed prior to each application)
Permit No: _______________
Field____________________
Crop
Calendar Year
*Yield Goal
Site _____________________
Total crop nitrogen requirement
1.
(From the Plant Nutrient Element Management of Agricultural Soils in South Carolina by
Clemson University 2007)
lb/acre
1
(not to exceed 240 lbs/acre)
Nitrogen provided from other sources either added to or mineralized in the soil
2.
Nitrogen contributions from previous years activities
a.
N from previous legume crop
1.
(Clemson University 2007 Guide- Part IV.2.a ”….When a non-legume crop follows a legume crop,
lb/acre
the nitrogen fertilizer recommendation is reduced by 25 pounds nitrogen per acre…..”)
Estimate of mineralized organic N from previous sludge applications
2.
(Calculating Mineralized Organic Nitrogen from Previous Sludge Application Worksheet)
lb/acre
Estimate of available residual N from historical manure applications
3.
(Manure Application Supplemental Worksheet.)
lb/acre
Sum of (a.1. + a.2. + a.3.)
2a
lb/acre
(Use greater of 2b or 2c below)
Nitrogen contributions from current year’s activities
b.
Estimate of available N from current manure application
1.
(Manure Application Supplemental Worksheet.)
lb/acre
N from chemical fertilizers
2.
lb/acre
N from other sources (e.g. food processing waste)
3.
lb/acre
PAN from current calendar year’s sludge application (if applicable)
4.
__________________
lb/acre
Sum of (b.1. + b.2. + b.3. + b.4.)
2b
lb/acre
(OR)
Current Available Nitrogen in Soil (from soil test results)
c.
2c
________________
lb/acre
(Current Available Nitrogen in Soil Worksheet).
If current available nitrogen in soil is greater than 240 lbs PAN/acre, then no land application can occur.)
Plant available nitrogen from other sources [2a + (Greater of 2b or 2c)]
2
lb/acre
Adjusted crop nitrogen requirement (Subtract 2 from 1)
3.
3
lb/acre
Total plant available nitrogen (PAN) from sludge (based on sludge analysis)
4.
(______k
x ______ NH
N lb/ton) +______ NO
-N lb/ton +
vol (Vol. Factor Table)
3-
3
lb/ton
____ k
x (_____TKN lb/ton – _____ NH
-N lb/ton) =
4
PAN
min (Min. Factor Table)
3
Calculate the agronomic loading rate for sludge application (Divide 3 by 4
5.
)
5
dry tons/acre
Calculate amount of sludge to be applied
6.
___________ lbs PAN/ton
x ____________dry tons/acre
(not to exceed 240 lbs PAN/acre)
(item 4)
(item 5) = ____________ lbs PAN/acre
dry tons/acre (item 5)
% solids x 100
=
wet tons/acre
wet tons/acre
x
2,000 lb/ton
8.5 lbs/gallon
=
gallons/acre
6
wet tons/acre or
gallons/acre
*
See Application Requirements to Meet Agronomic Rate on following page.
DHEC 0874 (1/2014)
Page 1 of 10
Application Requirements to Meet Agronomic Rate
1. The timing of sludge application should be relevant to the time when selected crops will uptake
nitrogen.
2. Splitting applications of the total allowable loading (from worksheet) should be performed consistent
with typical crop management practices.
3. Crop removal (e.g., hay harvesting, yield goal) shall be integral to site management.
This document and associated attachments were prepared under my direction or supervision:
Print Name:_________________________________________________________ Title:__________________________
Signature:___________________________________________________________Date:__________________________
DHEC 0874 (1/2014)
Page 2 of 10

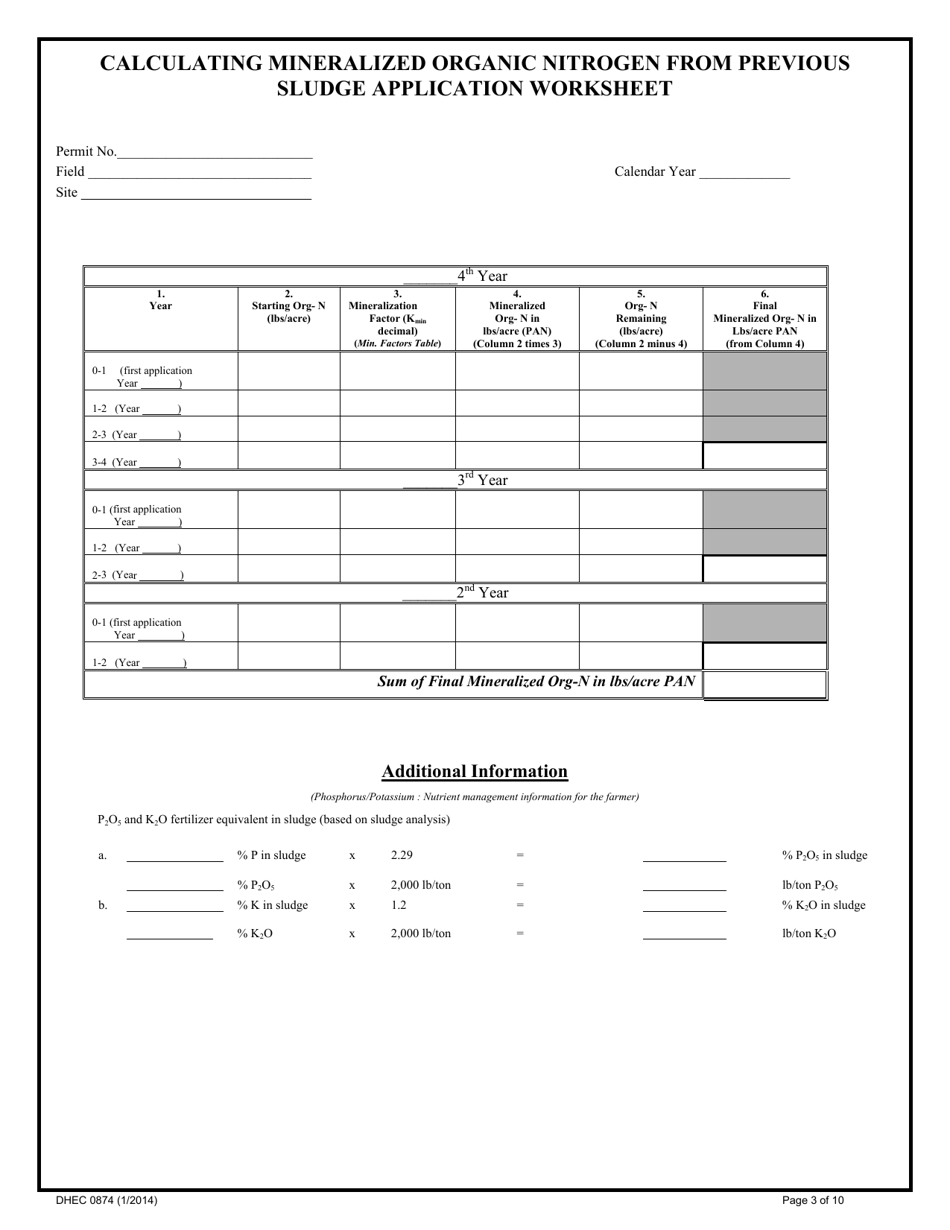

CALCULATING MINERALIZED ORGANIC NITROGEN FROM PREVIOUS
SLUDGE APPLICATION WORKSHEET
Permit No.____________________________
Field ________________________________
Calendar Year _____________
Site _________________________________
th
_______4
Year
1.
2.
3.
4.
5.
6.
Year
Starting Org- N
Mineralization
Mineralized
Org- N
Final
(lbs/acre)
Factor (K
Org- N in
Remaining
Mineralized Org- N in
min
decimal)
lbs/acre (PAN)
(lbs/acre)
Lbs/acre PAN
(Min. Factors Table)
(Column 2 times 3)
(Column 2 minus 4)
(from Column 4)
0-1
(first application
Year
)
1-2 (Year
)
2-3 (Year
)
3-4 (Year
)
rd
_______3
Year
0-1 (first application
Year
)
1-2 (Year
)
2-3 (Year
)
nd
_______2
Year
0-1 (first application
Year
)
1-2 (Year
)
Sum of Final Mineralized Org-N in lbs/acre PAN
Additional Information
(Phosphorus/Potassium : Nutrient management information for the farmer)
P
O
and K
O fertilizer equivalent in sludge (based on sludge analysis)
2
5
2
a.
% P in sludge
x
2.29
=
% P
O
in sludge
2
5
% P
O
x
2,000 lb/ton
=
lb/ton P
O
2
5
2
5
b.
% K in sludge
x
1.2
=
% K
O in sludge
2
% K
O
x
2,000 lb/ton
=
lb/ton K
O
2
2
DHEC 0874 (1/2014)
Page 3 of 10

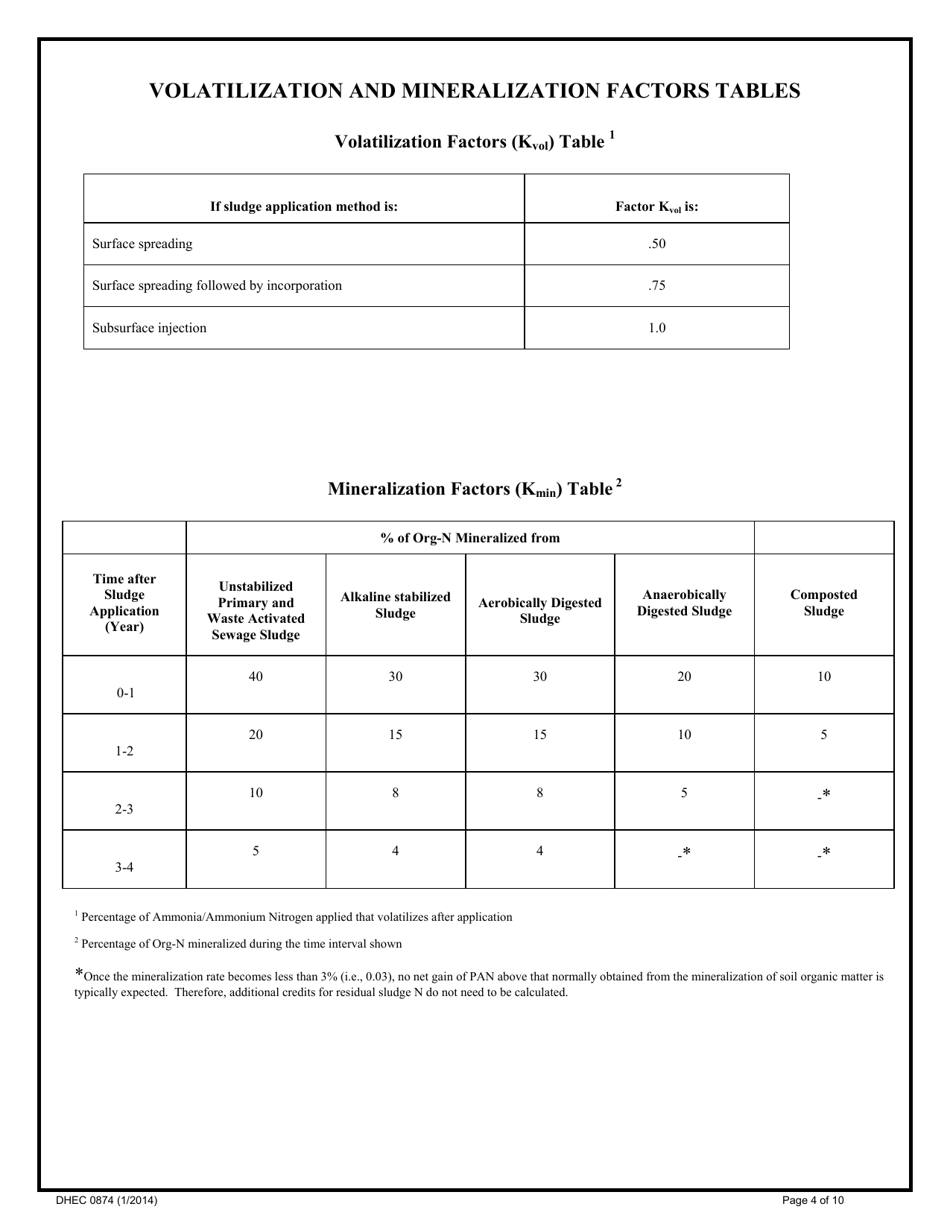

VOLATILIZATION AND MINERALIZATION FACTORS TABLES
1
Volatilization Factors (K
) Table
vol
If sludge application method is:
Factor K
is:
vol
Surface spreading
.50
Surface spreading followed by incorporation
.75
Subsurface injection
1.0
2
Mineralization Factors (K
) Table
min
% of Org-N Mineralized from
Time after
Unstabilized
Sludge
Anaerobically
Composted
Alkaline stabilized
Primary and
Aerobically Digested
Application
Digested Sludge
Sludge
Sludge
Waste Activated
Sludge
(Year)
Sewage Sludge
40
30
30
20
10
0-1
20
15
15
10
5
1-2
10
8
8
5
*
-
2-3
5
4
4
*
*
-
-
3-4
1
Percentage of Ammonia/Ammonium Nitrogen applied that volatilizes after application
2
Percentage of Org-N mineralized during the time interval shown
*
Once the mineralization rate becomes less than 3% (i.e., 0.03), no net gain of PAN above that normally obtained from the mineralization of soil organic matter is
typically expected. Therefore, additional credits for residual sludge N do not need to be calculated.
DHEC 0874 (1/2014)
Page 4 of 10

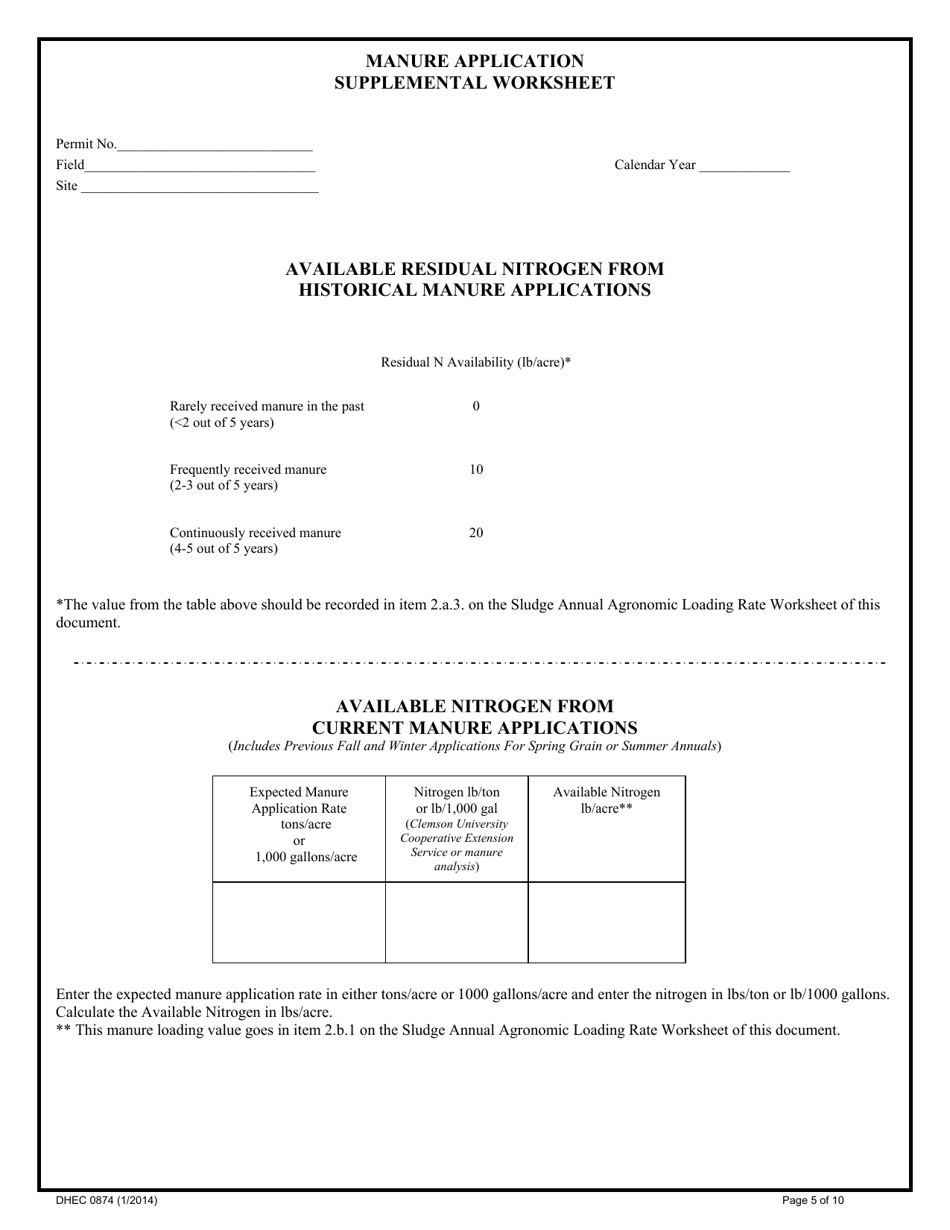

MANURE APPLICATION
SUPPLEMENTAL WORKSHEET
Permit No.____________________________
Field_________________________________
Calendar Year _____________
Site __________________________________
AVAILABLE RESIDUAL NITROGEN FROM
HISTORICAL MANURE APPLICATIONS
Residual N Availability (lb/acre)*
Rarely received manure in the past
0
(<2 out of 5 years)
Frequently received manure
10
(2-3 out of 5 years)
Continuously received manure
20
(4-5 out of 5 years)
*The value from the table above should be recorded in item 2.a.3. on the Sludge Annual Agronomic Loading Rate Worksheet of this
document.
AVAILABLE NITROGEN FROM
CURRENT MANURE APPLICATIONS
(Includes Previous Fall and Winter Applications For Spring Grain or Summer Annuals)
Expected Manure
Nitrogen lb/ton
Available Nitrogen
Application Rate
or lb/1,000 gal
lb/acre**
tons/acre
(Clemson University
Cooperative Extension
or
Service or manure
1,000 gallons/acre
analysis)
Enter the expected manure application rate in either tons/acre or 1000 gallons/acre and enter the nitrogen in lbs/ton or lb/1000 gallons.
Calculate the Available Nitrogen in lbs/acre.
** This manure loading value goes in item 2.b.1 on the Sludge Annual Agronomic Loading Rate Worksheet of this document.
DHEC 0874 (1/2014)
Page 5 of 10
