Page background image
LEED v4 for Building Design and Construction: Multifamily Midrise
Project Summary and Checklist
New Construction
Summary
Date of
Application
Compliance
Path
Project
Identification
Project Address
Owner
Identification
Architect
Identification
Third Party
Third Party Provider Registration No:
Provider Name
Building Code
IBC Residential Occupancy
Type of Building
IBC Group R Occupancy (circle one): R-1. R-2. R-3. R-4
Stories and
Number of
Unit Type:
Unit Type:
Unit Type:
Unit Type:
Unit Type:
Type
Stories:
1 bed/1 bath
2 bed/1 bath
3 bed/2 bath
3 bed/3 bath
Other
Garage
Attached
Detached
Carport
None
Building Sq.
Lot Size:
Building Total Sq Ft
Area Under Roof
Total Nonroof Area:
Footage
IECC Climate
3A
Zone
LEED for Homes
Required: 40
Attempted:
Awarded (Includes mandatory credit from Water Efficiency
Credits
category):
Note: Checklist is intended for use with projects complying with the Dallas Green Construction Code for multifamily buildings following the LEED for Multifamily
midrise path. Project seeking LEED for multifamily midrise certification must be verified by a USGBC certified Green Rater in addition to the required plan reviews
and inspections performed by a City of Dallas approved Third Party Green Building Provider and an approved Third Party Energy Inspector.
All units in the building must comply with credits selected.
This checklist applies only to residential units in multifamily or mixed used buildings. Other spaces must comply with applicable commercial checklist.
Note:
• Buildings shall be designed and constructed in accordance with the Energy provisions of Dallas Energy code. Compliance with IECC must be
demonstrated separately by City of Dallas registered Third Party Energy Inspector
• Refer to LEED v4 for multifamily midrise Reference Guide
City of Dallas Green Building Program, Phase 2
Page 1
Commercial Checklist, LEED v4 Multifamily Midrise, New Construction
Revised: 03-01-17
LEED v4 for Building Design and Construction: Multifamily Midrise
Project Summary and Checklist
New Construction
Summary
Date of
Application
Compliance
Path
Project
Identification
Project Address
Owner
Identification
Architect
Identification
Third Party
Third Party Provider Registration No:
Provider Name
Building Code
IBC Residential Occupancy
Type of Building
IBC Group R Occupancy (circle one): R-1. R-2. R-3. R-4
Stories and
Number of
Unit Type:
Unit Type:
Unit Type:
Unit Type:
Unit Type:
Type
Stories:
1 bed/1 bath
2 bed/1 bath
3 bed/2 bath
3 bed/3 bath
Other
Garage
Attached
Detached
Carport
None
Building Sq.
Lot Size:
Building Total Sq Ft
Area Under Roof
Total Nonroof Area:
Footage
IECC Climate
3A
Zone
LEED for Homes
Required: 40
Attempted:
Awarded (Includes mandatory credit from Water Efficiency
Credits
category):
Note: Checklist is intended for use with projects complying with the Dallas Green Construction Code for multifamily buildings following the LEED for Multifamily
midrise path. Project seeking LEED for multifamily midrise certification must be verified by a USGBC certified Green Rater in addition to the required plan reviews
and inspections performed by a City of Dallas approved Third Party Green Building Provider and an approved Third Party Energy Inspector.
All units in the building must comply with credits selected.
This checklist applies only to residential units in multifamily or mixed used buildings. Other spaces must comply with applicable commercial checklist.
Note:
• Buildings shall be designed and constructed in accordance with the Energy provisions of Dallas Energy code. Compliance with IECC must be
demonstrated separately by City of Dallas registered Third Party Energy Inspector
• Refer to LEED v4 for multifamily midrise Reference Guide
City of Dallas Green Building Program, Phase 2
Page 1
Commercial Checklist, LEED v4 Multifamily Midrise, New Construction
Revised: 03-01-17

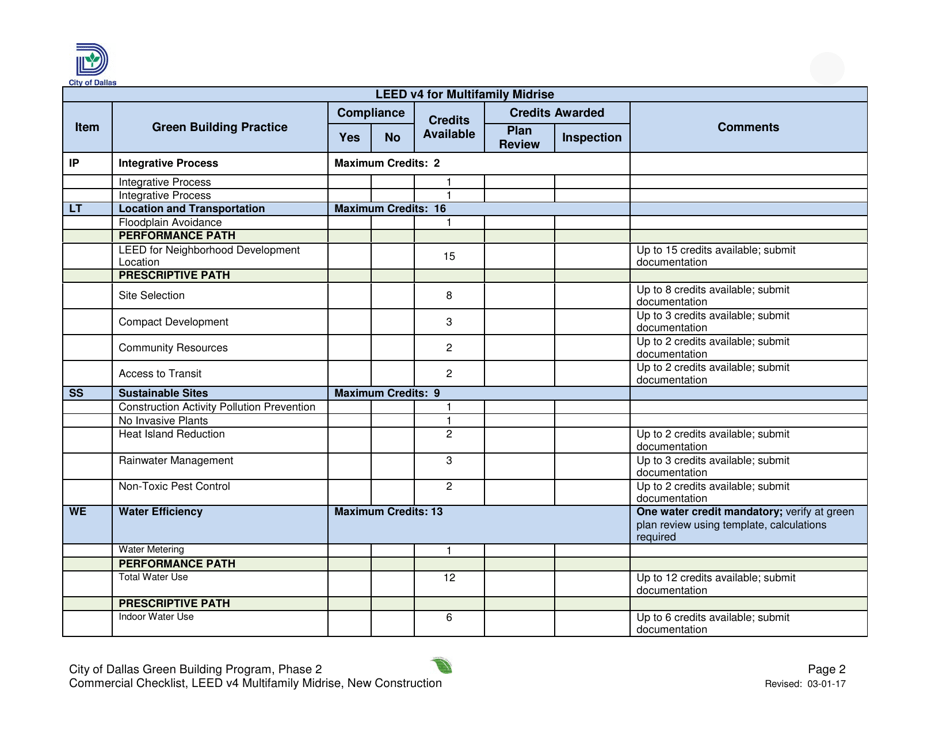

LEED v4 for Multifamily Midrise
Compliance
Credits Awarded
Credits
Item
Green Building Practice
Comments
Plan
Available
Yes
No
Inspection
Review
IP
Integrative Process
Maximum Credits: 2
Integrative Process
1
Integrative Process
1
LT
Location and Transportation
Maximum Credits: 16
Floodplain Avoidance
1
PERFORMANCE PATH
LEED for Neighborhood Development
Up to 15 credits available; submit
15
Location
documentation
PRESCRIPTIVE PATH
Up to 8 credits available; submit
Site Selection
8
documentation
Up to 3 credits available; submit
Compact Development
3
documentation
Up to 2 credits available; submit
Community Resources
2
documentation
Up to 2 credits available; submit
Access to Transit
2
documentation
SS
Sustainable Sites
Maximum Credits: 9
Construction Activity Pollution Prevention
1
No Invasive Plants
1
Heat Island Reduction
2
Up to 2 credits available; submit
documentation
Rainwater Management
3
Up to 3 credits available; submit
documentation
Non-Toxic Pest Control
2
Up to 2 credits available; submit
documentation
WE
Water Efficiency
Maximum Credits: 13
One water credit mandatory; verify at green
plan review using template, calculations
required
Water Metering
1
PERFORMANCE PATH
Total Water Use
12
Up to 12 credits available; submit
documentation
PRESCRIPTIVE PATH
Indoor Water Use
6
Up to 6 credits available; submit
documentation
City of Dallas Green Building Program, Phase 2
Page 2
Commercial Checklist, LEED v4 Multifamily Midrise, New Construction
Revised: 03-01-17

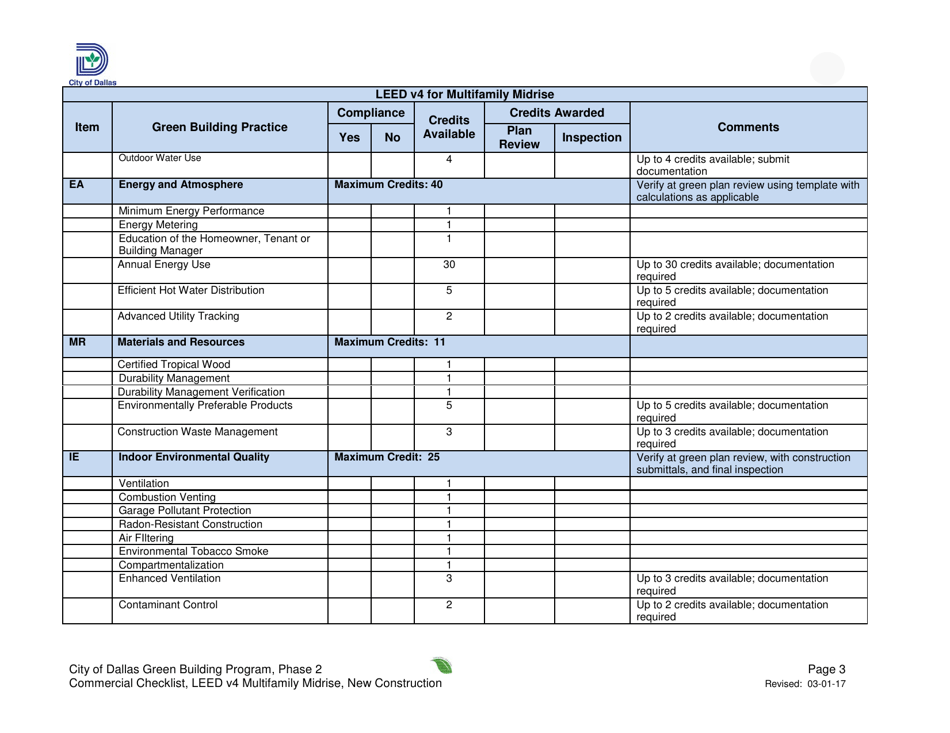

LEED v4 for Multifamily Midrise
Compliance
Credits Awarded
Credits
Item
Green Building Practice
Comments
Plan
Available
Yes
No
Inspection
Review
Outdoor Water Use
4
Up to 4 credits available; submit
documentation
EA
Energy and Atmosphere
Maximum Credits: 40
Verify at green plan review using template with
calculations as applicable
Minimum Energy Performance
1
Energy Metering
1
Education of the Homeowner, Tenant or
1
Building Manager
Annual Energy Use
30
Up to 30 credits available; documentation
required
Efficient Hot Water Distribution
5
Up to 5 credits available; documentation
required
Advanced Utility Tracking
2
Up to 2 credits available; documentation
required
MR
Materials and Resources
Maximum Credits: 11
Certified Tropical Wood
1
Durability Management
1
Durability Management Verification
1
Environmentally Preferable Products
5
Up to 5 credits available; documentation
required
Construction Waste Management
3
Up to 3 credits available; documentation
required
IE
Indoor Environmental Quality
Maximum Credit: 25
Verify at green plan review, with construction
submittals, and final inspection
Ventilation
1
Combustion Venting
1
Garage Pollutant Protection
1
Radon-Resistant Construction
1
Air FIltering
1
Environmental Tobacco Smoke
1
Compartmentalization
1
Enhanced Ventilation
3
Up to 3 credits available; documentation
required
Contaminant Control
2
Up to 2 credits available; documentation
required
City of Dallas Green Building Program, Phase 2
Page 3
Commercial Checklist, LEED v4 Multifamily Midrise, New Construction
Revised: 03-01-17

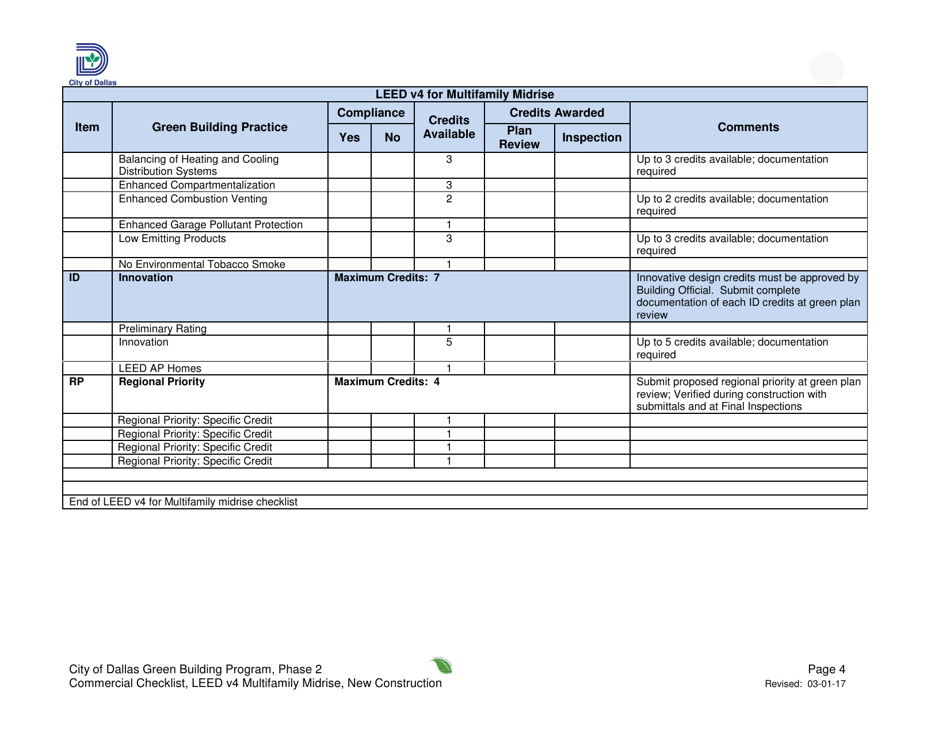

LEED v4 for Multifamily Midrise
Compliance
Credits Awarded
Credits
Item
Green Building Practice
Comments
Plan
Available
Yes
No
Inspection
Review
Balancing of Heating and Cooling
3
Up to 3 credits available; documentation
Distribution Systems
required
Enhanced Compartmentalization
3
Enhanced Combustion Venting
2
Up to 2 credits available; documentation
required
Enhanced Garage Pollutant Protection
1
Low Emitting Products
3
Up to 3 credits available; documentation
required
No Environmental Tobacco Smoke
1
ID
Innovation
Maximum Credits: 7
Innovative design credits must be approved by
Building Official. Submit complete
documentation of each ID credits at green plan
review
Preliminary Rating
1
Innovation
5
Up to 5 credits available; documentation
required
LEED AP Homes
1
RP
Regional Priority
Maximum Credits: 4
Submit proposed regional priority at green plan
review; Verified during construction with
submittals and at Final Inspections
Regional Priority: Specific Credit
1
Regional Priority: Specific Credit
1
Regional Priority: Specific Credit
1
Regional Priority: Specific Credit
1
End of LEED v4 for Multifamily midrise checklist
City of Dallas Green Building Program, Phase 2
Page 4
Commercial Checklist, LEED v4 Multifamily Midrise, New Construction
Revised: 03-01-17
Page of 4
