Texas Commission on Environmental Quality
Form OP-UA05
Process Heater/Furnace Attributes
General:
This form is used to provide a description and data pertaining to all process heaters and furnaces with potentially
applicable requirements associated with a particular regulated entity number and application. Each table number, along
with the possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule. If the
rule on the table is not potentially applicable to a process heater and furnace, then it should be left blank and need not be
submitted with the application. The following process heaters and furnaces are considered off-permit sources and do not
need to be listed:
A.
In counties affected by Title 30 Texas Administrative Code Chapter 117 (30 TAC Chapter 117), water
heaters, process heaters, and furnaces that do not fire liquid or solid fuel and have a maximum rated capacity
less than 1.0 MMBtu/hr, unless the unit is placed in service after June 9, 1993, as a functionally identical
replacement for existing units subject to the provisions 30 TAC Chapter 117, Subchapter B.
B.
In counties not affected by 30 TAC Chapter 117, process heaters and furnaces with a heat input capacity less
than or equal to 40 MMBtu/hr that do not fire liquid or solid fuel.
C.
In counties not affected by 30 TAC Chapter 117, water heaters with a heat input capacity less than
10 MMBtu/hr and do not fire liquid or solid fuel.
If the codes entered by the applicant show negative applicability to the rule or sections of the rule represented on the table,
then the applicant need not complete the remainder of the table(s) that corresponds to the rule. Further instruction as to
which questions should be answered and which questions should not be answered are located in the “Specific” section of
the instruction text. The following is included in this form:
Tables 1a
- 1c:
Title 30 Texas Administrative Code Chapter 117 (30 TAC Chapter 117), Subchapter B:
Combustion Control at Major Industrial, Commercial, and Institutional Sources in Ozone
Nonattainment Areas, for Process Heaters
Table
2:
Title 30 Texas Administrative Code Chapter 112 (30 TAC Chapter 112), Control of Air
Pollution from Sulfur Compounds

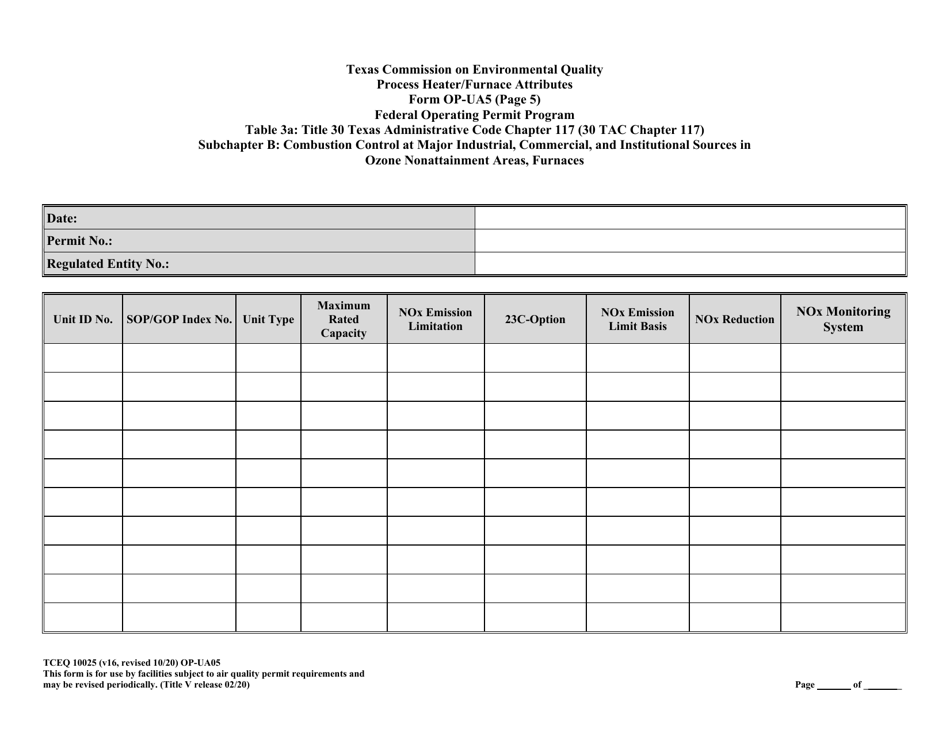

Tables 3a
- 3b:
Title 30 Texas Administrative Code Chapter 117 (30 TAC Chapter 117), Subchapter B;
Combustion Control at Major Industrial, Commercial, and Institutional Sources in Ozone
Nonattainment Areas, for Furnaces
Table
4:
Title 30 Texas Administrative Code Chapter 111 (30 TAC Chapter 111), Subchapter A,
Division 2: Incineration

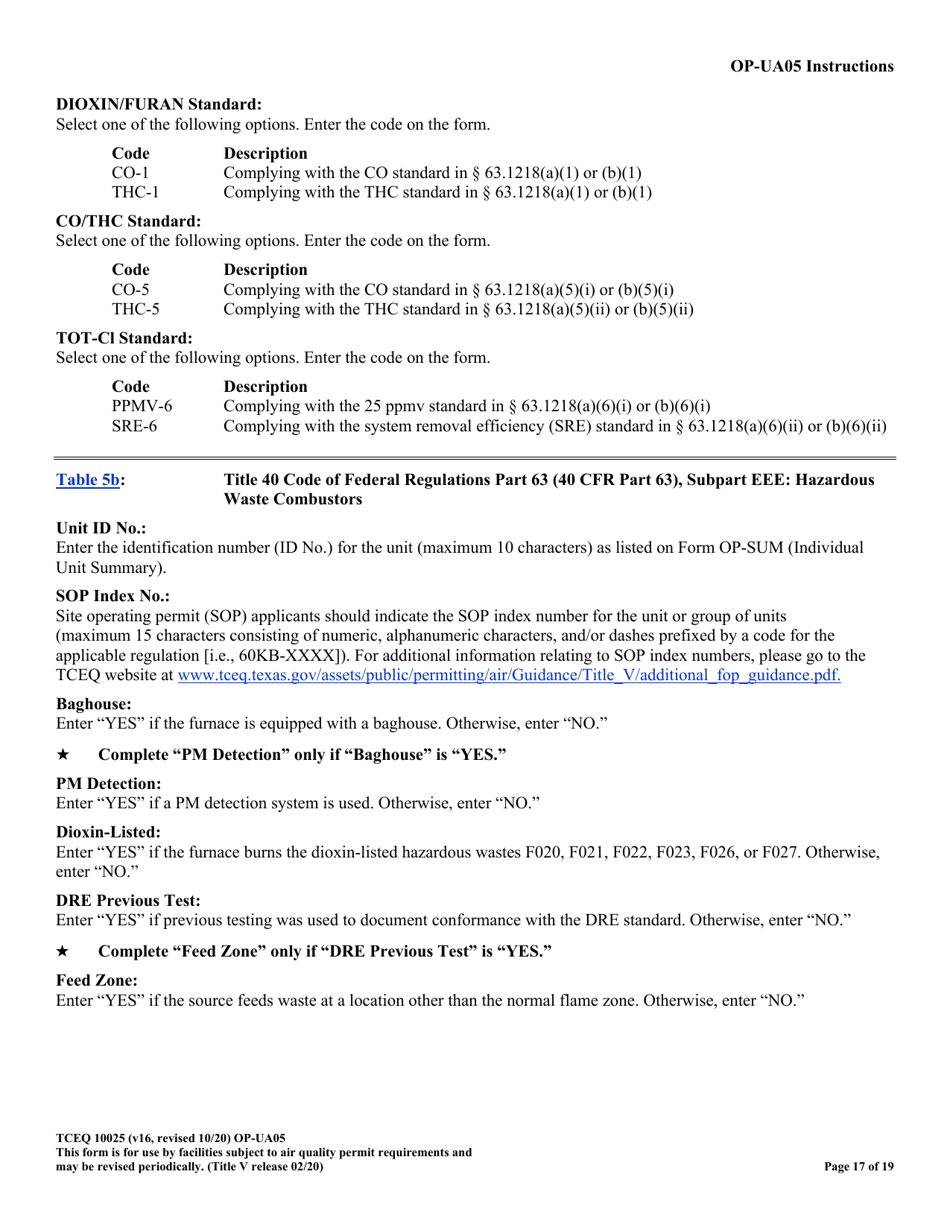

Tables 5a
- 5b:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart EEE: Hazardous
Waste Combustors

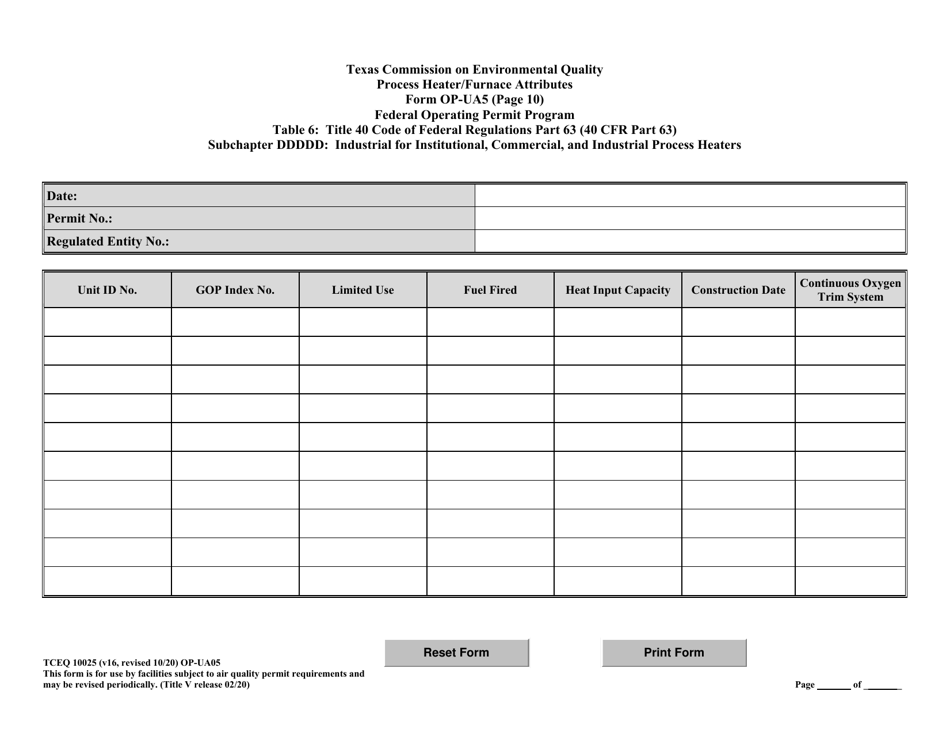

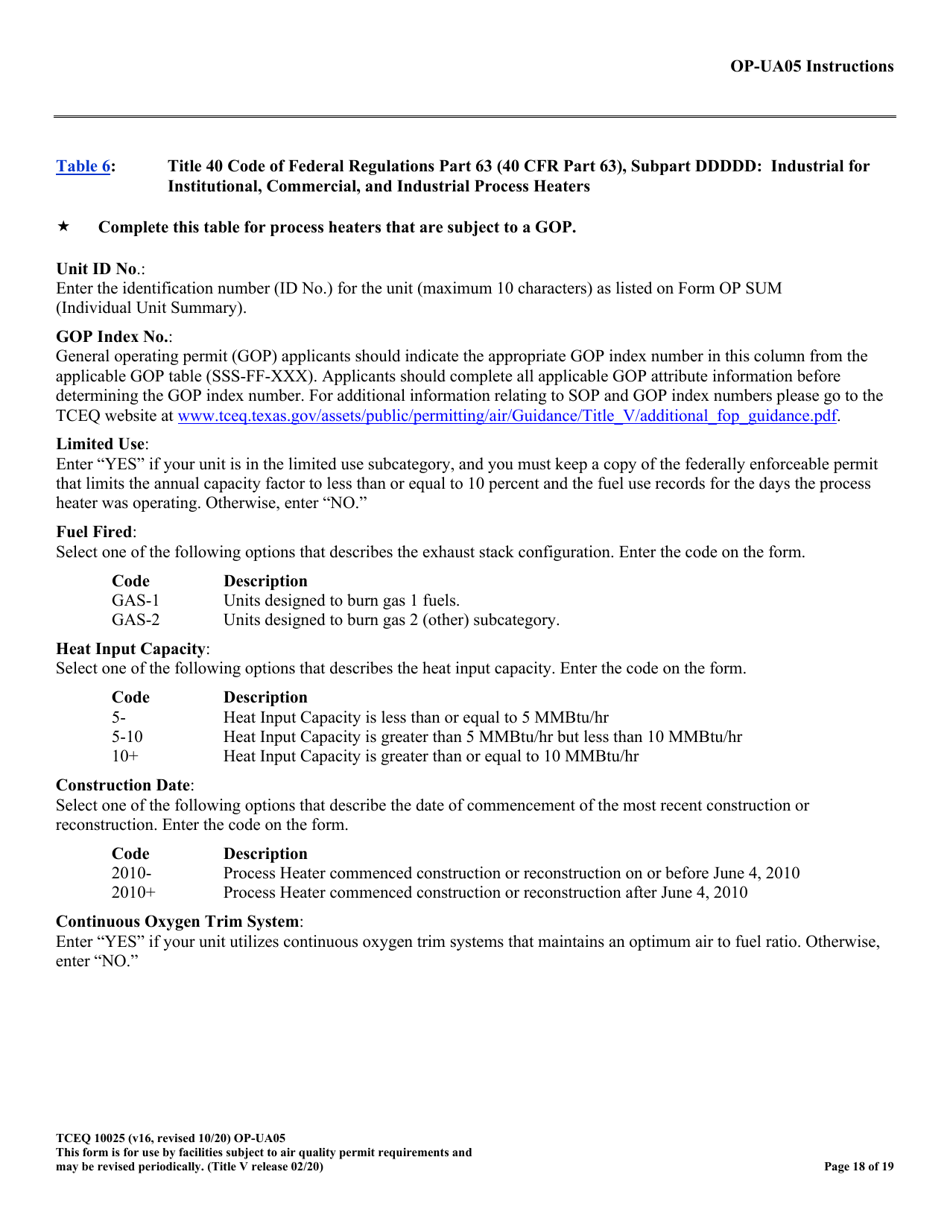

Table 6:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart DDDDD:
Industrial for Institutional, Commercial, and Industrial Process Heaters
The Texas Commission on Environmental Quality (TCEQ) regulated entity number (RNXXXXXXXXX) and the
application area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the
purpose of identification for the initial submittal. The date of the initial form submittal must also be included and should
be consistent throughout the application (MM/DD/YYYY). Leave the permit number blank for the initial form
submittal. If this form is included as part of the permit revision process, enter the permit number assigned by the TCEQ,
the area name (from Form OP-1), the date of the revision submittal, and the regulated entity number.
Unit attribute questions that do not require a response from all applicants are preceded by qualification criteria in the
instructions. If the unit does not meet the qualification criteria, a response to the question is not required. Anytime a
response is not required based on the qualification criteria, leave the space on the form blank.
TCEQ 10025 (v16, revised 10/20) OP-UA05
This form is for use by facilities subject to air quality permit requirements and
may be revised periodically. (Title V release 02/20)
Page 1 of 19
Texas Commission on Environmental Quality
Form OP-UA05
Process Heater/Furnace Attributes
General:
This form is used to provide a description and data pertaining to all process heaters and furnaces with potentially
applicable requirements associated with a particular regulated entity number and application. Each table number, along
with the possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule. If the
rule on the table is not potentially applicable to a process heater and furnace, then it should be left blank and need not be
submitted with the application. The following process heaters and furnaces are considered off-permit sources and do not
need to be listed:
A.
In counties affected by Title 30 Texas Administrative Code Chapter 117 (30 TAC Chapter 117), water
heaters, process heaters, and furnaces that do not fire liquid or solid fuel and have a maximum rated capacity
less than 1.0 MMBtu/hr, unless the unit is placed in service after June 9, 1993, as a functionally identical
replacement for existing units subject to the provisions 30 TAC Chapter 117, Subchapter B.
B.
In counties not affected by 30 TAC Chapter 117, process heaters and furnaces with a heat input capacity less
than or equal to 40 MMBtu/hr that do not fire liquid or solid fuel.
C.
In counties not affected by 30 TAC Chapter 117, water heaters with a heat input capacity less than
10 MMBtu/hr and do not fire liquid or solid fuel.
If the codes entered by the applicant show negative applicability to the rule or sections of the rule represented on the table,
then the applicant need not complete the remainder of the table(s) that corresponds to the rule. Further instruction as to
which questions should be answered and which questions should not be answered are located in the “Specific” section of
the instruction text. The following is included in this form:
Tables 1a
- 1c:
Title 30 Texas Administrative Code Chapter 117 (30 TAC Chapter 117), Subchapter B:
Combustion Control at Major Industrial, Commercial, and Institutional Sources in Ozone
Nonattainment Areas, for Process Heaters
Table
2:
Title 30 Texas Administrative Code Chapter 112 (30 TAC Chapter 112), Control of Air
Pollution from Sulfur Compounds

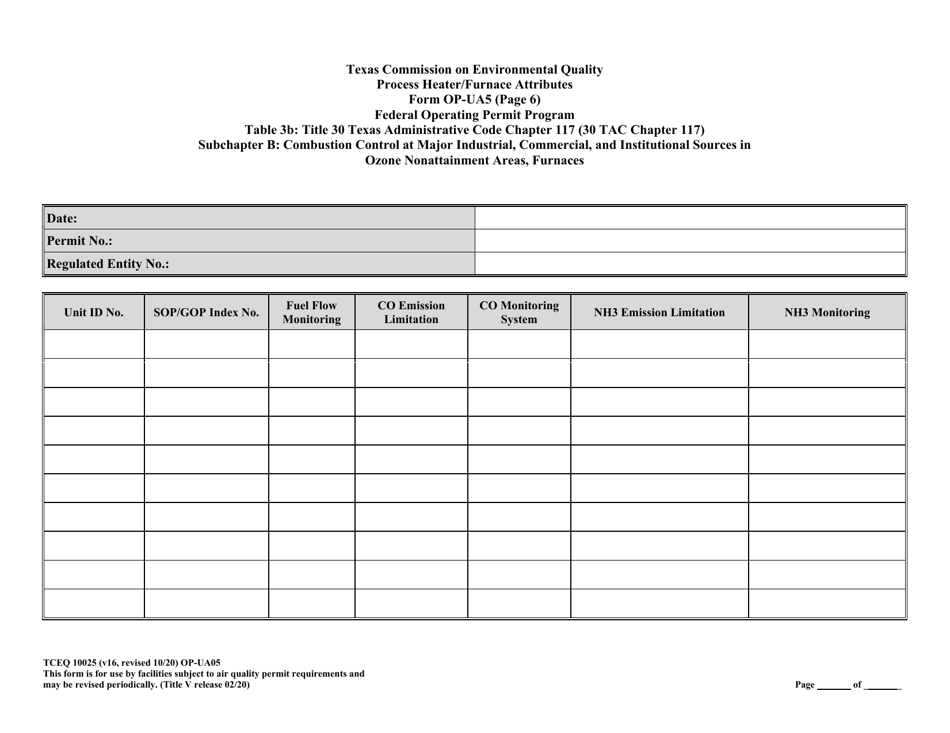

Tables 3a
- 3b:
Title 30 Texas Administrative Code Chapter 117 (30 TAC Chapter 117), Subchapter B;
Combustion Control at Major Industrial, Commercial, and Institutional Sources in Ozone
Nonattainment Areas, for Furnaces
Table
4:
Title 30 Texas Administrative Code Chapter 111 (30 TAC Chapter 111), Subchapter A,
Division 2: Incineration

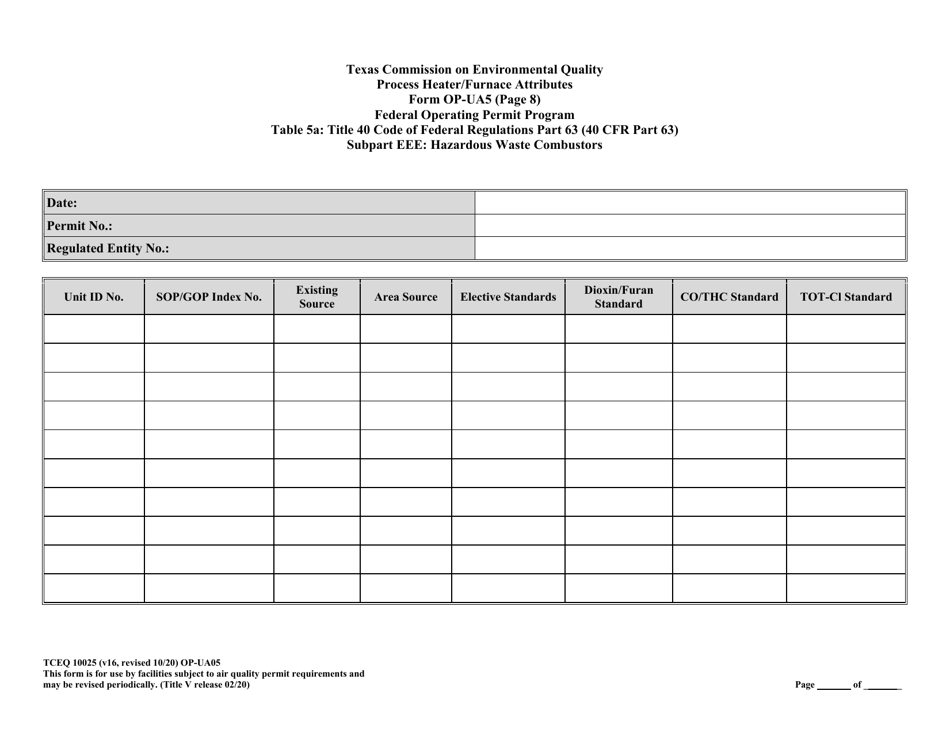

Tables 5a
- 5b:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart EEE: Hazardous
Waste Combustors
Table 6:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart DDDDD:
Industrial for Institutional, Commercial, and Industrial Process Heaters
The Texas Commission on Environmental Quality (TCEQ) regulated entity number (RNXXXXXXXXX) and the
application area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the
purpose of identification for the initial submittal. The date of the initial form submittal must also be included and should
be consistent throughout the application (MM/DD/YYYY). Leave the permit number blank for the initial form
submittal. If this form is included as part of the permit revision process, enter the permit number assigned by the TCEQ,
the area name (from Form OP-1), the date of the revision submittal, and the regulated entity number.
Unit attribute questions that do not require a response from all applicants are preceded by qualification criteria in the
instructions. If the unit does not meet the qualification criteria, a response to the question is not required. Anytime a
response is not required based on the qualification criteria, leave the space on the form blank.
TCEQ 10025 (v16, revised 10/20) OP-UA05
This form is for use by facilities subject to air quality permit requirements and
may be revised periodically. (Title V release 02/20)
Page 1 of 19
OP-UA05 Instructions
Notwithstanding any qualification criteria in the form instructions or information provided in other TCEQ
guidance, the applicant may leave an attribute question blank (or indicate “N/A” for “Not Applicable”) if the
attribute is not needed for the applicable requirement determinations of a regulation for a unit.
In some situations, the applicant has the option of selecting alternate requirements, limitations, and/or practices for a unit.
Note that these alternate requirements, limitations, and/or practices must have the required approval from the TCEQ
Executive Director and/or the U.S. Environmental Protection Agency (EPA) Administrator before the federal operating
permit application is submitted.
The Texas Commission on Environmental Quality (TCEQ) requires that a Core Data Form be submitted on all incoming
registrations unless all of the following are met: the Regulated Entity and Customer Reference Numbers have been issued
by the TCEQ and no core data information has changed. The Central Registry, a common record area of the TCEQ,
maintains information about TCEQ customers and regulated activities, such as company names, addresses, and telephone
numbers. This information is commonly referred to as “core data.” The Central Registry provides the regulated
community with a central access point within the agency to check core data and make changes when necessary. When
core data about a facility is moved to the Central Registry, two new identification numbers are assigned: the Customer
Reference (CN) number and the Regulated Entity (RN) number. The Core Data Form is required if facility records are not
yet part of the Central Registry or if core data for a facility has changed. If this is the initial registration, permit, or license
for a facility site, then the Core Data Form must be completed and submitted with application or registration forms. If
amending, modifying, or otherwise updating an existing record for a facility site, the Core Data Form is not required,
unless any core data information has changed. To review additional information regarding the Central Registry, go to the
TCEQ website at www.tceq.texas.gov/permitting/central_registry.
Specific:
Table
1a:
Title 30 Texas Administrative Code Chapter 117 (30 TAC Chapter 117), Subchapter B:
Combustion Control at Major Industrial, Commercial, and Institutional Sources in Ozone
Nonattainment Areas, for Process Heaters
Complete only for sites that are major sources of NOx, as defined in 30 TAC § 117.10, and are located in the
Houston/Galveston/Brazoria, Beaumont/Port Arthur Eight-Hour or Dallas/Fort Worth Eight-Hour ozone
nonattainment areas.
Unit ID No.:
Enter the identification number (ID No.) for the unit (maximum 10 characters) as listed on Form OP-SUM (Individual
Unit Summary).
SOP/GOP Index No.:
Site operating permit (SOP) applicants should indicate the SOP index number for the unit or group of units
(maximum 15 characters consisting of numeric, alphanumeric characters, and/or dashes prefixed by a code for the
applicable regulation [i.e., 60KB-XXXX]). General operating permit (GOP) applicants should indicate the appropriate
GOP index number in this column from the applicable GOP table (SSS-FF-XXX). Applicants should complete all
applicable GOP attribute information before determining the GOP index number. For additional information relating to
SOP index numbers, please go to the TCEQ website at
www.tceq.texas.gov/assets/public/permitting/air/Guidance/Title_V/additional_fop_guidance.pdf.
TCEQ 10025 (v16, revised 10/20) OP-UA05
This form is for use by facilities subject to air quality permit requirements and
may be revised periodically. (Title V release 02/20)
Page 2 of 19
OP-UA05 Instructions

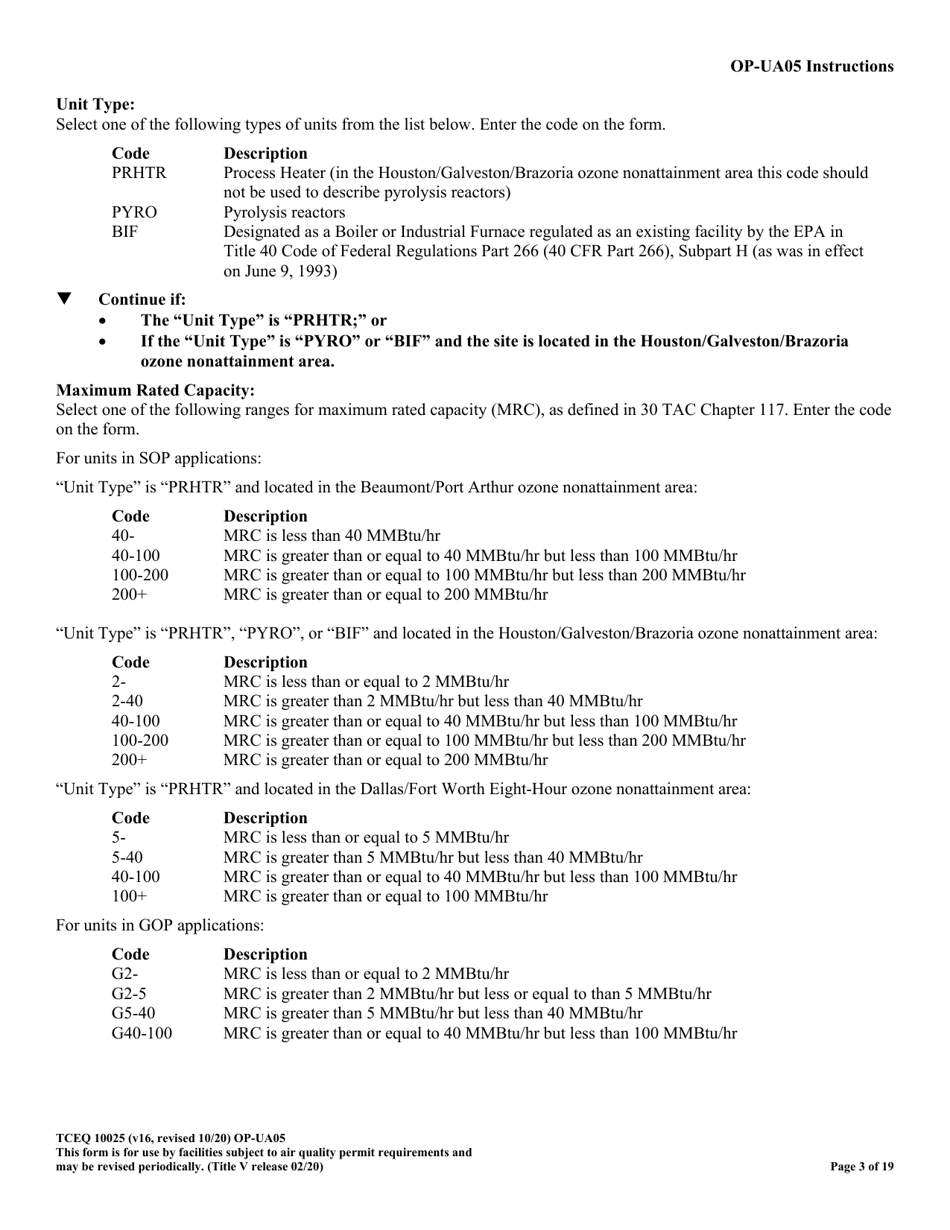

Unit Type:
Select one of the following types of units from the list below. Enter the code on the form.
Code
Description
PRHTR
Process Heater (in the Houston/Galveston/Brazoria ozone nonattainment area this code should
not be used to describe pyrolysis reactors)
PYRO
Pyrolysis reactors
BIF
Designated as a Boiler or Industrial Furnace regulated as an existing facility by the EPA in
Title 40 Code of Federal Regulations Part 266 (40 CFR Part 266), Subpart H (as was in effect
on June 9, 1993)
Continue if:
The “Unit Type” is “PRHTR;” or
If the “Unit Type” is “PYRO” or “BIF” and the site is located in the Houston/Galveston/Brazoria
ozone nonattainment area.
Maximum Rated Capacity:
Select one of the following ranges for maximum rated capacity (MRC), as defined in 30 TAC Chapter 117. Enter the code
on the form.
For units in SOP applications:
“Unit Type” is “PRHTR” and located in the Beaumont/Port Arthur ozone nonattainment area:
Code
Description
40-
MRC is less than 40 MMBtu/hr
40-100
MRC is greater than or equal to 40 MMBtu/hr but less than 100 MMBtu/hr
100-200
MRC is greater than or equal to 100 MMBtu/hr but less than 200 MMBtu/hr
200+
MRC is greater than or equal to 200 MMBtu/hr
“Unit Type” is “PRHTR”, “PYRO”, or “BIF” and located in the Houston/Galveston/Brazoria ozone nonattainment area:
Code
Description
2-
MRC is less than or equal to 2 MMBtu/hr
2-40
MRC is greater than 2 MMBtu/hr but less than 40 MMBtu/hr
40-100
MRC is greater than or equal to 40 MMBtu/hr but less than 100 MMBtu/hr
100-200
MRC is greater than or equal to 100 MMBtu/hr but less than 200 MMBtu/hr
200+
MRC is greater than or equal to 200 MMBtu/hr
“Unit Type” is “PRHTR” and located in the Dallas/Fort Worth Eight-Hour ozone nonattainment area:
Code
Description
5-
MRC is less than or equal to 5 MMBtu/hr
5-40
MRC is greater than 5 MMBtu/hr but less than 40 MMBtu/hr
40-100
MRC is greater than or equal to 40 MMBtu/hr but less than 100 MMBtu/hr
100+
MRC is greater than or equal to 100 MMBtu/hr
For units in GOP applications:
Code
Description
G2-
MRC is less than or equal to 2 MMBtu/hr
G2-5
MRC is greater than 2 MMBtu/hr but less or equal to than 5 MMBtu/hr
G5-40
MRC is greater than 5 MMBtu/hr but less than 40 MMBtu/hr
G40-100
MRC is greater than or equal to 40 MMBtu/hr but less than 100 MMBtu/hr
TCEQ 10025 (v16, revised 10/20) OP-UA05
This form is for use by facilities subject to air quality permit requirements and
may be revised periodically. (Title V release 02/20)
Page 3 of 19
OP-UA05 Instructions
Do not continue if:
The “Maximum Rated Capacity” is “2-” or “G2-;” or
If the site is located in the Dallas/Fort Worth Eight- Hour ozone nonattainment area and “Maximum
Rated Capacity” is “5-” or “G2-5;” or
If the site is located in the Beaumont/Port Arthur ozone nonattainment area and “Unit Type” is
“PRHTR” and “Maximum Rated Capacity” is “40-” or “G2-,” “G2-5,” or “G5-40.”
Complete “RACT Date Placed in Service” only if the site is located in the Beaumont/Port Arthur ozone
nonattainment area.
RACT Date Placed in Service:
Select one of the following options for the date placed in service. Enter the code on the form.
Code
Description
92-
On or before November 15, 1992
92-93
After November 15, 1992 and on or before June 9, 1993
93-FCD
After June 9, 1993 and before the final compliance date specified in 30 TAC §§ 117.9000,
117.9010, 117.9020(1)
FCD+
After June 9, 1993 and on or after the final compliance date specified in 30 TAC §§ 117.9000,
117.9010, 117.9020(1)
Complete “Functionally Identical Replacement” only if “RACT Date Placed in Service” is “93-FCD.”
Functionally Identical Replacement:
Select one of the following codes to identify if the unit is a functionally identical replacement for a unit or group of units
that were in service on or before November 15, 1992. Enter the code on the form.
Code
Description
YES
Unit is a functionally identical replacement
NO
Unit is not a functionally identical replacement
Do not continue if located in the Beaumont/Port Arthur ozone nonattainment area and “RACT Date Placed
in Service” is “93-FCD” and “Functionally Identical Replacement” is “NO,” or “RACT Date Placed in
Service” is “92-93” or “FCD+.”
Fuel Types:
Select one or more of the following options for fuel type(s) fired. Enter the code(s) on the form.
For units in SOP applications:
Code
Description
NG
Natural gas
GS
Gaseous fuel other than natural gas landfill gas or renewable non-fossil fuel gases (refinery gas or
mixtures, etc.)
LFG
Landfill Gas
ORG
Renewable non-fossil fuel gas other than landfill gas
LQD
Liquid
WD
Wood
H50-A
Gaseous fuel containing more than 50% hydrogen (H2) by volume, over an annual basis, fuel gas
sampled and analyzed every three hours
H50-8
Gaseous fuel containing more than 50% H2 by volume, over an eight-hour period, fuel gas
sampled and analyzed every three hours
SLD
Solid fuel other than wood
TCEQ 10025 (v16, revised 10/20) OP-UA05
This form is for use by facilities subject to air quality permit requirements and
may be revised periodically. (Title V release 02/20)
Page 4 of 19
OP-UA05 Instructions

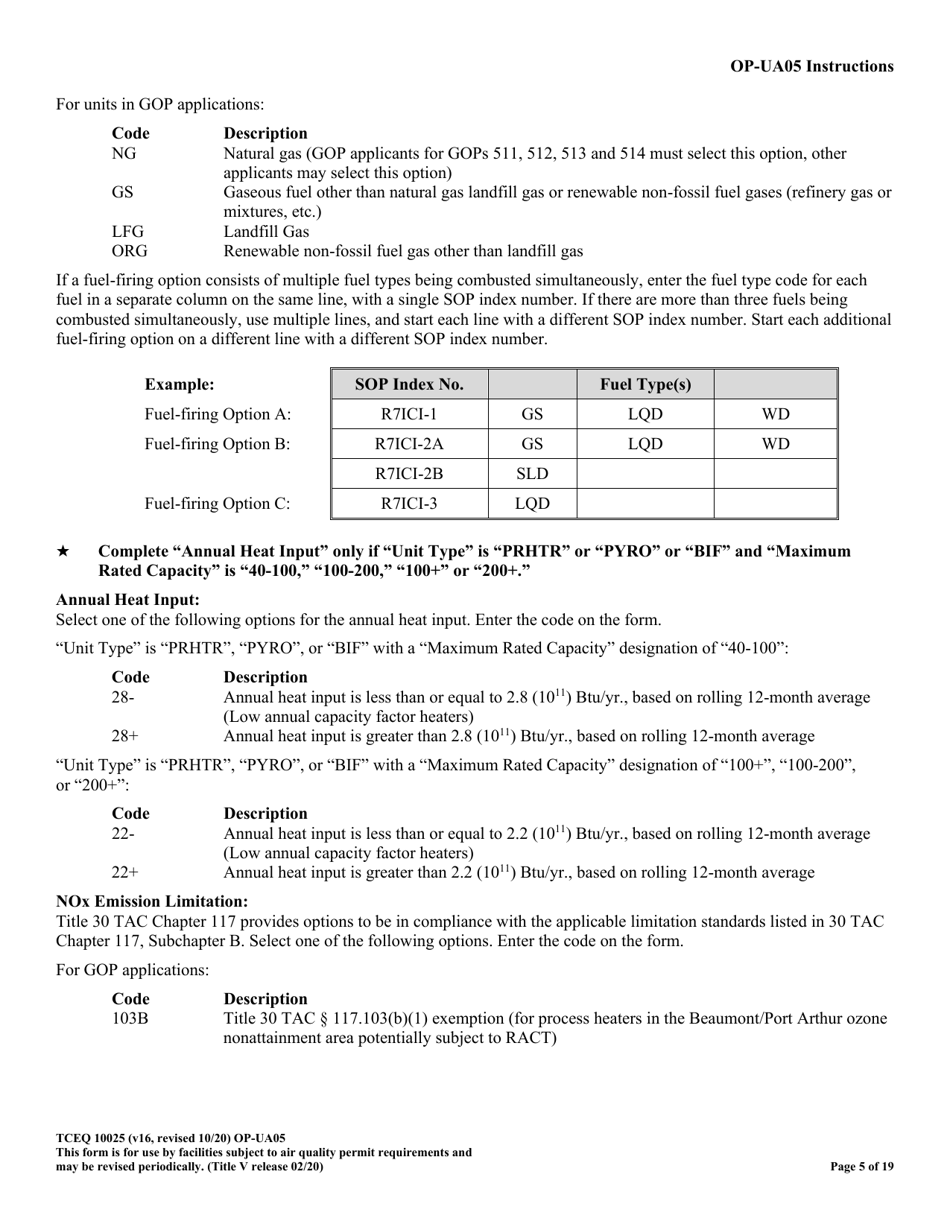

For units in GOP applications:
Code
Description
NG
Natural gas (GOP applicants for GOPs 511, 512, 513 and 514 must select this option, other
applicants may select this option)
GS
Gaseous fuel other than natural gas landfill gas or renewable non-fossil fuel gases (refinery gas or
mixtures, etc.)
LFG
Landfill Gas
ORG
Renewable non-fossil fuel gas other than landfill gas
If a fuel-firing option consists of multiple fuel types being combusted simultaneously, enter the fuel type code for each
fuel in a separate column on the same line, with a single SOP index number. If there are more than three fuels being
combusted simultaneously, use multiple lines, and start each line with a different SOP index number. Start each additional
fuel-firing option on a different line with a different SOP index number.
Example:
SOP Index No.
Fuel Type(s)
Fuel-firing Option A:
R7ICI-1
GS
LQD
WD
Fuel-firing Option B:
R7ICI-2A
GS
LQD
WD
R7ICI-2B
SLD
Fuel-firing Option C:
R7ICI-3
LQD
Complete “Annual Heat Input” only if “Unit Type” is “PRHTR” or “PYRO” or “BIF” and “Maximum
Rated Capacity” is “40-100,” “100-200,” “100+” or “200+.”
Annual Heat Input:
Select one of the following options for the annual heat input. Enter the code on the form.
“Unit Type” is “PRHTR”, “PYRO”, or “BIF” with a “Maximum Rated Capacity” designation of “40-100”:
Code
Description
28-
Annual heat input is less than or equal to 2.8 (10
11
) Btu/yr., based on rolling 12-month average
(Low annual capacity factor heaters)
28+
Annual heat input is greater than 2.8 (10
) Btu/yr., based on rolling 12-month average
11
“Unit Type” is “PRHTR”, “PYRO”, or “BIF” with a “Maximum Rated Capacity” designation of “100+”, “100-200”,
or “200+”:
Code
Description
22-
Annual heat input is less than or equal to 2.2 (10
11
) Btu/yr., based on rolling 12-month average
(Low annual capacity factor heaters)
22+
Annual heat input is greater than 2.2 (10
11
) Btu/yr., based on rolling 12-month average
NOx Emission Limitation:
Title 30 TAC Chapter 117 provides options to be in compliance with the applicable limitation standards listed in 30 TAC
Chapter 117, Subchapter B. Select one of the following options. Enter the code on the form.
For GOP applications:
Code
Description
103B
Title 30 TAC § 117.103(b)(1) exemption (for process heaters in the Beaumont/Port Arthur ozone
nonattainment area potentially subject to RACT)
TCEQ 10025 (v16, revised 10/20) OP-UA05
This form is for use by facilities subject to air quality permit requirements and
may be revised periodically. (Title V release 02/20)
Page 5 of 19
