500,000
EXTENDED MAINTENANCE GUIDE
KM
Applicable Subaru Models:
1990-2009MY Naturally-Aspirated 4-cylinder engines (all models, including SVX)
You won’t find many car manufacturers that bother to publish a maintenance guide that extends beyond the 160,000 km mark.
Of course, there’s a reason for that. But longtime Subaru owners know that their vehicles are capable of easily going past that
threshold and running strong well into the future. A vehicle with significant mileage needs special care, though, because parts do
wear out over time and an ounce of prevention is still worth a pound of cure. This is why Subaru Canada now offers a first for the industry – a
comprehensive extended maintenance schedule for our vehicles all the way up to 500,000 km. (In other words, many ounces of prevention.)
A
VEHICLE
SERVICE
VEHICLE
SERVICE
VEHICLE
SERVICE
KILOMETRES
NEEDED
KILOMETRES
NEEDED
KILOMETRES
NEEDED
6,000
A
174,000
A
342,000
A
GOOD
• Replace engine oil and filter
12,000
A
180,000
A
348,000
A
• Inspect and adjust all fluid levels, including both differentials
18,000
A
186,000
A
354,000
A
• Inspect tire condition and adjust tire pressures, including spare tire
• Inspect operation of all lights, wipers and washers
24,000
B
192,000
D
360,000
B
• Inspect and adjust drive belt tension
A
A
A
30,000
198,000
366,000
• Inspect axle boot condition
• Lubricate all latches, hinges and locks
36,000
A
204,000
A
372,000
A
• Inspect all steering and suspension components
42,000
A
210,000
G
378,000
G
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
48,000
C
216,000
B
384,000
D
• Road test
54,000
A
222,000
A
390,000
A
BETTER
60,000
A
228,000
A
396,000
A
• Battery/charging system test
66,000
A
234,000
A
402,000
A
72,000
B
240,000
C
408,000
B
B
78,000
A
246,000
A
414,000
A
G
G
G
84,000
252,000
420,000
GOOD
90,000
A
258,000
A
426,000
A
• Replace engine oil and filter
• Inspect and adjust all fluid levels, including both differentials
96,000
D
264,000
B
432,000
C
• Inspect operation of all lights, wipers and washers
102,000
A
270,000
A
438,000
A
• Inspect and adjust drive belt tension
• Inspect axle boot condition
108,000
A
276,000
A
444,000
A
• Lubricate all latches, hinges and locks
114,000
A
282,000
A
450,000
A
• Inspect all steering and suspension components
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
120,000
B
288,000
D
456,000
B
• Rotate tires and inspect for wear (4 wheel alignment if necessary)
126,000
G
294,000
G
462,000
G
• Adjust all tire pressures, including spare tire
• Service front and rear brakes
132,000
A
300,000
A
468,000
A
• Inspect air filter, replace if necessary
138,000
A
306,000
A
474,000
A
• Road test
144,000
C
312,000
B
480,000
D
BETTER
150,000
A
318,000
A
486,000
A
• Test coolant, inspect hoses, clamps and rad fins
• Inspect cabin filter, replace if necessary
156,000
A
324,000
A
492,000
A
• Battery/charging system test
162,000
A
330,000
A
498,000
A
168,000
E
336,000
F
504,000
E
500,000
EXTENDED MAINTENANCE GUIDE
KM
Applicable Subaru Models:
1990-2009MY Naturally-Aspirated 4-cylinder engines (all models, including SVX)
You won’t find many car manufacturers that bother to publish a maintenance guide that extends beyond the 160,000 km mark.
Of course, there’s a reason for that. But longtime Subaru owners know that their vehicles are capable of easily going past that
threshold and running strong well into the future. A vehicle with significant mileage needs special care, though, because parts do
wear out over time and an ounce of prevention is still worth a pound of cure. This is why Subaru Canada now offers a first for the industry – a
comprehensive extended maintenance schedule for our vehicles all the way up to 500,000 km. (In other words, many ounces of prevention.)
A
VEHICLE
SERVICE
VEHICLE
SERVICE
VEHICLE
SERVICE
KILOMETRES
NEEDED
KILOMETRES
NEEDED
KILOMETRES
NEEDED
6,000
A
174,000
A
342,000
A
GOOD
• Replace engine oil and filter
12,000
A
180,000
A
348,000
A
• Inspect and adjust all fluid levels, including both differentials
18,000
A
186,000
A
354,000
A
• Inspect tire condition and adjust tire pressures, including spare tire
• Inspect operation of all lights, wipers and washers
24,000
B
192,000
D
360,000
B
• Inspect and adjust drive belt tension
A
A
A
30,000
198,000
366,000
• Inspect axle boot condition
• Lubricate all latches, hinges and locks
36,000
A
204,000
A
372,000
A
• Inspect all steering and suspension components
42,000
A
210,000
G
378,000
G
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
48,000
C
216,000
B
384,000
D
• Road test
54,000
A
222,000
A
390,000
A
BETTER
60,000
A
228,000
A
396,000
A
• Battery/charging system test
66,000
A
234,000
A
402,000
A
72,000
B
240,000
C
408,000
B
B
78,000
A
246,000
A
414,000
A
G
G
G
84,000
252,000
420,000
GOOD
90,000
A
258,000
A
426,000
A
• Replace engine oil and filter
• Inspect and adjust all fluid levels, including both differentials
96,000
D
264,000
B
432,000
C
• Inspect operation of all lights, wipers and washers
102,000
A
270,000
A
438,000
A
• Inspect and adjust drive belt tension
• Inspect axle boot condition
108,000
A
276,000
A
444,000
A
• Lubricate all latches, hinges and locks
114,000
A
282,000
A
450,000
A
• Inspect all steering and suspension components
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
120,000
B
288,000
D
456,000
B
• Rotate tires and inspect for wear (4 wheel alignment if necessary)
126,000
G
294,000
G
462,000
G
• Adjust all tire pressures, including spare tire
• Service front and rear brakes
132,000
A
300,000
A
468,000
A
• Inspect air filter, replace if necessary
138,000
A
306,000
A
474,000
A
• Road test
144,000
C
312,000
B
480,000
D
BETTER
150,000
A
318,000
A
486,000
A
• Test coolant, inspect hoses, clamps and rad fins
• Inspect cabin filter, replace if necessary
156,000
A
324,000
A
492,000
A
• Battery/charging system test
162,000
A
330,000
A
498,000
A
168,000
E
336,000
F
504,000
E
500,000
EXTENDED MAINTENANCE GUIDE
KM
Applicable Subaru Models:
1990-2009MY Naturally-Aspirated 4-cylinder engines (all models, including SVX)
C
D
GOOD
GOOD
• Replace engine oil and filter
• Replace engine oil and filter
• Inspect and adjust all fluid levels, including both differentials
• Inspect and adjust all fluid levels
• Inspect operation of all lights, wipers and washers
• Inspect operation of all lights, wipers and washers
• Inspect and adjust drive belt tension
• Inspect and adjust drive belt tension
• Inspect axle boot condition
• Inspect axle boot condition
• Lubricate all latches, hinges and locks
• Lubricate all latches, hinges and locks
• Inspect all steering and suspension components
• Inspect all steering and suspension components
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
• Replace coolant
, inspect hoses, clamps and rad fins
• Replace coolant
, inspect hoses, clamps and rad fins
1
1
• Rotate tires and inspect for wear (4 wheel alignment if necessary)
• Rotate tires and inspect for wear (4 wheel alignment if necessary)
• Adjust all tire pressures, including spare tire
• Adjust all tire pressures, including spare tire
• Service front and rear brakes
• Service front and rear brakes
• Replace spark plugs
4
• Replace transmission and differential fluids
• Inspect battery cables, terminals, etc.
• Replace timing belt and accessory belts
2
• Inspect air and cabin filters, replace if necessary
• Replace spark plugs
• Road test
• Inspect emission hoses and PCV valve
• Inspect battery cables, terminals, etc.
BETTER
• Inspect air and cabin filters, replace if necessary
• Test brake fluid, replace if necessary
• Road test
• Perform fuel injector flush and decarbonisation treatment
• Inspect emission hoses and PCV valve
BETTER
• Battery/charging system test
• Test brake fluid, replace if necessary
• Perform fuel injector flush and decarbonisation treatment
• Battery/charging system test
E
GOOD
BETTER
• Replace engine oil and filter
• Battery/charging system test
• Inspect and adjust all fluid levels
• Inspect engine/transmission mounts
• Inspect operation of all lights, wipers and washers
• Inspect cabin filter, replace if necessary
• Inspect and adjust drive belt tension
• Inspect axle boot condition
BEST
• Lubricate all latches, hinges and locks
• Install reconditioned fuel injectors
• Inspect all steering and suspension components
• Perform lubricant diagnosis
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
• Perform antifreeze/coolant diagnosis
• Replace coolant
, inspect hoses, clamps and rad fins
• Service mass air flow sensor
1
• Rotate tires and inspect for wear (4 wheel alignment if necessary)
• Service throttle body
• Adjust all tire pressures, including spare tire
• Service front and rear brakes
• Inspect air filter, replace if necessary
• Replace timing belt and accessory belts
2
• Adjust valve clearances
3
• Road test

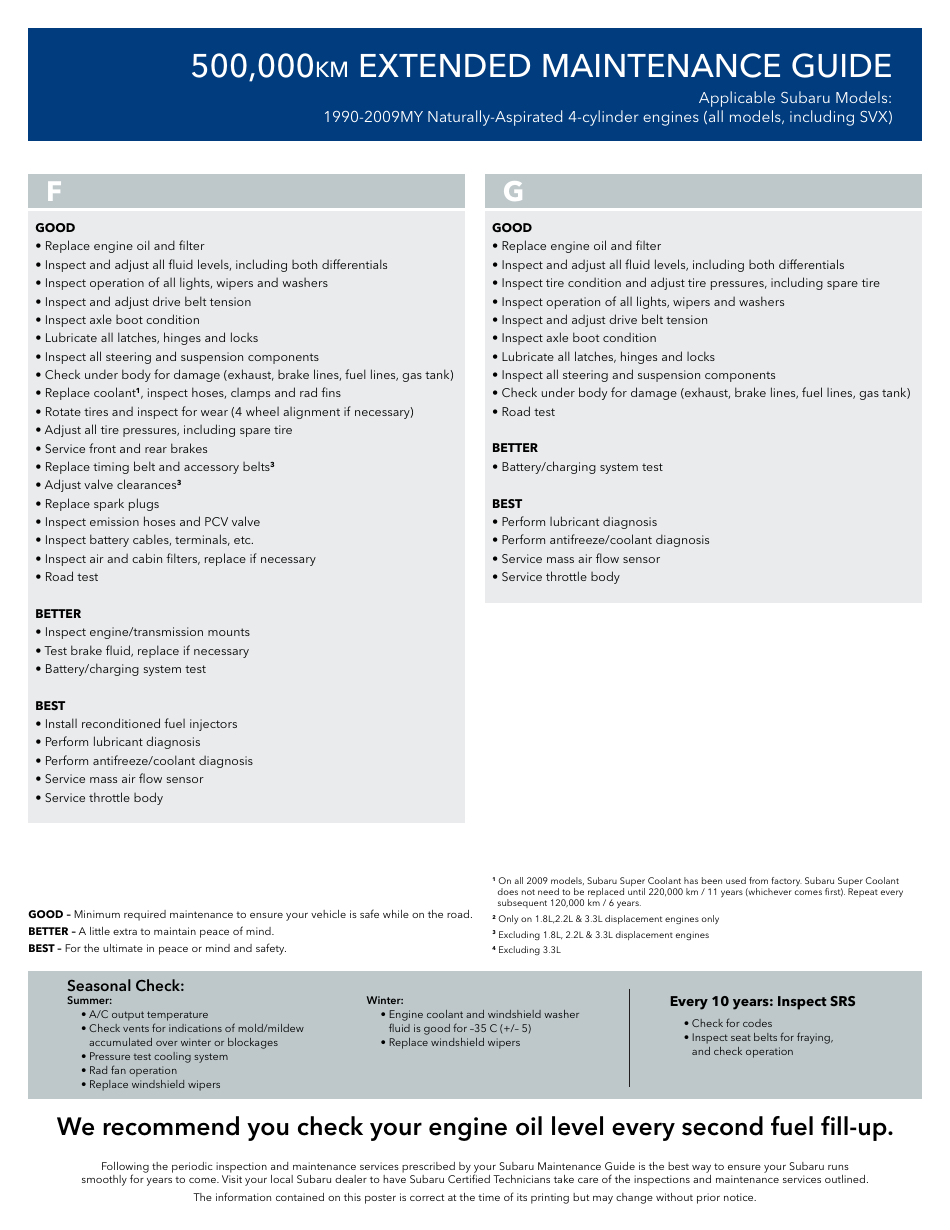

500,000
EXTENDED MAINTENANCE GUIDE
KM
Applicable Subaru Models:
1990-2009MY Naturally-Aspirated 4-cylinder engines (all models, including SVX)
F
G
GOOD
GOOD
• Replace engine oil and filter
• Replace engine oil and filter
• Inspect and adjust all fluid levels, including both differentials
• Inspect and adjust all fluid levels, including both differentials
• Inspect operation of all lights, wipers and washers
• Inspect tire condition and adjust tire pressures, including spare tire
• Inspect and adjust drive belt tension
• Inspect operation of all lights, wipers and washers
• Inspect axle boot condition
• Inspect and adjust drive belt tension
• Lubricate all latches, hinges and locks
• Inspect axle boot condition
• Inspect all steering and suspension components
• Lubricate all latches, hinges and locks
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
• Inspect all steering and suspension components
• Replace coolant
1
, inspect hoses, clamps and rad fins
• Check under body for damage (exhaust, brake lines, fuel lines, gas tank)
• Rotate tires and inspect for wear (4 wheel alignment if necessary)
• Road test
• Adjust all tire pressures, including spare tire
• Service front and rear brakes
BETTER
• Replace timing belt and accessory belts
• Battery/charging system test
3
• Adjust valve clearances
3
BEST
• Replace spark plugs
• Inspect emission hoses and PCV valve
• Perform lubricant diagnosis
• Inspect battery cables, terminals, etc.
• Perform antifreeze/coolant diagnosis
• Inspect air and cabin filters, replace if necessary
• Service mass air flow sensor
• Road test
• Service throttle body
BETTER
• Inspect engine/transmission mounts
• Test brake fluid, replace if necessary
• Battery/charging system test
BEST
• Install reconditioned fuel injectors
• Perform lubricant diagnosis
• Perform antifreeze/coolant diagnosis
• Service mass air flow sensor
• Service throttle body
1
On all 2009 models, Subaru Super Coolant has been used from factory. Subaru Super Coolant
does not need to be replaced until 220,000 km / 11 years (whichever comes first). Repeat every
subsequent 120,000 km / 6 years.
GOOD – Minimum required maintenance to ensure your vehicle is safe while on the road.
Only on 1.8L,2.2L & 3.3L displacement engines only
2
BETTER – A little extra to maintain peace of mind.
Excluding 1.8L, 2.2L & 3.3L displacement engines
3
BEST – For the ultimate in peace or mind and safety.
4
Excluding 3.3L
Seasonal Check:
Every 10 years: Inspect SRS
Summer:
Winter:
• Engine coolant and windshield washer
• A/C output temperature
• Check for codes
fluid is good for –35 C (+/– 5)
• Check vents for indications of mold/mildew
• Inspect seat belts for fraying,
accumulated over winter or blockages
• Replace windshield wipers
and check operation
• Pressure test cooling system
• Rad fan operation
• Replace windshield wipers
We recommend you check your engine oil level every second fuel fill-up.
Following the periodic inspection and maintenance services prescribed by your Subaru Maintenance Guide is the best way to ensure your Subaru runs
smoothly for years to come. Visit your local Subaru dealer to have Subaru Certified Technicians take care of the inspections and maintenance services outlined.
The information contained on this poster is correct at the time of its printing but may change without prior notice.
Page of 3
