Texas Commission on Environmental Quality
Form OP-UA39
Sterilization Source Attributes
General:
This form is used to provide a description and data pertaining to all sterilization sources with potentially applicable
requirements associated with a particular regulated entity number and application. Each table number, along with the
possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule. If the rule on
the table is not potentially applicable to a sterilization source, then it should be left blank and need not be submitted with
the application. If the codes entered by the applicant show negative applicability to the rule or sections of the rule
represented on the table, then the applicant need not complete the remainder of the table(s) that corresponds to the rule.
Further instruction as to which questions should be answered and which questions should not be answered are located in
the “Specific” section of the instruction text. The following is included in this form:
Tables 1a - 1c:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63)
Subpart O: National Emission Standards for Hazardous Air Pollutants for Ethylene Oxide
Commercial Sterilization and Fumigation Operations
The Texas Commission on Environmental Quality (TCEQ) Regulated Entity Number (RNXXXXXXXXX) and the
application area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the
purpose of identification for the initial submittal. The date of the initial form submittal must also be included and should
be consistent throughout the application (MM DD YYYY). Leave the permit number blank for the initial form submittal.
If this form is included as part of the permit revision process, enter the permit number assigned by the TCEQ, the area
name (from Form OP-1), the date of the revision submittal, and the regulated entity number.
Unit attribute questions that do not require a response from all applicants are preceded by qualification criteria in the
instructions. If the unit does not meet the qualification criteria, a response to the question is not required. Anytime a
response is not required based on the qualification criteria, leave the space on the form blank.
Notwithstanding any qualification criteria in the form instructions or information provided in other TCEQ guidance, the
applicant may leave an attribute question blank (or indicate “N/A” for “Not Applicable”) if the attribute is not needed for
the applicable requirement determinations of a regulation for a unit.
In some situations, the applicant has the option of selecting alternate requirements, limitations, and/or practices for a unit.
Note that these alternate requirements, limitations, and/or practices must have the required approval from the TCEQ
Executive Director and/or the U.S. Environmental Protection Agency Administrator before the federal operating permit
application is submitted.
The Texas Commission on Environmental Quality (TCEQ) requires that a Core Data Form be submitted on all incoming
registrations unless all of the following are met: the Regulated Entity and Customer Reference Numbers have been issued
by the TCEQ and no core data information has changed. The Central Registry, a common record area of the TCEQ,
maintains information about TCEQ customers and regulated activities, such as company names, addresses, and telephone
numbers. This information is commonly referred to as “core data.” The Central Registry provides the regulated
community with a central access point within the agency to check core data and make changes when necessary. When
core data about a facility is moved to the Central Registry, two new identification numbers are assigned: the Customer
Reference (CN) number and the Regulated Entity (RN) number. The Core Data Form is required if facility records are not
yet part of the Central Registry or if core data for a facility has changed. If this is the initial registration, permit, or license
for a facility site, then the Core Data Form must be completed and submitted with application or registration forms. If
TCEQ - 10090 (APDG 5348v17, Revised 10/15) OP-UA39
This form is for use by facilities subject to air quality permit requirements
and may be revised periodically. (Title V Release 11/04)
Page 1 of 4
Texas Commission on Environmental Quality
Form OP-UA39
Sterilization Source Attributes
General:
This form is used to provide a description and data pertaining to all sterilization sources with potentially applicable
requirements associated with a particular regulated entity number and application. Each table number, along with the
possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule. If the rule on
the table is not potentially applicable to a sterilization source, then it should be left blank and need not be submitted with
the application. If the codes entered by the applicant show negative applicability to the rule or sections of the rule
represented on the table, then the applicant need not complete the remainder of the table(s) that corresponds to the rule.
Further instruction as to which questions should be answered and which questions should not be answered are located in
the “Specific” section of the instruction text. The following is included in this form:
Tables 1a - 1c:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63)
Subpart O: National Emission Standards for Hazardous Air Pollutants for Ethylene Oxide
Commercial Sterilization and Fumigation Operations
The Texas Commission on Environmental Quality (TCEQ) Regulated Entity Number (RNXXXXXXXXX) and the
application area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the
purpose of identification for the initial submittal. The date of the initial form submittal must also be included and should
be consistent throughout the application (MM DD YYYY). Leave the permit number blank for the initial form submittal.
If this form is included as part of the permit revision process, enter the permit number assigned by the TCEQ, the area
name (from Form OP-1), the date of the revision submittal, and the regulated entity number.
Unit attribute questions that do not require a response from all applicants are preceded by qualification criteria in the
instructions. If the unit does not meet the qualification criteria, a response to the question is not required. Anytime a
response is not required based on the qualification criteria, leave the space on the form blank.
Notwithstanding any qualification criteria in the form instructions or information provided in other TCEQ guidance, the
applicant may leave an attribute question blank (or indicate “N/A” for “Not Applicable”) if the attribute is not needed for
the applicable requirement determinations of a regulation for a unit.
In some situations, the applicant has the option of selecting alternate requirements, limitations, and/or practices for a unit.
Note that these alternate requirements, limitations, and/or practices must have the required approval from the TCEQ
Executive Director and/or the U.S. Environmental Protection Agency Administrator before the federal operating permit
application is submitted.
The Texas Commission on Environmental Quality (TCEQ) requires that a Core Data Form be submitted on all incoming
registrations unless all of the following are met: the Regulated Entity and Customer Reference Numbers have been issued
by the TCEQ and no core data information has changed. The Central Registry, a common record area of the TCEQ,
maintains information about TCEQ customers and regulated activities, such as company names, addresses, and telephone
numbers. This information is commonly referred to as “core data.” The Central Registry provides the regulated
community with a central access point within the agency to check core data and make changes when necessary. When
core data about a facility is moved to the Central Registry, two new identification numbers are assigned: the Customer
Reference (CN) number and the Regulated Entity (RN) number. The Core Data Form is required if facility records are not
yet part of the Central Registry or if core data for a facility has changed. If this is the initial registration, permit, or license
for a facility site, then the Core Data Form must be completed and submitted with application or registration forms. If
TCEQ - 10090 (APDG 5348v17, Revised 10/15) OP-UA39
This form is for use by facilities subject to air quality permit requirements
and may be revised periodically. (Title V Release 11/04)
Page 1 of 4
OP-UA39 Instructions
amending, modifying, or otherwise updating an existing record for a facility site, the Core Data Form is not required,
unless any core data information has changed. To review additional information regarding the Central Registry, go to the
TCEQ Web site at www.tceq.texas.gov/permitting/central_registry/index.html.
Specific:

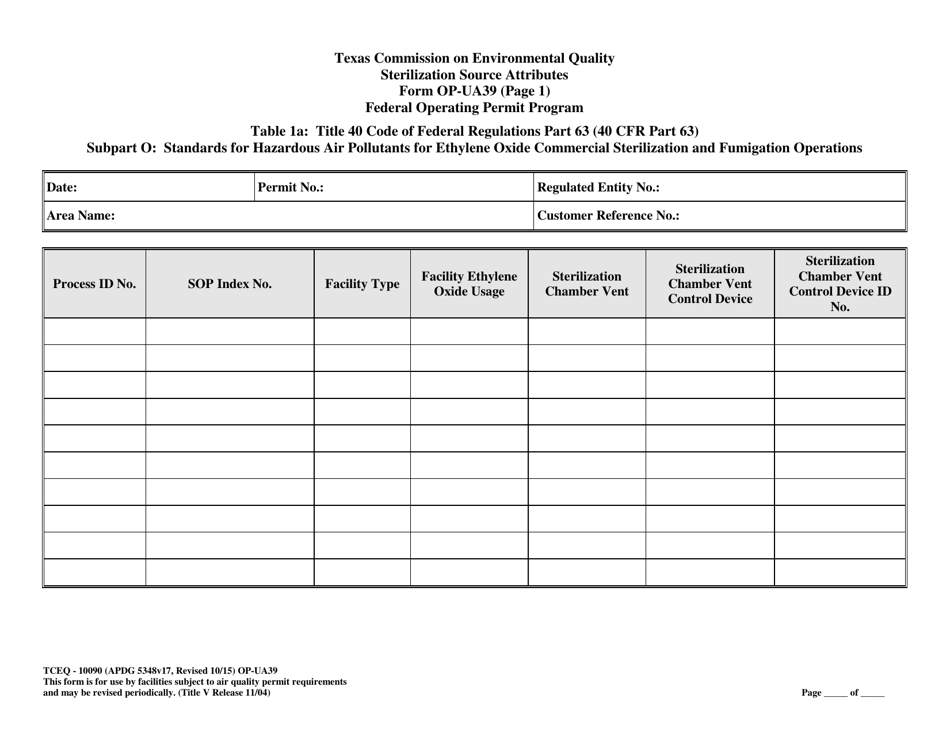

Table 1a:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63)
Subpart O: National Emission Standards for Hazardous Air Pollutants for Ethylene Oxide
Commercial Sterilization and Fumigation Operations
Process ID No.: Enter the identification number (ID No.) for the sterilization source (maximum 10 characters) as listed
on Form OP-SUM (Individual Unit Summary).
SOP Index No.: Site operating permit (SOP) applicants should indicate the SOP index number for the unit or group of
units (maximum 15 characters consisting of numeric, alphanumeric characters, and/or dashes prefixed by a code for the
applicable regulation [i.e., 60KB-XXXX]). For additional information relating to SOP index numbers, please refer to the
TCEQ website at www.tceq.texas.gov/assets/public/permitting/air/Guidance/Title_V/sop_initial.pdf.
Facility Type: Select one of the following options to describe the type of affected facility. Enter the code on the form.
Code
Description
BEE
Beehive fumigator
LAB
Research or laboratory facility as defined in Federal Clean Air Act § 112(c)(7)
HOSP
Hospital, doctor’s office, clinic, or other facility whose primary purpose is to provide medical
services to humans or animals
OTHER
Other type of sterilization or fumigation operation using ethylene oxide
Continue only if “Facility Type” is “OTHER.”
Facility Ethylene Oxide Usage: Select one of the following options to describe the ethylene oxide usage within all
consecutive 12-month periods since December 6, 1996. Enter the code on the form.
Code
Description
1-
Ethylene oxide usage is less than 907 Kg (1 ton)
1-10
Ethylene oxide usage is greater than 907 Kg (1 ton) but less than 9070 Kg (10 tons)
10+
Ethylene oxide usage is greater than or equal to 9070 Kg (10 tons)
Continue only if “Ethylene Oxide Usage” is “1-10” or “10+.”
Sterilization Chamber Vent: Enter “YES” if the source utilizes a sterilization chamber vent. Otherwise, enter “NO.”
Continue only if the response to “Sterilization Chamber Vent” is “YES.”
Sterilization Chamber Vent Control Device: Select one of the following options to describe the type of control
technology used for the sterilization chamber vent. Enter the code on the form.
Code
Description
SCRUB
Acid-water scrubbers
OXIDIZ
Catalytic or thermal oxidation units
OTHER
Control technology other than acid-water scrubbers or catalytic or thermal oxidizers
TCEQ - 10090 (APDG 5348v17, Revised 10/15) OP-UA39
This form is for use by facilities subject to air quality permit requirements
and may be revised periodically. (Title V Release 11/04)
Page 2 of 4
OP-UA39 Instructions

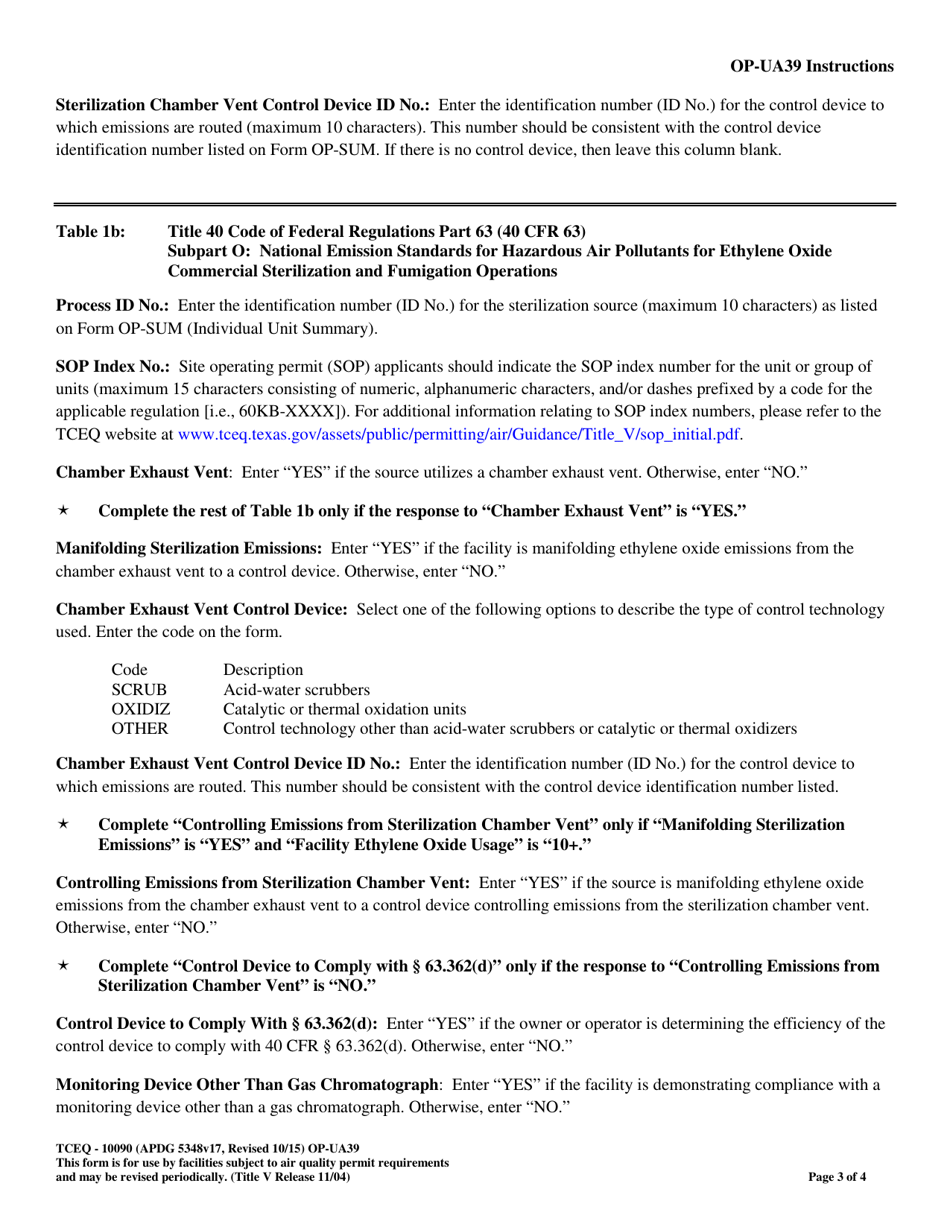

Sterilization Chamber Vent Control Device ID No.: Enter the identification number (ID No.) for the control device to
which emissions are routed (maximum 10 characters). This number should be consistent with the control device
identification number listed on Form OP-SUM. If there is no control device, then leave this column blank.

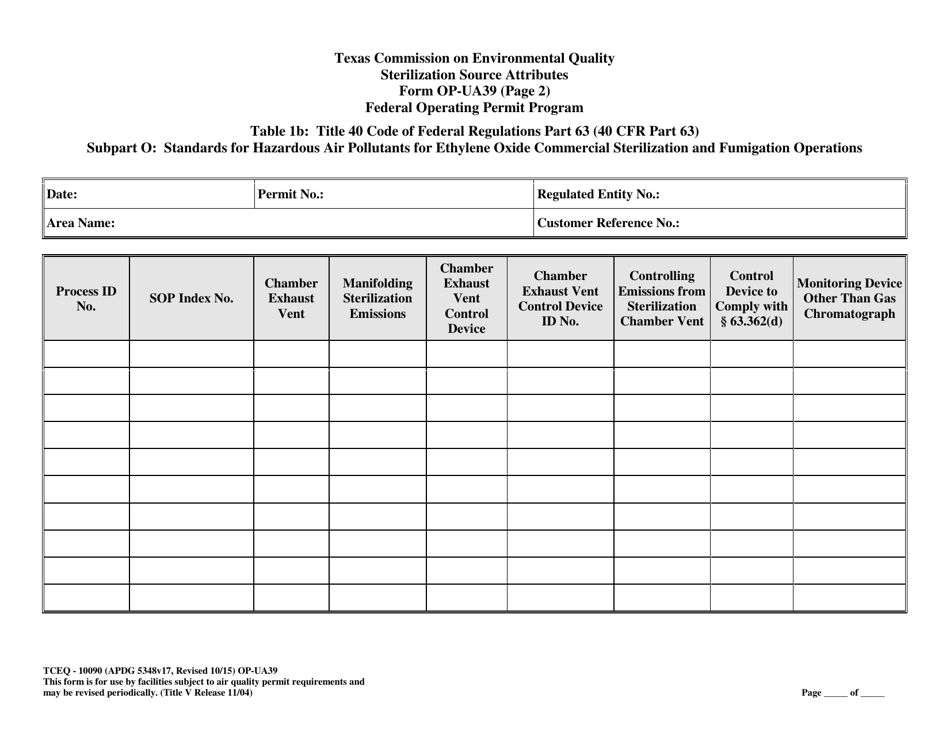

Table 1b:
Title 40 Code of Federal Regulations Part 63 (40 CFR 63)
Subpart O: National Emission Standards for Hazardous Air Pollutants for Ethylene Oxide
Commercial Sterilization and Fumigation Operations
Process ID No.: Enter the identification number (ID No.) for the sterilization source (maximum 10 characters) as listed
on Form OP-SUM (Individual Unit Summary).
SOP Index No.: Site operating permit (SOP) applicants should indicate the SOP index number for the unit or group of
units (maximum 15 characters consisting of numeric, alphanumeric characters, and/or dashes prefixed by a code for the
applicable regulation [i.e., 60KB-XXXX]). For additional information relating to SOP index numbers, please refer to the
TCEQ website at www.tceq.texas.gov/assets/public/permitting/air/Guidance/Title_V/sop_initial.pdf.
Chamber Exhaust Vent: Enter “YES” if the source utilizes a chamber exhaust vent. Otherwise, enter “NO.”
Complete the rest of Table 1b only if the response to “Chamber Exhaust Vent” is “YES.”
Manifolding Sterilization Emissions: Enter “YES” if the facility is manifolding ethylene oxide emissions from the
chamber exhaust vent to a control device. Otherwise, enter “NO.”
Chamber Exhaust Vent Control Device: Select one of the following options to describe the type of control technology
used. Enter the code on the form.
Code
Description
SCRUB
Acid-water scrubbers
OXIDIZ
Catalytic or thermal oxidation units
OTHER
Control technology other than acid-water scrubbers or catalytic or thermal oxidizers
Chamber Exhaust Vent Control Device ID No.: Enter the identification number (ID No.) for the control device to
which emissions are routed. This number should be consistent with the control device identification number listed.
Complete “Controlling Emissions from Sterilization Chamber Vent” only if “Manifolding Sterilization
Emissions” is “YES” and “Facility Ethylene Oxide Usage” is “10+.”
Controlling Emissions from Sterilization Chamber Vent: Enter “YES” if the source is manifolding ethylene oxide
emissions from the chamber exhaust vent to a control device controlling emissions from the sterilization chamber vent.
Otherwise, enter “NO.”
Complete “Control Device to Comply with § 63.362(d)” only if the response to “Controlling Emissions from
Sterilization Chamber Vent” is “NO.”
Control Device to Comply With § 63.362(d): Enter “YES” if the owner or operator is determining the efficiency of the
control device to comply with 40 CFR § 63.362(d). Otherwise, enter “NO.”
Monitoring Device Other Than Gas Chromatograph: Enter “YES” if the facility is demonstrating compliance with a
monitoring device other than a gas chromatograph. Otherwise, enter “NO.”
TCEQ - 10090 (APDG 5348v17, Revised 10/15) OP-UA39
This form is for use by facilities subject to air quality permit requirements
and may be revised periodically. (Title V Release 11/04)
Page 3 of 4
OP-UA39 Instructions

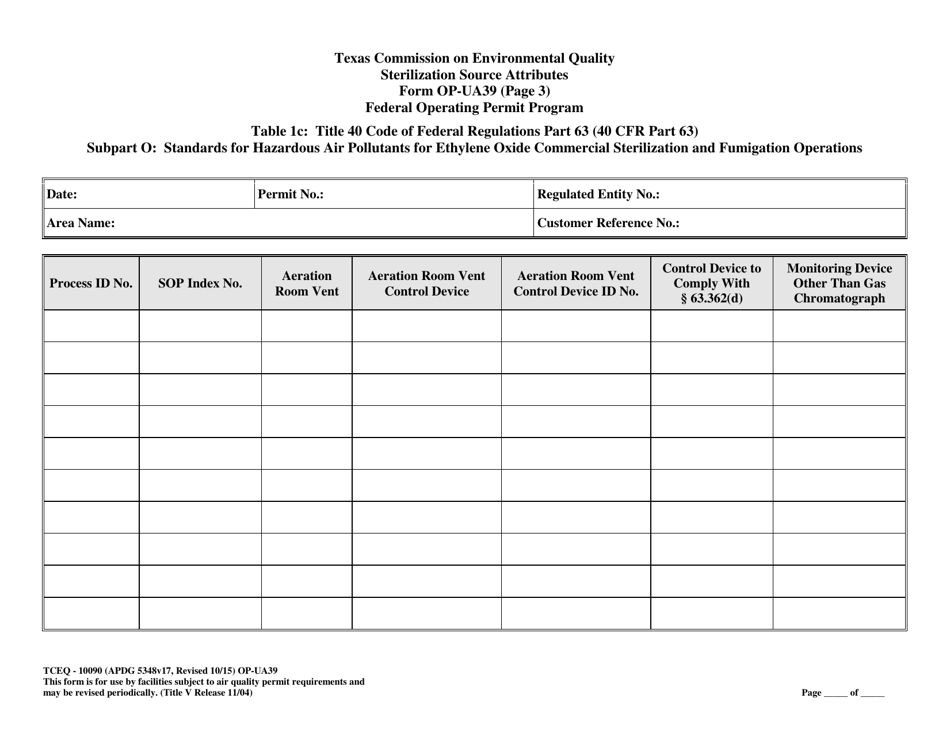

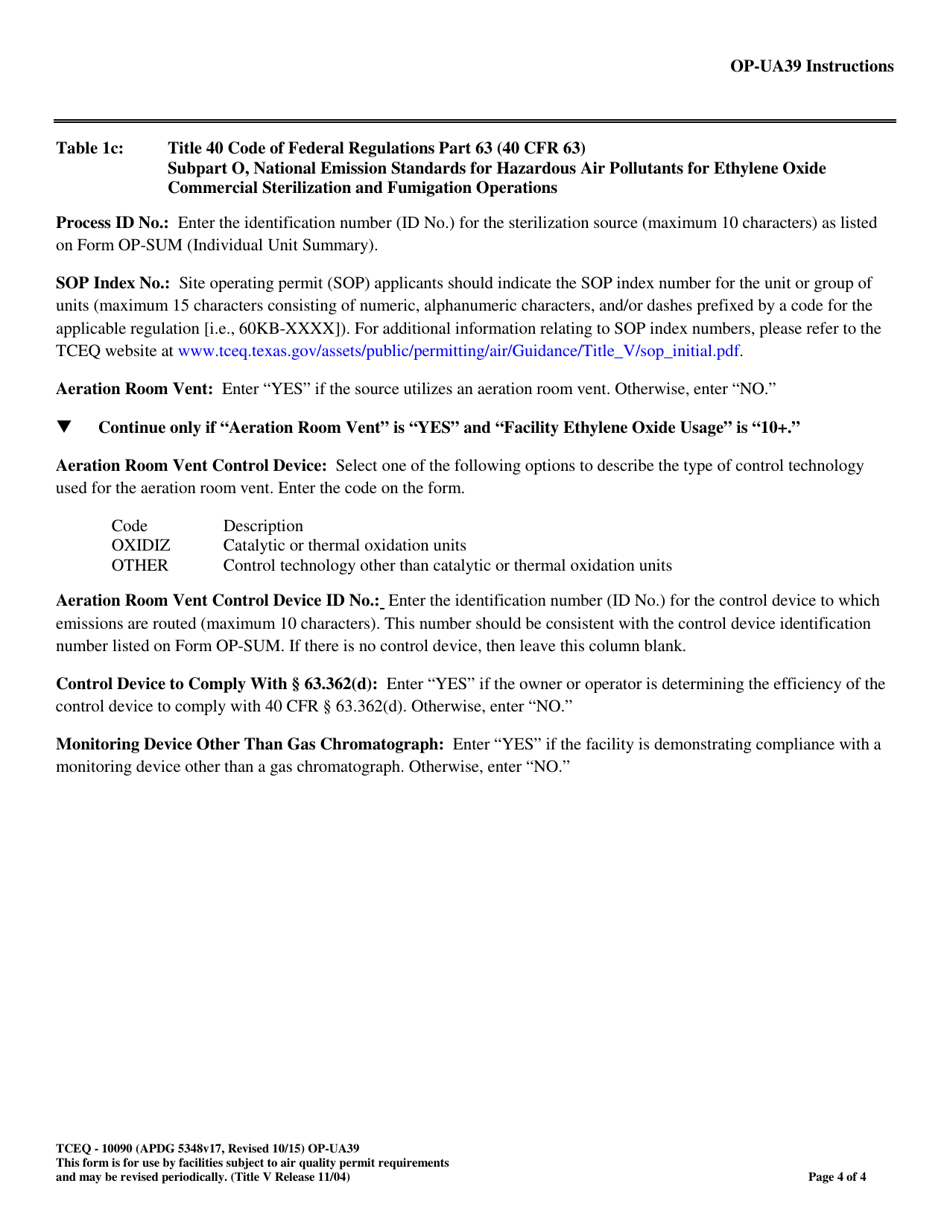

Table 1c:
Title 40 Code of Federal Regulations Part 63 (40 CFR 63)
Subpart O, National Emission Standards for Hazardous Air Pollutants for Ethylene Oxide
Commercial Sterilization and Fumigation Operations
Process ID No.: Enter the identification number (ID No.) for the sterilization source (maximum 10 characters) as listed
on Form OP-SUM (Individual Unit Summary).
SOP Index No.: Site operating permit (SOP) applicants should indicate the SOP index number for the unit or group of
units (maximum 15 characters consisting of numeric, alphanumeric characters, and/or dashes prefixed by a code for the
applicable regulation [i.e., 60KB-XXXX]). For additional information relating to SOP index numbers, please refer to the
TCEQ website at www.tceq.texas.gov/assets/public/permitting/air/Guidance/Title_V/sop_initial.pdf.
Aeration Room Vent: Enter “YES” if the source utilizes an aeration room vent. Otherwise, enter “NO.”
Continue only if “Aeration Room Vent” is “YES” and “Facility Ethylene Oxide Usage” is “10+.”
Aeration Room Vent Control Device: Select one of the following options to describe the type of control technology
used for the aeration room vent. Enter the code on the form.
Code
Description
OXIDIZ
Catalytic or thermal oxidation units
OTHER
Control technology other than catalytic or thermal oxidation units
Aeration Room Vent Control Device ID No.: Enter the identification number (ID No.) for the control device to which
emissions are routed (maximum 10 characters). This number should be consistent with the control device identification
number listed on Form OP-SUM. If there is no control device, then leave this column blank.
Control Device to Comply With § 63.362(d): Enter “YES” if the owner or operator is determining the efficiency of the
control device to comply with 40 CFR § 63.362(d). Otherwise, enter “NO.”
Monitoring Device Other Than Gas Chromatograph: Enter “YES” if the facility is demonstrating compliance with a
monitoring device other than a gas chromatograph. Otherwise, enter “NO.”
TCEQ - 10090 (APDG 5348v17, Revised 10/15) OP-UA39
This form is for use by facilities subject to air quality permit requirements
and may be revised periodically. (Title V Release 11/04)
Page 4 of 4
Texas Commission on Environmental Quality
Sterilization Source Attributes
Form OP-UA39 (Page 1)
Federal Operating Permit Program
Table 1a: Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63)
Subpart O: Standards for Hazardous Air Pollutants for Ethylene Oxide Commercial Sterilization and Fumigation Operations
Date:
Permit No.:
Regulated Entity No.:
Area Name:
Customer Reference No.:
Sterilization
Sterilization
Facility Ethylene
Sterilization
Chamber Vent
Process ID No.
SOP Index No.
Facility Type
Chamber Vent
Oxide Usage
Chamber Vent
Control Device ID
Control Device
No.
TCEQ - 10090 (APDG 5348v17, Revised 10/15) OP-UA39
This form is for use by facilities subject to air quality permit requirements
and may be revised periodically. (Title V Release 11/04)
Page _____ of _____
