Texas Commission on Environmental Quality
Form OP-UA4
Loading/Unloading Operations Attributes
General:
This form is used to provide a description and data pertaining to all loading or unloading operations with potentially
applicable requirements associated with a particular regulated entity (RN) number and application. Each table number,
along with the possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule.
If the rule on the table is not potentially applicable to a loading or unloading operation, then it should be left blank and
need not be submitted with the application. If the codes entered by the applicant show negative applicability to the rule or
sections of the rule represented on the table, then the applicant need not complete the remainder of the table(s) that
corresponds to the rule. Further instruction as to which questions should be answered and which questions should not be
answered are located in the “Specific” section of the instruction text. The following is included in this form:
Tables 1a -
1b:
Title 30 Texas Administrative Code Chapter 115 (30 TAC Chapter 115), Subchapter C:
Loading and Unloading of Volatile Organic Compounds
Table 2:
Title 40 Code of Federal Regulations Part 60 (40 CFR Part 60), Subpart XX: Standards of
Performance for Bulk Gasoline Terminals
Table 3:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart R: National
Emission Standards for Gasoline Distribution Facilities
Tables 4a - 4b:

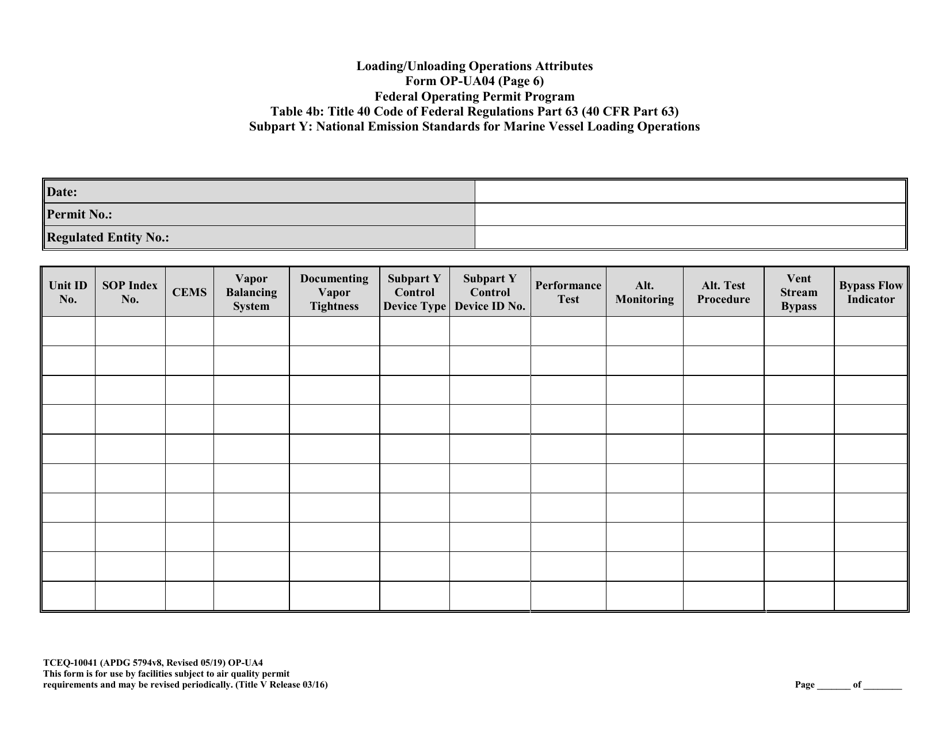

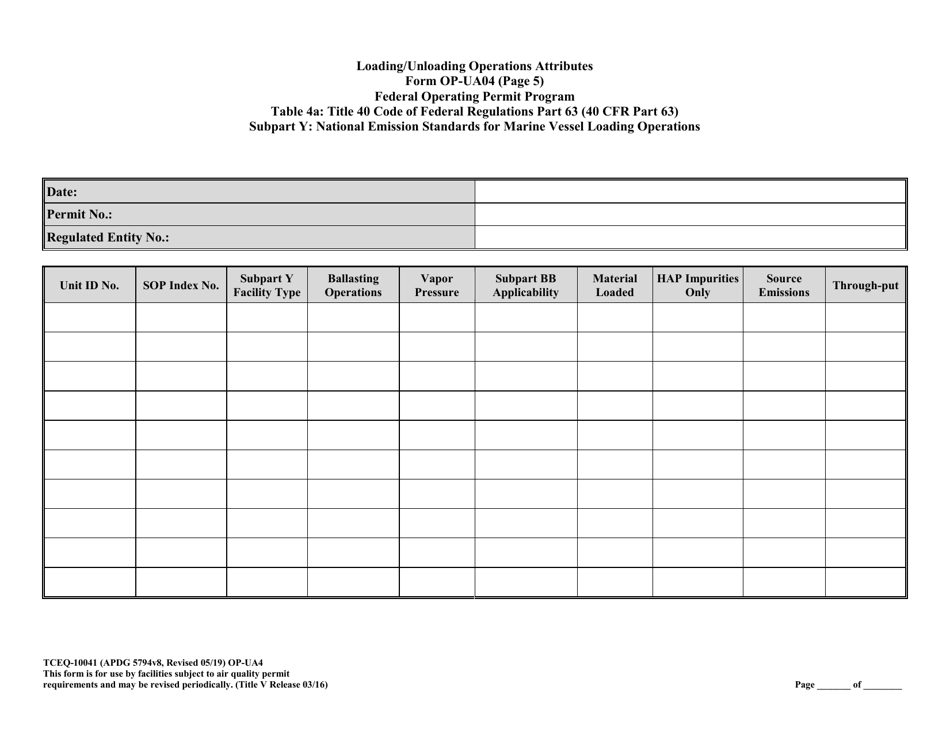

Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart Y: National
Emission Standards for Marine Vessel Loading Operations
Table 5:

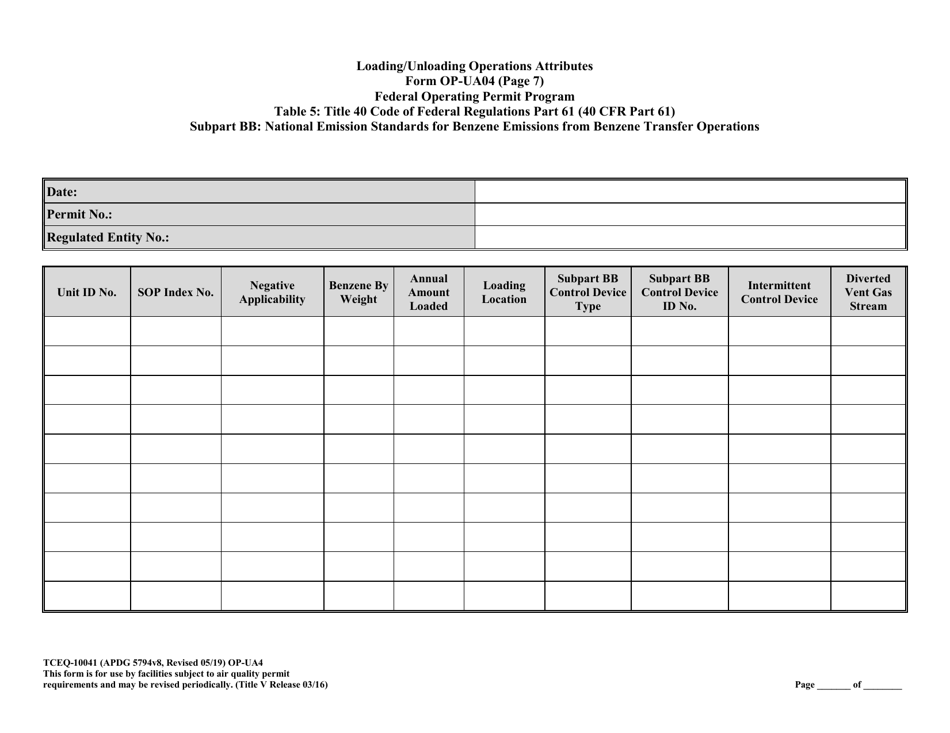

Title 40 Code of Federal Regulations Part 61 (40 CFR Part 61), Subpart BB: National
Emission Standards for Benzene Emissions from Benzene Transfer Operations
Table 6:

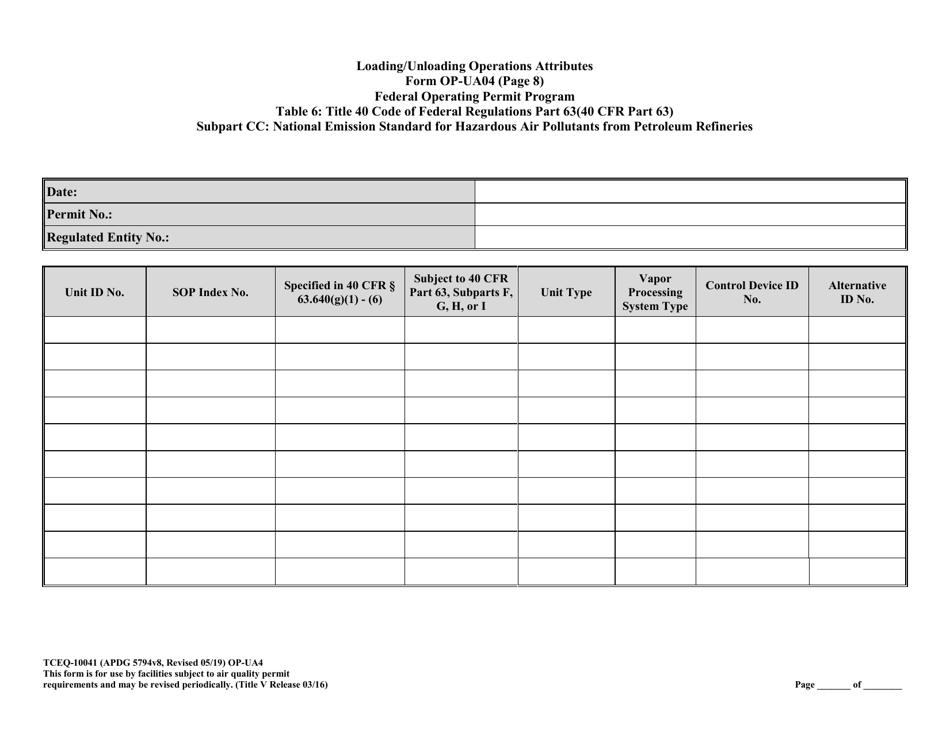

Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart CC: National
Emission Standard for Hazardous Air Pollutants from Petroleum Refineries
Tables 7a
-
7f:

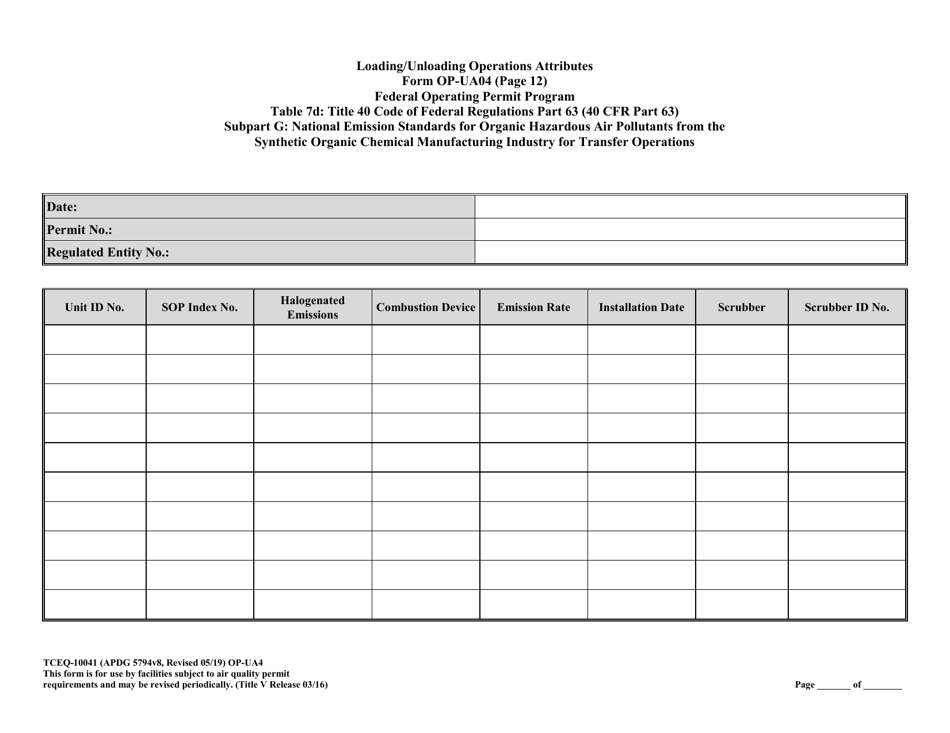

Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart G: National
Emission Standards for Organic Hazardous Air Pollutants from the Synthetic Organic
Chemical Manufacturing Industry for Transfer Operations
Table
8:

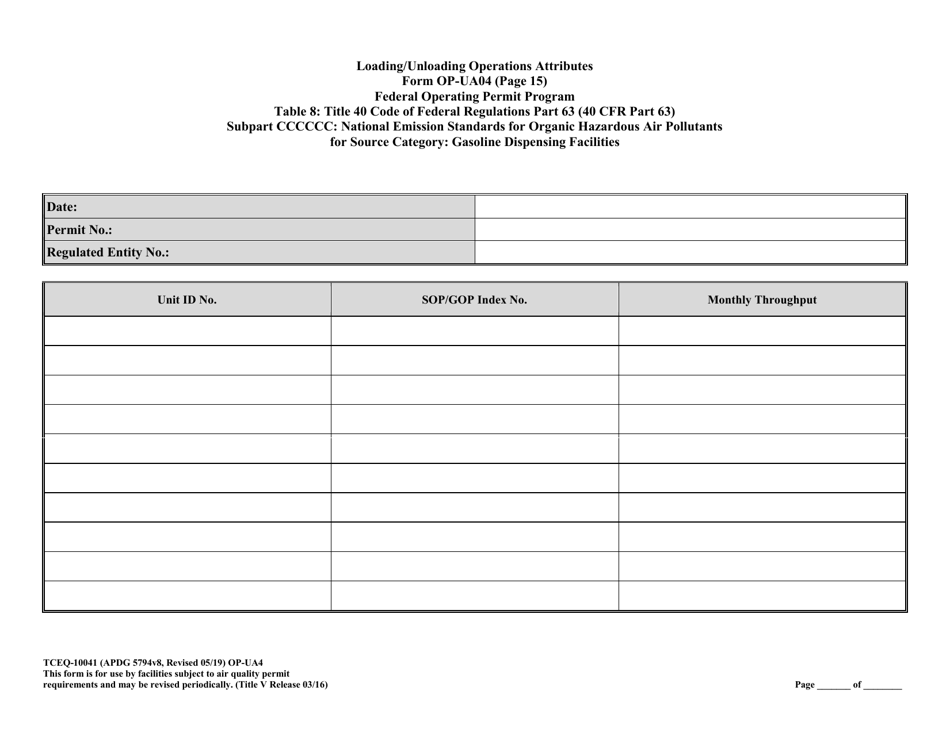

Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart CCCCCC:
National Emission Standards for Organic Hazardous Air Pollutants for Source Category:
Gasoline Dispensing Facilities
Tables 9a
-
9c:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart FFFF: National
Emission Standards for Hazardous Air Pollutants: Miscellaneous Organic Chemical
Manufacturing
Applications for a general operating permit (GOP) under Oil and Gas GOP Nos. 511 through 514 should contain this form
only if the application area is located in a county subject to 30 TAC Chapter 115.
The application area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the
purpose of identification for the initial submittal. The date of the initial form submittal must also be included and should
be consistent throughout the application (MM/DD/YYYY). Leave the permit number blank for the initial form
submittal. If this form is included as part of the permit revision process, enter the permit number assigned by the TCEQ,
the area name (from Form OP-1), and the date of the revision submittal.
TCEQ-10041 (APDG 5794v8, Revised 05/19) OP-UA4
This form is for use by facilities subject to air quality permit
requirements and may be revised periodically. (Title V Release 03/16)
Page 1 of 24
Texas Commission on Environmental Quality
Form OP-UA4
Loading/Unloading Operations Attributes
General:
This form is used to provide a description and data pertaining to all loading or unloading operations with potentially
applicable requirements associated with a particular regulated entity (RN) number and application. Each table number,
along with the possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule.
If the rule on the table is not potentially applicable to a loading or unloading operation, then it should be left blank and
need not be submitted with the application. If the codes entered by the applicant show negative applicability to the rule or
sections of the rule represented on the table, then the applicant need not complete the remainder of the table(s) that
corresponds to the rule. Further instruction as to which questions should be answered and which questions should not be
answered are located in the “Specific” section of the instruction text. The following is included in this form:
Tables 1a -
1b:
Title 30 Texas Administrative Code Chapter 115 (30 TAC Chapter 115), Subchapter C:
Loading and Unloading of Volatile Organic Compounds
Table 2:
Title 40 Code of Federal Regulations Part 60 (40 CFR Part 60), Subpart XX: Standards of
Performance for Bulk Gasoline Terminals
Table 3:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart R: National
Emission Standards for Gasoline Distribution Facilities
Tables 4a - 4b:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart Y: National
Emission Standards for Marine Vessel Loading Operations
Table 5:
Title 40 Code of Federal Regulations Part 61 (40 CFR Part 61), Subpart BB: National
Emission Standards for Benzene Emissions from Benzene Transfer Operations
Table 6:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart CC: National
Emission Standard for Hazardous Air Pollutants from Petroleum Refineries
Tables 7a
-
7f:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart G: National
Emission Standards for Organic Hazardous Air Pollutants from the Synthetic Organic
Chemical Manufacturing Industry for Transfer Operations
Table
8:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart CCCCCC:
National Emission Standards for Organic Hazardous Air Pollutants for Source Category:
Gasoline Dispensing Facilities
Tables 9a
-
9c:
Title 40 Code of Federal Regulations Part 63 (40 CFR Part 63), Subpart FFFF: National
Emission Standards for Hazardous Air Pollutants: Miscellaneous Organic Chemical
Manufacturing
Applications for a general operating permit (GOP) under Oil and Gas GOP Nos. 511 through 514 should contain this form
only if the application area is located in a county subject to 30 TAC Chapter 115.
The application area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the
purpose of identification for the initial submittal. The date of the initial form submittal must also be included and should
be consistent throughout the application (MM/DD/YYYY). Leave the permit number blank for the initial form
submittal. If this form is included as part of the permit revision process, enter the permit number assigned by the TCEQ,
the area name (from Form OP-1), and the date of the revision submittal.
TCEQ-10041 (APDG 5794v8, Revised 05/19) OP-UA4
This form is for use by facilities subject to air quality permit
requirements and may be revised periodically. (Title V Release 03/16)
Page 1 of 24

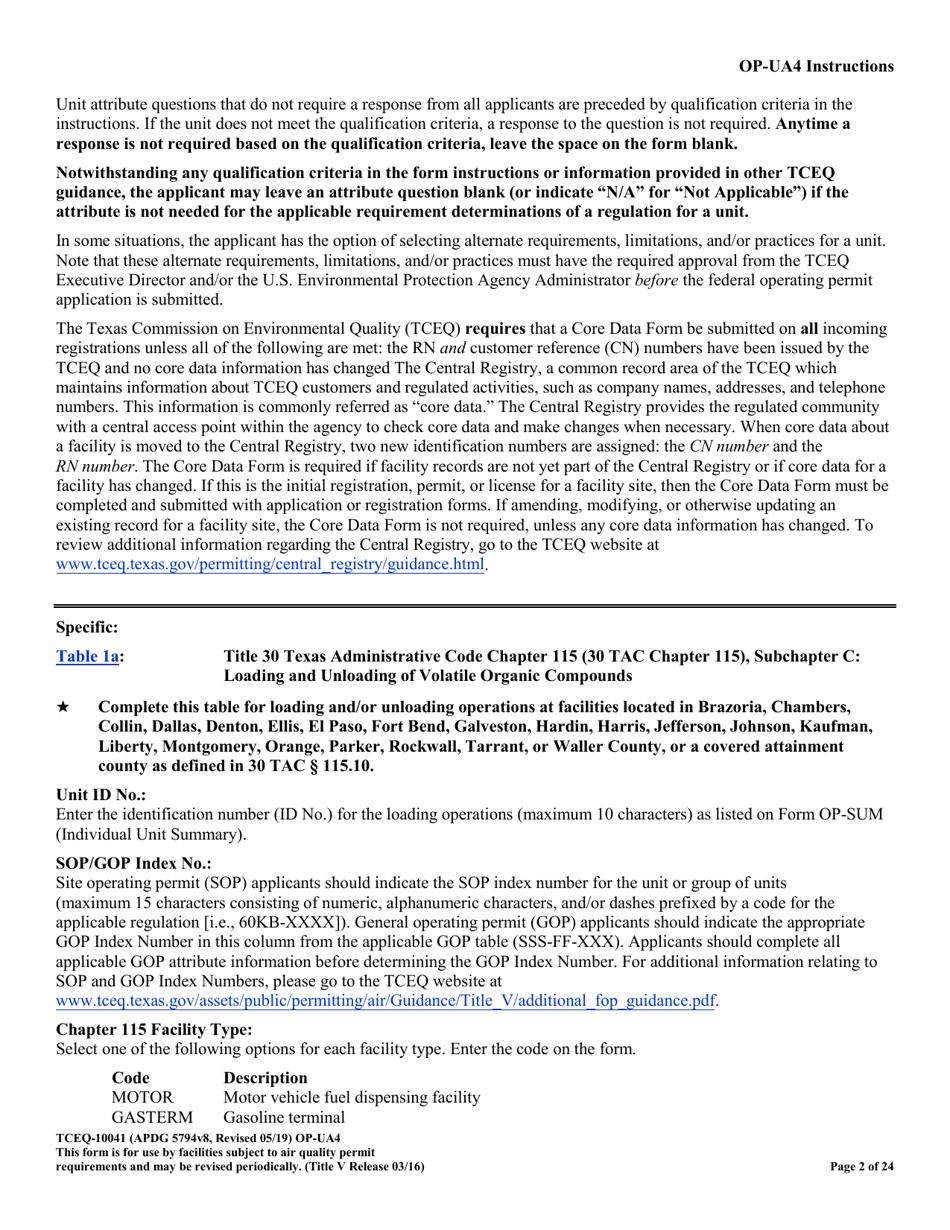

OP-UA4 Instructions
Unit attribute questions that do not require a response from all applicants are preceded by qualification criteria in the
instructions. If the unit does not meet the qualification criteria, a response to the question is not required. Anytime a
response is not required based on the qualification criteria, leave the space on the form blank.
Notwithstanding any qualification criteria in the form instructions or information provided in other TCEQ
guidance, the applicant may leave an attribute question blank (or indicate “N/A” for “Not Applicable”) if the
attribute is not needed for the applicable requirement determinations of a regulation for a unit.
In some situations, the applicant has the option of selecting alternate requirements, limitations, and/or practices for a unit.
Note that these alternate requirements, limitations, and/or practices must have the required approval from the TCEQ
Executive Director and/or the U.S. Environmental Protection Agency Administrator before the federal operating permit
application is submitted.
The Texas Commission on Environmental Quality (TCEQ) requires that a Core Data Form be submitted on all incoming
registrations unless all of the following are met: the RN and customer reference (CN) numbers have been issued by the
TCEQ and no core data information has changed The Central Registry, a common record area of the TCEQ which
maintains information about TCEQ customers and regulated activities, such as company names, addresses, and telephone
numbers. This information is commonly referred as “core data.” The Central Registry provides the regulated community
with a central access point within the agency to check core data and make changes when necessary. When core data about
a facility is moved to the Central Registry, two new identification numbers are assigned: the CN number and the
RN number. The Core Data Form is required if facility records are not yet part of the Central Registry or if core data for a
facility has changed. If this is the initial registration, permit, or license for a facility site, then the Core Data Form must be
completed and submitted with application or registration forms. If amending, modifying, or otherwise updating an
existing record for a facility site, the Core Data Form is not required, unless any core data information has changed. To
review additional information regarding the Central Registry, go to the TCEQ website at
www.tceq.texas.gov/permitting/central_registry/guidance.html.
Specific:
Table
1a:
Title 30 Texas Administrative Code Chapter 115 (30 TAC Chapter 115), Subchapter C:
Loading and Unloading of Volatile Organic Compounds
Complete this table for loading and/or unloading operations at facilities located in Brazoria, Chambers,
Collin, Dallas, Denton, Ellis, El Paso, Fort Bend, Galveston, Hardin, Harris, Jefferson, Johnson, Kaufman,
Liberty, Montgomery, Orange, Parker, Rockwall, Tarrant, or Waller County, or a covered attainment
county as defined in 30 TAC § 115.10.
Unit ID No.:
Enter the identification number (ID No.) for the loading operations (maximum 10 characters) as listed on Form OP-SUM
(Individual Unit Summary).
SOP/GOP Index No.:
Site operating permit (SOP) applicants should indicate the SOP index number for the unit or group of units
(maximum 15 characters consisting of numeric, alphanumeric characters, and/or dashes prefixed by a code for the
applicable regulation [i.e., 60KB-XXXX]). General operating permit (GOP) applicants should indicate the appropriate
GOP Index Number in this column from the applicable GOP table (SSS-FF-XXX). Applicants should complete all
applicable GOP attribute information before determining the GOP Index Number. For additional information relating to
SOP and GOP Index Numbers, please go to the TCEQ website at
www.tceq.texas.gov/assets/public/permitting/air/Guidance/Title_V/additional_fop_guidance.pdf.
Chapter 115 Facility Type:
Select one of the following options for each facility type. Enter the code on the form.
Code
Description
MOTOR
Motor vehicle fuel dispensing facility
GASTERM
Gasoline terminal
TCEQ-10041 (APDG 5794v8, Revised 05/19) OP-UA4
This form is for use by facilities subject to air quality permit
requirements and may be revised periodically. (Title V Release 03/16)
Page 2 of 24

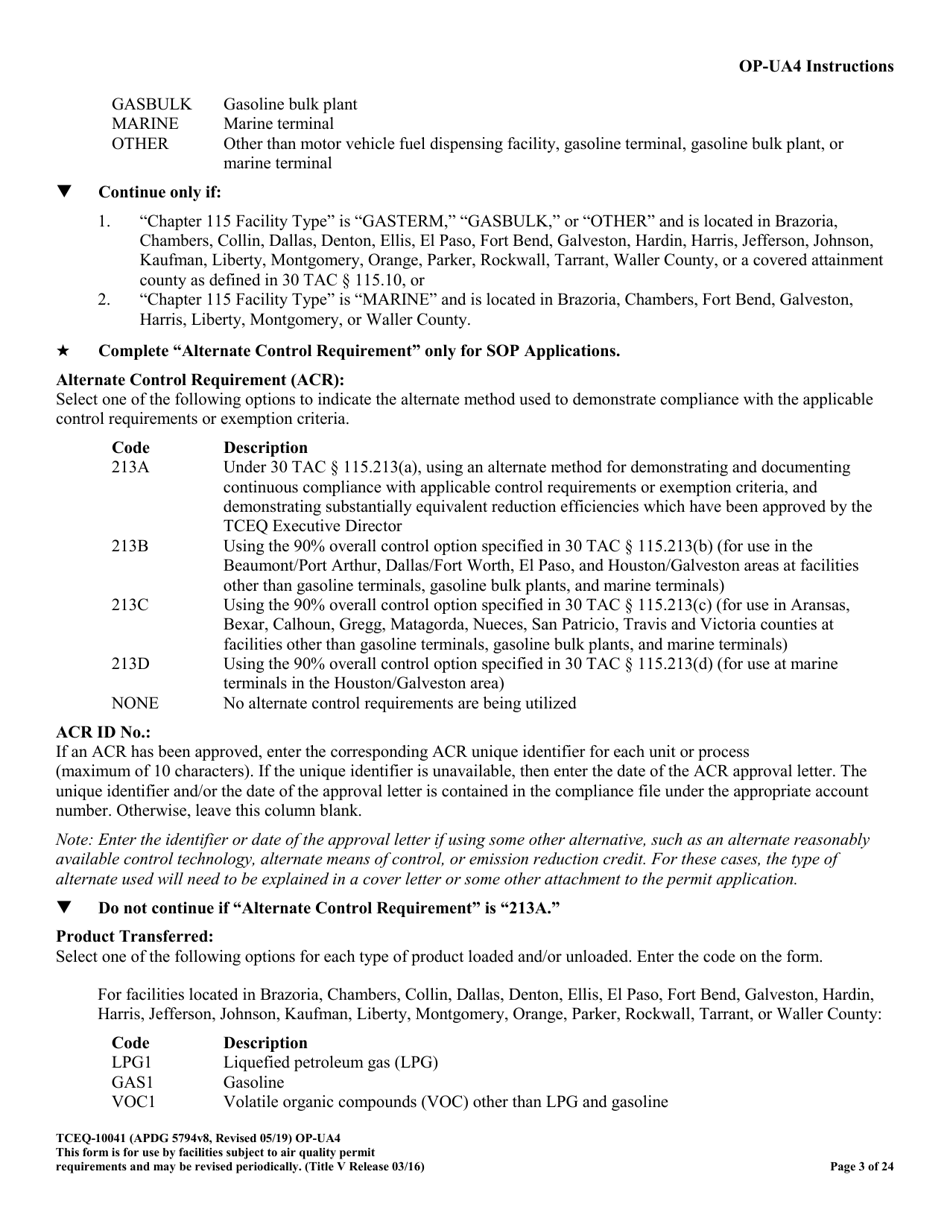

OP-UA4 Instructions
GASBULK
Gasoline bulk plant
MARINE
Marine terminal
OTHER
Other than motor vehicle fuel dispensing facility, gasoline terminal, gasoline bulk plant, or
marine terminal
Continue only if:
1.
“Chapter 115 Facility Type” is “GASTERM,” “GASBULK,” or “OTHER” and is located in Brazoria,
Chambers, Collin, Dallas, Denton, Ellis, El Paso, Fort Bend, Galveston, Hardin, Harris, Jefferson, Johnson,
Kaufman, Liberty, Montgomery, Orange, Parker, Rockwall, Tarrant, Waller County, or a covered attainment
county as defined in 30 TAC § 115.10, or
2.
“Chapter 115 Facility Type” is “MARINE” and is located in Brazoria, Chambers, Fort Bend, Galveston,
Harris, Liberty, Montgomery, or Waller County.
Complete “Alternate Control Requirement” only for SOP Applications.
Alternate Control Requirement (ACR):
Select one of the following options to indicate the alternate method used to demonstrate compliance with the applicable
control requirements or exemption criteria.
Code
Description
213A
Under 30 TAC § 115.213(a), using an alternate method for demonstrating and documenting
continuous compliance with applicable control requirements or exemption criteria, and
demonstrating substantially equivalent reduction efficiencies which have been approved by the
TCEQ Executive Director
213B
Using the 90% overall control option specified in 30 TAC § 115.213(b) (for use in the
Beaumont/Port Arthur, Dallas/Fort Worth, El Paso, and Houston/Galveston areas at facilities
other than gasoline terminals, gasoline bulk plants, and marine terminals)
213C
Using the 90% overall control option specified in 30 TAC § 115.213(c) (for use in Aransas,
Bexar, Calhoun, Gregg, Matagorda, Nueces, San Patricio, Travis and Victoria counties at
facilities other than gasoline terminals, gasoline bulk plants, and marine terminals)
213D
Using the 90% overall control option specified in 30 TAC § 115.213(d) (for use at marine
terminals in the Houston/Galveston area)
NONE
No alternate control requirements are being utilized
ACR ID No.:
If an ACR has been approved, enter the corresponding ACR unique identifier for each unit or process
(maximum of 10 characters). If the unique identifier is unavailable, then enter the date of the ACR approval letter. The
unique identifier and/or the date of the approval letter is contained in the compliance file under the appropriate account
number. Otherwise, leave this column blank.
Note: Enter the identifier or date of the approval letter if using some other alternative, such as an alternate reasonably
available control technology, alternate means of control, or emission reduction credit. For these cases, the type of
alternate used will need to be explained in a cover letter or some other attachment to the permit application.
Do not continue if “Alternate Control Requirement” is “213A.”
Product Transferred:
Select one of the following options for each type of product loaded and/or unloaded. Enter the code on the form.
For facilities located in Brazoria, Chambers, Collin, Dallas, Denton, Ellis, El Paso, Fort Bend, Galveston, Hardin,
Harris, Jefferson, Johnson, Kaufman, Liberty, Montgomery, Orange, Parker, Rockwall, Tarrant, or Waller County:
Code
Description
LPG1
Liquefied petroleum gas (LPG)
GAS1
Gasoline
VOC1
Volatile organic compounds (VOC) other than LPG and gasoline
TCEQ-10041 (APDG 5794v8, Revised 05/19) OP-UA4
This form is for use by facilities subject to air quality permit
requirements and may be revised periodically. (Title V Release 03/16)
Page 3 of 24
OP-UA4 Instructions

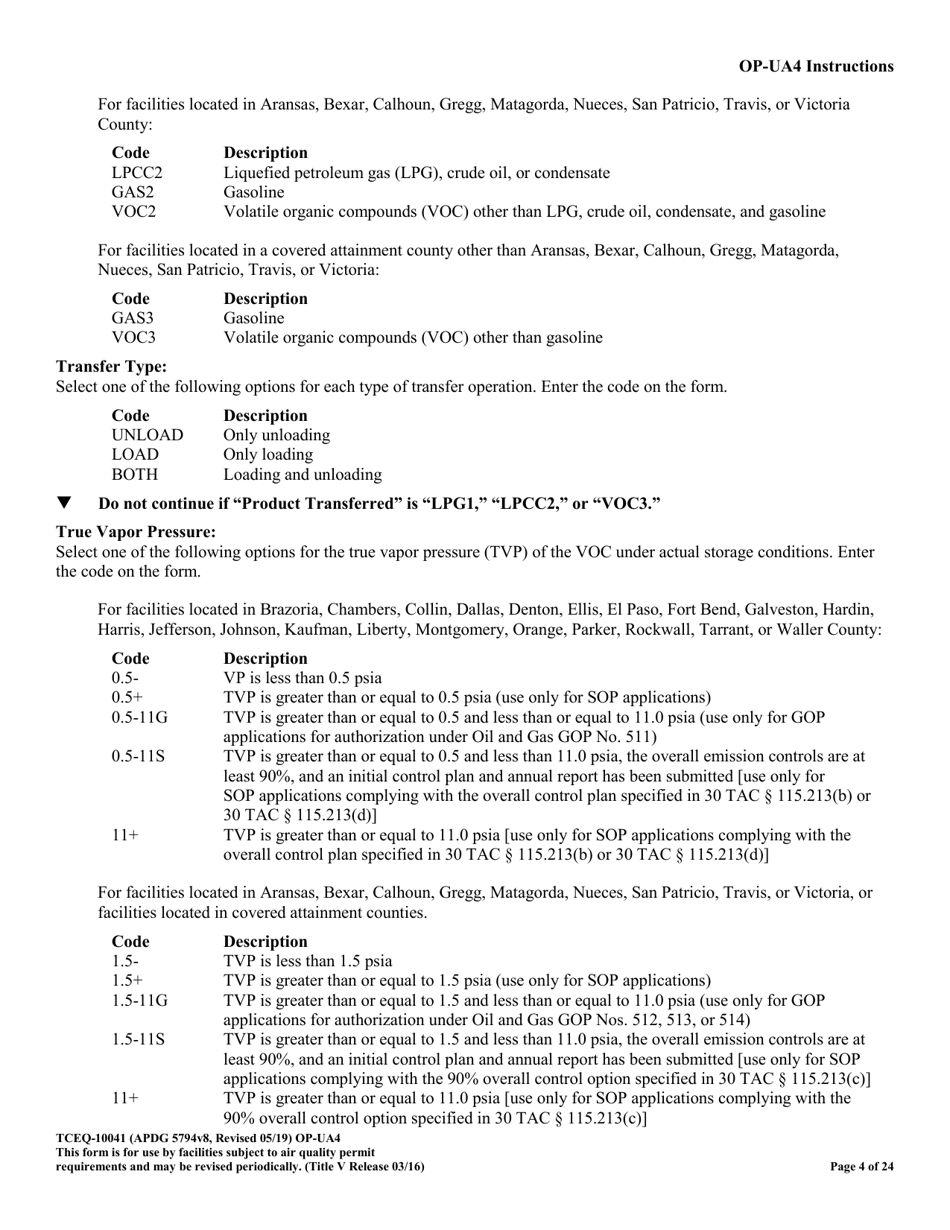

For facilities located in Aransas, Bexar, Calhoun, Gregg, Matagorda, Nueces, San Patricio, Travis, or Victoria
County:
Code
Description
LPCC2
Liquefied petroleum gas (LPG), crude oil, or condensate
GAS2
Gasoline
VOC2
Volatile organic compounds (VOC) other than LPG, crude oil, condensate, and gasoline
For facilities located in a covered attainment county other than Aransas, Bexar, Calhoun, Gregg, Matagorda,
Nueces, San Patricio, Travis, or Victoria:
Code
Description
GAS3
Gasoline
VOC3
Volatile organic compounds (VOC) other than gasoline
Transfer Type:
Select one of the following options for each type of transfer operation. Enter the code on the form.
Code
Description
UNLOAD
Only unloading
LOAD
Only loading
BOTH
Loading and unloading
Do not continue if “Product Transferred” is “LPG1,” “LPCC2,” or “VOC3.”
True Vapor Pressure:
Select one of the following options for the true vapor pressure (TVP) of the VOC under actual storage conditions. Enter
the code on the form.
For facilities located in Brazoria, Chambers, Collin, Dallas, Denton, Ellis, El Paso, Fort Bend, Galveston, Hardin,
Harris, Jefferson, Johnson, Kaufman, Liberty, Montgomery, Orange, Parker, Rockwall, Tarrant, or Waller County:
Code
Description
0.5-
VP is less than 0.5 psia
0.5+
TVP is greater than or equal to 0.5 psia (use only for SOP applications)
0.5-11G
TVP is greater than or equal to 0.5 and less than or equal to 11.0 psia (use only for GOP
applications for authorization under Oil and Gas GOP No. 511)
0.5-11S
TVP is greater than or equal to 0.5 and less than 11.0 psia, the overall emission controls are at
least 90%, and an initial control plan and annual report has been submitted [use only for
SOP applications complying with the overall control plan specified in 30 TAC § 115.213(b) or
30 TAC § 115.213(d)]
11+
TVP is greater than or equal to 11.0 psia [use only for SOP applications complying with the
overall control plan specified in 30 TAC § 115.213(b) or 30 TAC § 115.213(d)]
For facilities located in Aransas, Bexar, Calhoun, Gregg, Matagorda, Nueces, San Patricio, Travis, or Victoria, or
facilities located in covered attainment counties.
Code
Description
1.5-
TVP is less than 1.5 psia
1.5+
TVP is greater than or equal to 1.5 psia (use only for SOP applications)
1.5-11G
TVP is greater than or equal to 1.5 and less than or equal to 11.0 psia (use only for GOP
applications for authorization under Oil and Gas GOP Nos. 512, 513, or 514)
1.5-11S
TVP is greater than or equal to 1.5 and less than 11.0 psia, the overall emission controls are at
least 90%, and an initial control plan and annual report has been submitted [use only for SOP
applications complying with the 90% overall control option specified in 30 TAC § 115.213(c)]
11+
TVP is greater than or equal to 11.0 psia [use only for SOP applications complying with the
90% overall control option specified in 30 TAC § 115.213(c)]
TCEQ-10041 (APDG 5794v8, Revised 05/19) OP-UA4
This form is for use by facilities subject to air quality permit
requirements and may be revised periodically. (Title V Release 03/16)
Page 4 of 24
OP-UA4 Instructions

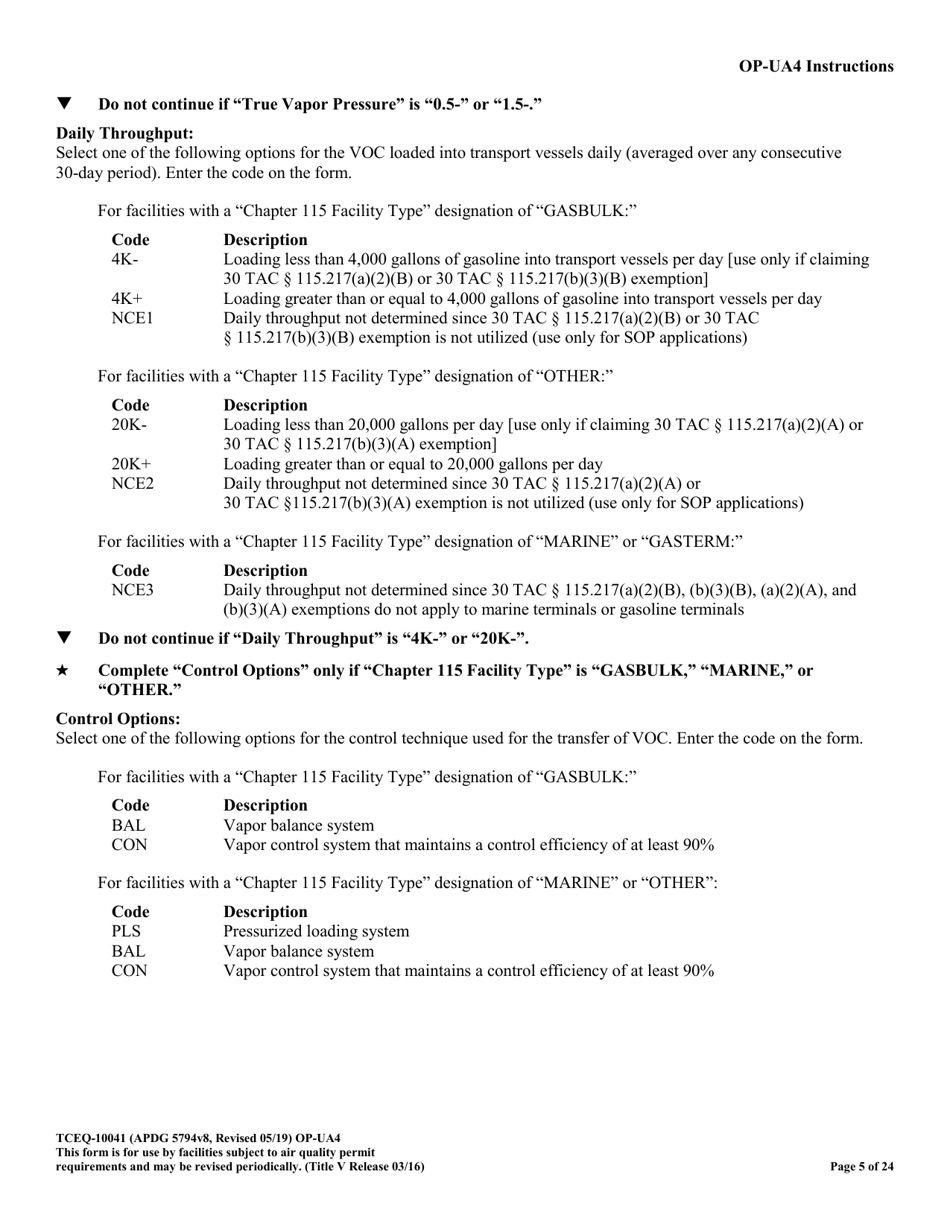

Do not continue if “True Vapor Pressure” is “0.5-” or “1.5-.”
Daily Throughput:
Select one of the following options for the VOC loaded into transport vessels daily (averaged over any consecutive
30-day period). Enter the code on the form.
For facilities with a “Chapter 115 Facility Type” designation of “GASBULK:”
Code
Description
4K-
Loading less than 4,000 gallons of gasoline into transport vessels per day [use only if claiming
30 TAC § 115.217(a)(2)(B) or 30 TAC § 115.217(b)(3)(B) exemption]
4K+
Loading greater than or equal to 4,000 gallons of gasoline into transport vessels per day
NCE1
Daily throughput not determined since 30 TAC § 115.217(a)(2)(B) or 30 TAC
§ 115.217(b)(3)(B) exemption is not utilized (use only for SOP applications)
For facilities with a “Chapter 115 Facility Type” designation of “OTHER:”
Code
Description
20K-
Loading less than 20,000 gallons per day [use only if claiming 30 TAC § 115.217(a)(2)(A) or
30 TAC § 115.217(b)(3)(A) exemption]
20K+
Loading greater than or equal to 20,000 gallons per day
NCE2
Daily throughput not determined since 30 TAC § 115.217(a)(2)(A) or
30 TAC §115.217(b)(3)(A) exemption is not utilized (use only for SOP applications)
For facilities with a “Chapter 115 Facility Type” designation of “MARINE” or “GASTERM:”
Code
Description
NCE3
Daily throughput not determined since 30 TAC § 115.217(a)(2)(B), (b)(3)(B), (a)(2)(A), and
(b)(3)(A) exemptions do not apply to marine terminals or gasoline terminals
Do not continue if “Daily Throughput” is “4K-” or “20K-”.
Complete “Control Options” only if “Chapter 115 Facility Type” is “GASBULK,” “MARINE,” or
“OTHER.”
Control Options:
Select one of the following options for the control technique used for the transfer of VOC. Enter the code on the form.
For facilities with a “Chapter 115 Facility Type” designation of “GASBULK:”
Code
Description
BAL
Vapor balance system
CON
Vapor control system that maintains a control efficiency of at least 90%
For facilities with a “Chapter 115 Facility Type” designation of “MARINE” or “OTHER”:
Code
Description
PLS
Pressurized loading system
BAL
Vapor balance system
CON
Vapor control system that maintains a control efficiency of at least 90%
TCEQ-10041 (APDG 5794v8, Revised 05/19) OP-UA4
This form is for use by facilities subject to air quality permit
requirements and may be revised periodically. (Title V Release 03/16)
Page 5 of 24
