Texas Commission on Environmental Quality
Form OP-UA49
Vacuum Producing System Attributes
General:
This form is used to provide a description and data pertaining to all vacuum-producing systems in petroleum refineries
with potentially applicable requirements associated with a particular account number and application. Each table number,
along with the possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule.
If the table is not applicable to a vacuum-producing system in a petroleum refinery, then it should be left blank and need
not be submitted with the application. If the codes entered by the applicant show negative applicability to that rule or
sections of that rule, then the applicant does not have to complete the remainder of the tables that correspond to the rule in
question. Further instruction as to which questions should be answered and which questions should not be answered are
located in the “Specific” section of the instruction text. The following is a table included in this form:
Table 1:
Title 30 Texas Administrative Code Chapter 115 (30 TAC § 115)
Subchapter D: Process Unit Turnaround and Vacuum-Producing Systems in Petroleum Refineries
The Texas Commission on Environmental Quality (TCEQ) primary account number (XX-XXXX-X) and the application
area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the purpose of
identification for the initial submittal. The date of the initial form submittal must also be included and should be consistent
throughout the application (MM/DD/YYYY). Leave the permit number blank for the initial form submittal. If this form is
included as part of the permit revision process, enter the permit number assigned by the TCEQ the area name (from Form
OP-1), the date of the revision submittal, and the account number.
Unit attribute questions that do not require a response from all applicants are preceded by qualification criteria in the
instructions. If the unit does not meet the qualification criteria, a response to the question is not required. Anytime a
response is not required based on the qualification criteria, leave the space on the form blank.
Notwithstanding any qualification criteria in the form instructions or information provided in other TCEQ guidance, the
applicant may leave an attribute question blank (or indicate “N/A” for “Not Applicable”) if the attribute is not needed for
the applicable requirement determinations of a regulation for a unit.
In some situations, the applicant has the option of selecting alternate requirements, limitations, and/or practices for a unit.
Note that these alternate requirements, limitations, and/or practices must have the required approval from the TCEQ
Executive Director and/or the U.S. Environmental Protection Agency (EPA) Administrator before the federal operating
permit (FOP) application is submitted.
TCEQ - 10292 (APDG6009v1, revised 03/19) OP-UA49
This form is for use by facilities subject to air quality permit requirement and
may be revised periodically. (Title V release 10/99)
Page 1 of 4
Texas Commission on Environmental Quality
Form OP-UA49
Vacuum Producing System Attributes
General:
This form is used to provide a description and data pertaining to all vacuum-producing systems in petroleum refineries
with potentially applicable requirements associated with a particular account number and application. Each table number,
along with the possibility of a corresponding letter (i.e., Table 1a, Table 1b), corresponds to a certain state or federal rule.
If the table is not applicable to a vacuum-producing system in a petroleum refinery, then it should be left blank and need
not be submitted with the application. If the codes entered by the applicant show negative applicability to that rule or
sections of that rule, then the applicant does not have to complete the remainder of the tables that correspond to the rule in
question. Further instruction as to which questions should be answered and which questions should not be answered are
located in the “Specific” section of the instruction text. The following is a table included in this form:
Table 1:
Title 30 Texas Administrative Code Chapter 115 (30 TAC § 115)
Subchapter D: Process Unit Turnaround and Vacuum-Producing Systems in Petroleum Refineries
The Texas Commission on Environmental Quality (TCEQ) primary account number (XX-XXXX-X) and the application
area name from Form OP-1 (Site Information Summary) must appear in the header of each page for the purpose of
identification for the initial submittal. The date of the initial form submittal must also be included and should be consistent
throughout the application (MM/DD/YYYY). Leave the permit number blank for the initial form submittal. If this form is
included as part of the permit revision process, enter the permit number assigned by the TCEQ the area name (from Form
OP-1), the date of the revision submittal, and the account number.
Unit attribute questions that do not require a response from all applicants are preceded by qualification criteria in the
instructions. If the unit does not meet the qualification criteria, a response to the question is not required. Anytime a
response is not required based on the qualification criteria, leave the space on the form blank.
Notwithstanding any qualification criteria in the form instructions or information provided in other TCEQ guidance, the
applicant may leave an attribute question blank (or indicate “N/A” for “Not Applicable”) if the attribute is not needed for
the applicable requirement determinations of a regulation for a unit.
In some situations, the applicant has the option of selecting alternate requirements, limitations, and/or practices for a unit.
Note that these alternate requirements, limitations, and/or practices must have the required approval from the TCEQ
Executive Director and/or the U.S. Environmental Protection Agency (EPA) Administrator before the federal operating
permit (FOP) application is submitted.
TCEQ - 10292 (APDG6009v1, revised 03/19) OP-UA49
This form is for use by facilities subject to air quality permit requirement and
may be revised periodically. (Title V release 10/99)
Page 1 of 4

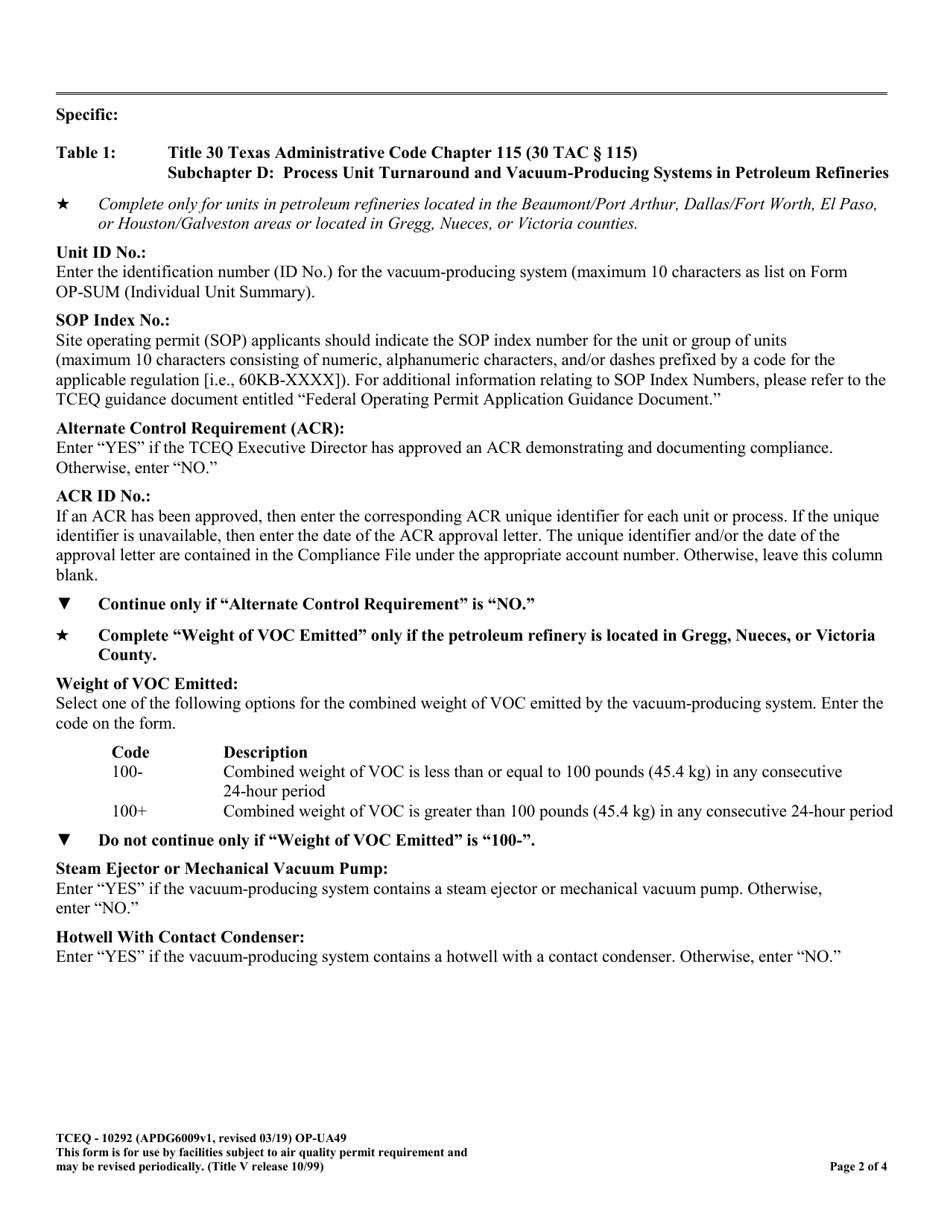

Specific:
Table 1:
Title 30 Texas Administrative Code Chapter 115 (30 TAC § 115)
Subchapter D: Process Unit Turnaround and Vacuum-Producing Systems in Petroleum Refineries
Complete only for units in petroleum refineries located in the Beaumont/Port Arthur, Dallas/Fort Worth, El Paso,
or Houston/Galveston areas or located in Gregg, Nueces, or Victoria counties.
Unit ID No.:
Enter the identification number (ID No.) for the vacuum-producing system (maximum 10 characters as list on Form
OP-SUM (Individual Unit Summary).
SOP Index No.:
Site operating permit (SOP) applicants should indicate the SOP index number for the unit or group of units
(maximum 10 characters consisting of numeric, alphanumeric characters, and/or dashes prefixed by a code for the
applicable regulation [i.e., 60KB-XXXX]). For additional information relating to SOP Index Numbers, please refer to the
TCEQ guidance document entitled “Federal Operating Permit Application Guidance Document.”
Alternate Control Requirement (ACR):
Enter “YES” if the TCEQ Executive Director has approved an ACR demonstrating and documenting compliance.
Otherwise, enter “NO.”
ACR ID No.:
If an ACR has been approved, then enter the corresponding ACR unique identifier for each unit or process. If the unique
identifier is unavailable, then enter the date of the ACR approval letter. The unique identifier and/or the date of the
approval letter are contained in the Compliance File under the appropriate account number. Otherwise, leave this column
blank.
Continue only if “Alternate Control Requirement” is “NO.”
Complete “Weight of VOC Emitted” only if the petroleum refinery is located in Gregg, Nueces, or Victoria
County.
Weight of VOC Emitted:
Select one of the following options for the combined weight of VOC emitted by the vacuum-producing system. Enter the
code on the form.
Code
Description
100-
Combined weight of VOC is less than or equal to 100 pounds (45.4 kg) in any consecutive
24-hour period
100+
Combined weight of VOC is greater than 100 pounds (45.4 kg) in any consecutive 24-hour period
Do not continue only if “Weight of VOC Emitted” is “100-”.
Steam Ejector or Mechanical Vacuum Pump:
Enter “YES” if the vacuum-producing system contains a steam ejector or mechanical vacuum pump. Otherwise,
enter “NO.”
Hotwell With Contact Condenser:
Enter “YES” if the vacuum-producing system contains a hotwell with a contact condenser. Otherwise, enter “NO.”
TCEQ - 10292 (APDG6009v1, revised 03/19) OP-UA49
This form is for use by facilities subject to air quality permit requirement and
may be revised periodically. (Title V release 10/99)
Page 2 of 4

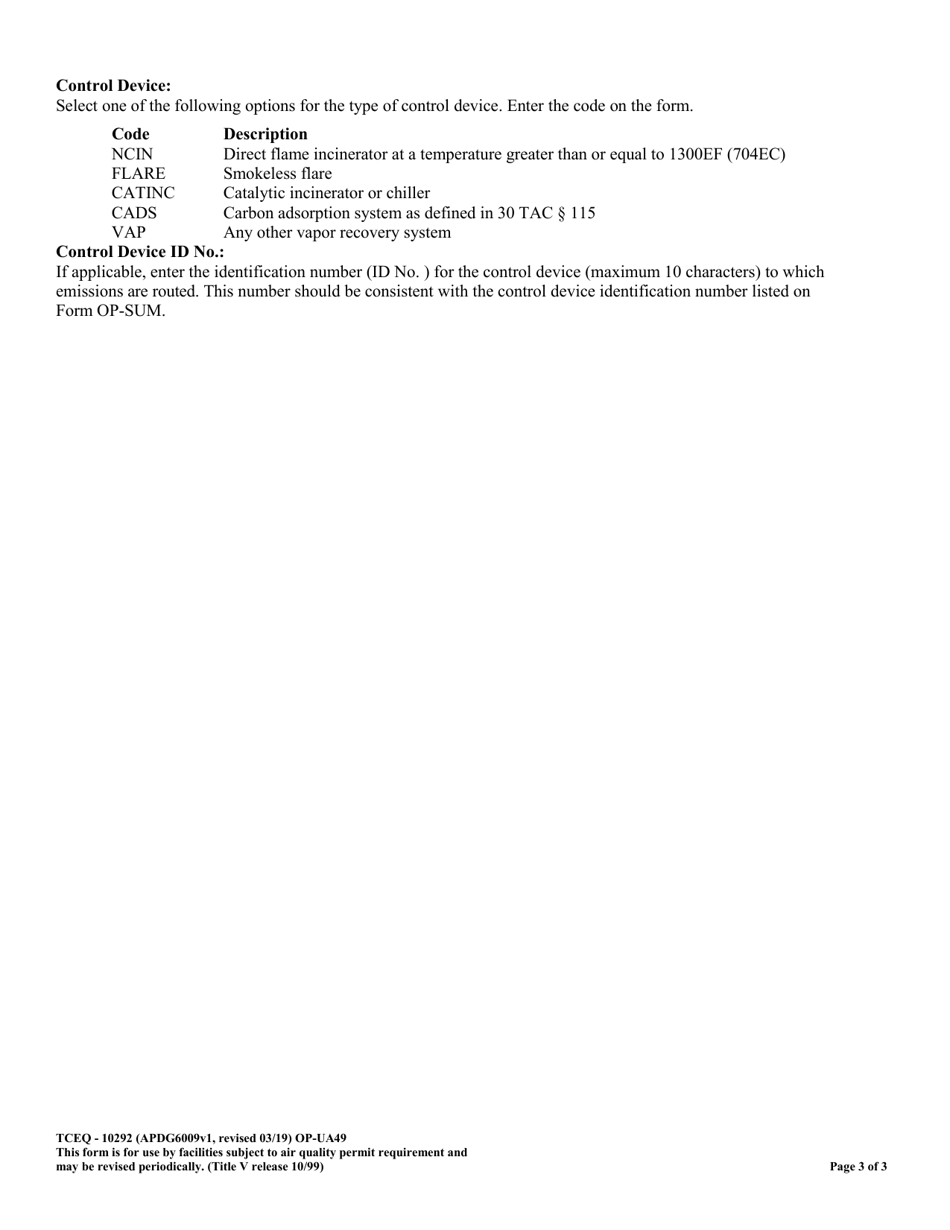

Control Device:
Select one of the following options for the type of control device. Enter the code on the form.
Code
Description
NCIN
Direct flame incinerator at a temperature greater than or equal to 1300EF (704EC)
FLARE
Smokeless flare
CATINC
Catalytic incinerator or chiller
CADS
Carbon adsorption system as defined in 30 TAC § 115
VAP
Any other vapor recovery system
Control Device ID No.:
If applicable, enter the identification number (ID No. ) for the control device (maximum 10 characters) to which
emissions are routed. This number should be consistent with the control device identification number listed on
Form OP-SUM.
TCEQ - 10292 (APDG6009v1, revised 03/19) OP-UA49
This form is for use by facilities subject to air quality permit requirement and
may be revised periodically. (Title V release 10/99)
Page 3 of 3

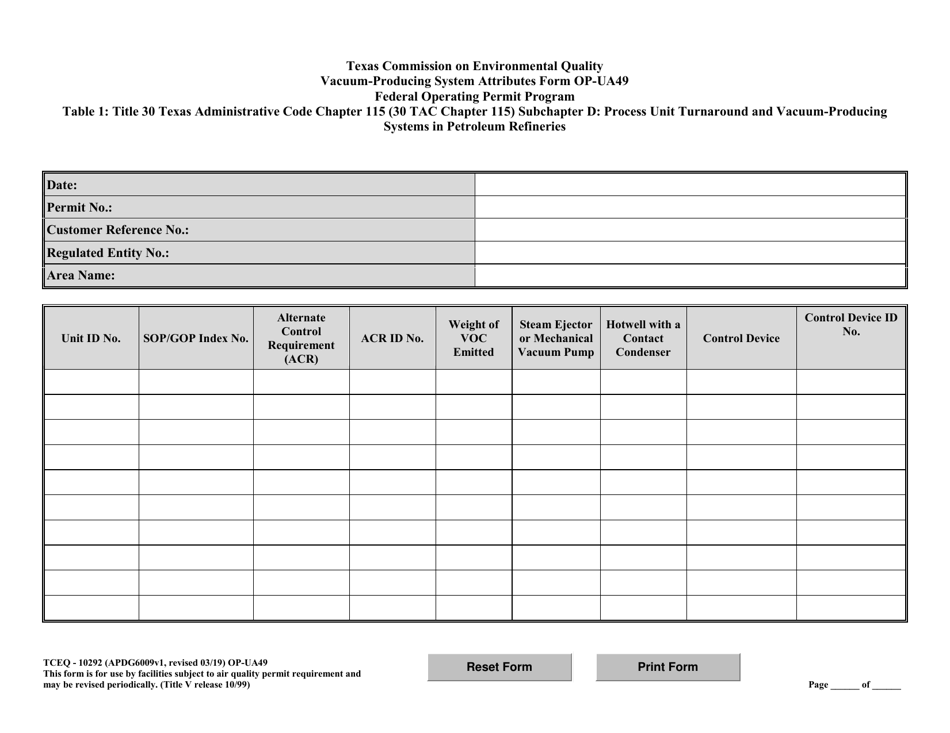

Texas Commission on Environmental Quality
Vacuum-Producing System Attributes Form OP-UA49
Federal Operating Permit Program
Table 1: Title 30 Texas Administrative Code Chapter 115 (30 TAC Chapter 115) Subchapter D: Process Unit Turnaround and Vacuum-Producing
Systems in Petroleum Refineries
Date:
Permit No.:
Customer Reference No.:
Regulated Entity No.:
Area Name:
Alternate
Control Device ID
Weight of
Steam Ejector
Hotwell with a
Control
No.
Unit ID No.
SOP/GOP Index No.
ACR ID No.
VOC
or Mechanical
Contact
Control Device
Requirement
Emitted
Vacuum Pump
Condenser
(ACR)
TCEQ - 10292 (APDG6009v1, revised 03/19) OP-UA49
Reset Form
Print Form
This form is for use by facilities subject to air quality permit requirement and
may be revised periodically. (Title V release 10/99)
Page ______ of ______
